Chevy Truck
>>
1995
>>
Lumina APV V6-191 3.1L VIN D TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition Controls
Ignition Controls

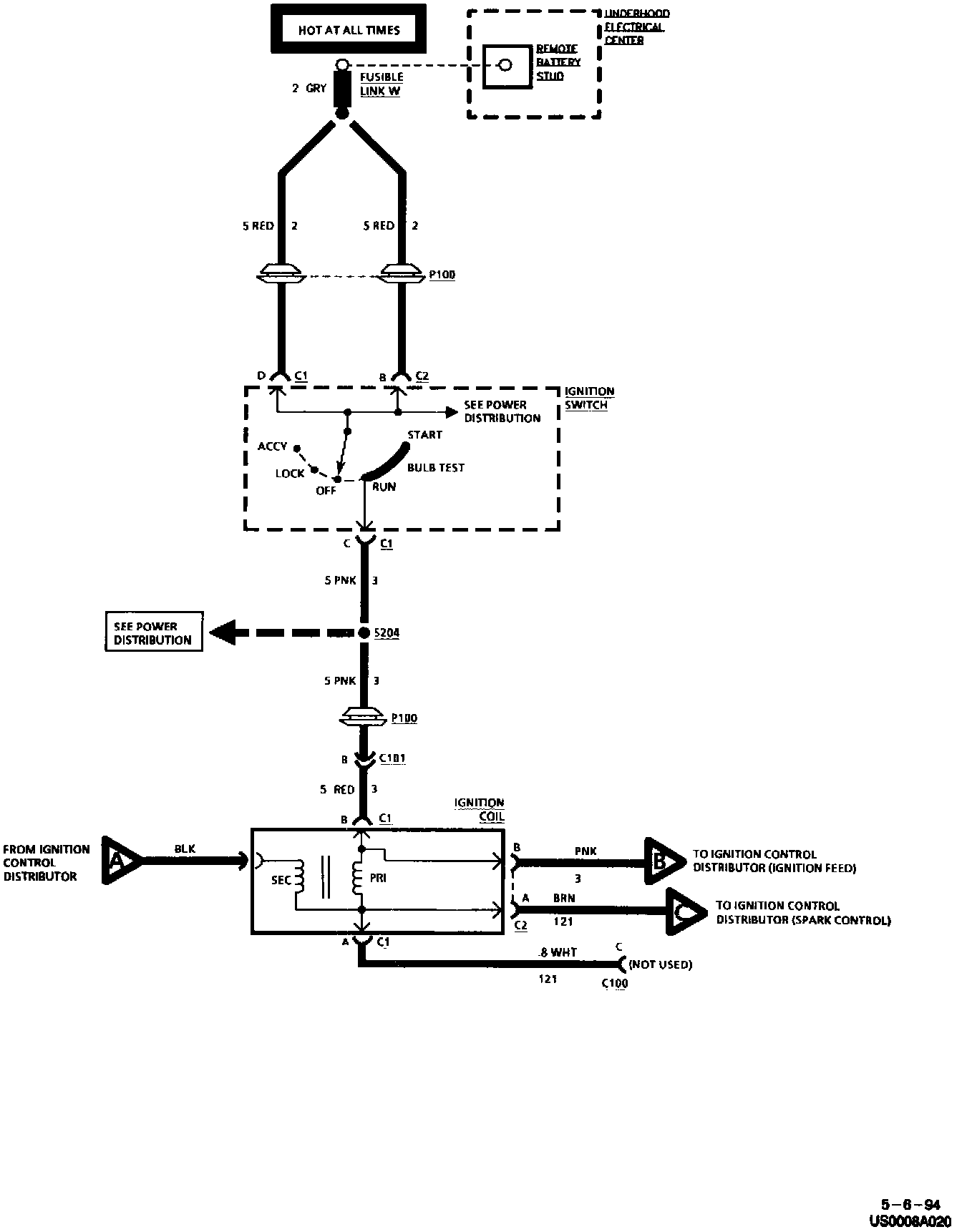

Power, Ground And Ignition (Part 1 Of 2):
Power, Ground And Ignition (Part 2 Of 2):
