Home
>>
Chevy Truck
>>
1995
>>
Lumina APV V6-191 3.1L VIN D TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Controls
Transmission Controls

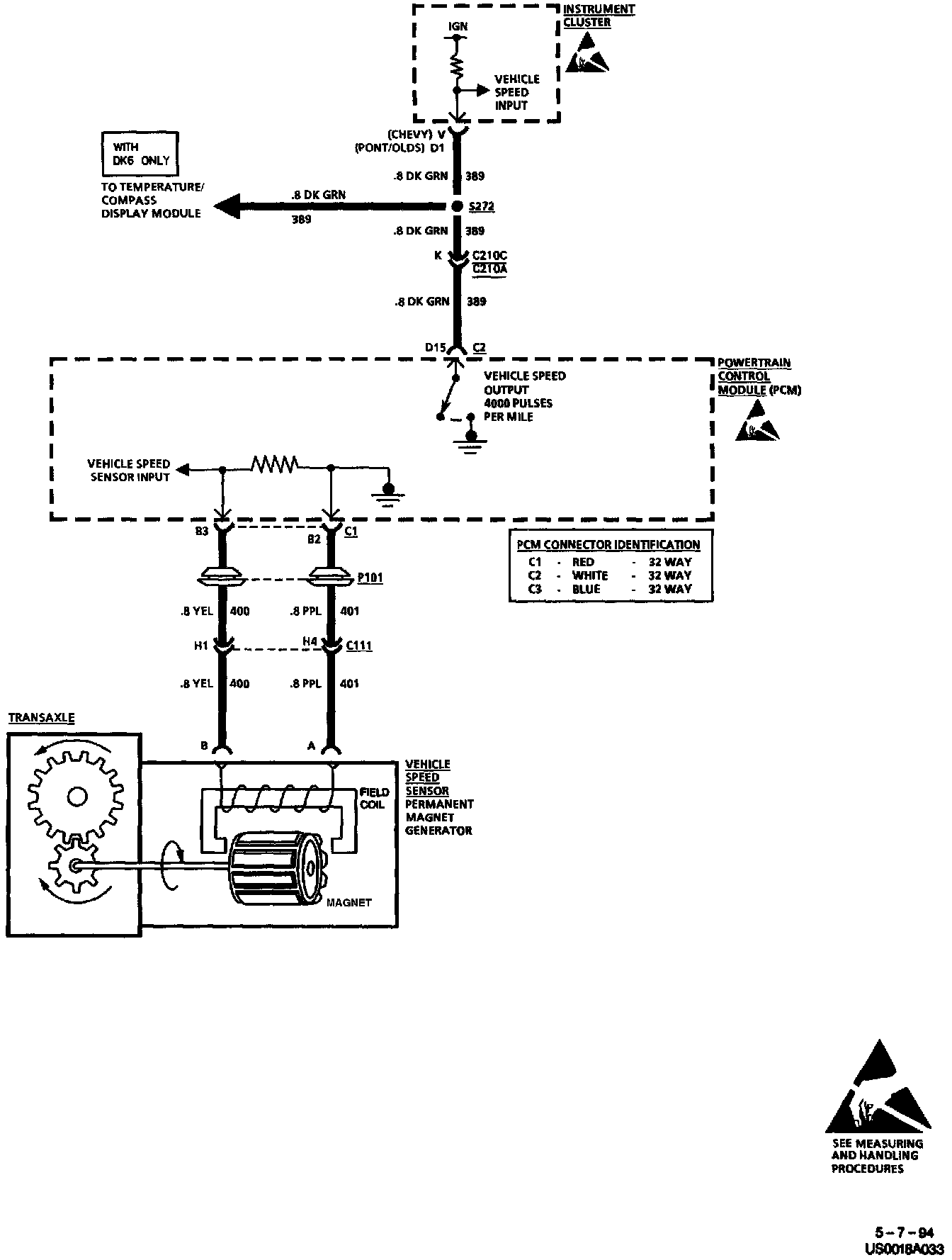

Vehicle Speed Sensor:
Vehicle Speed Sensor:
