Chart 6 Sliding Door Lock Motor Inoperative
Chart 6 Sliding Door Lock Motor Inoperative

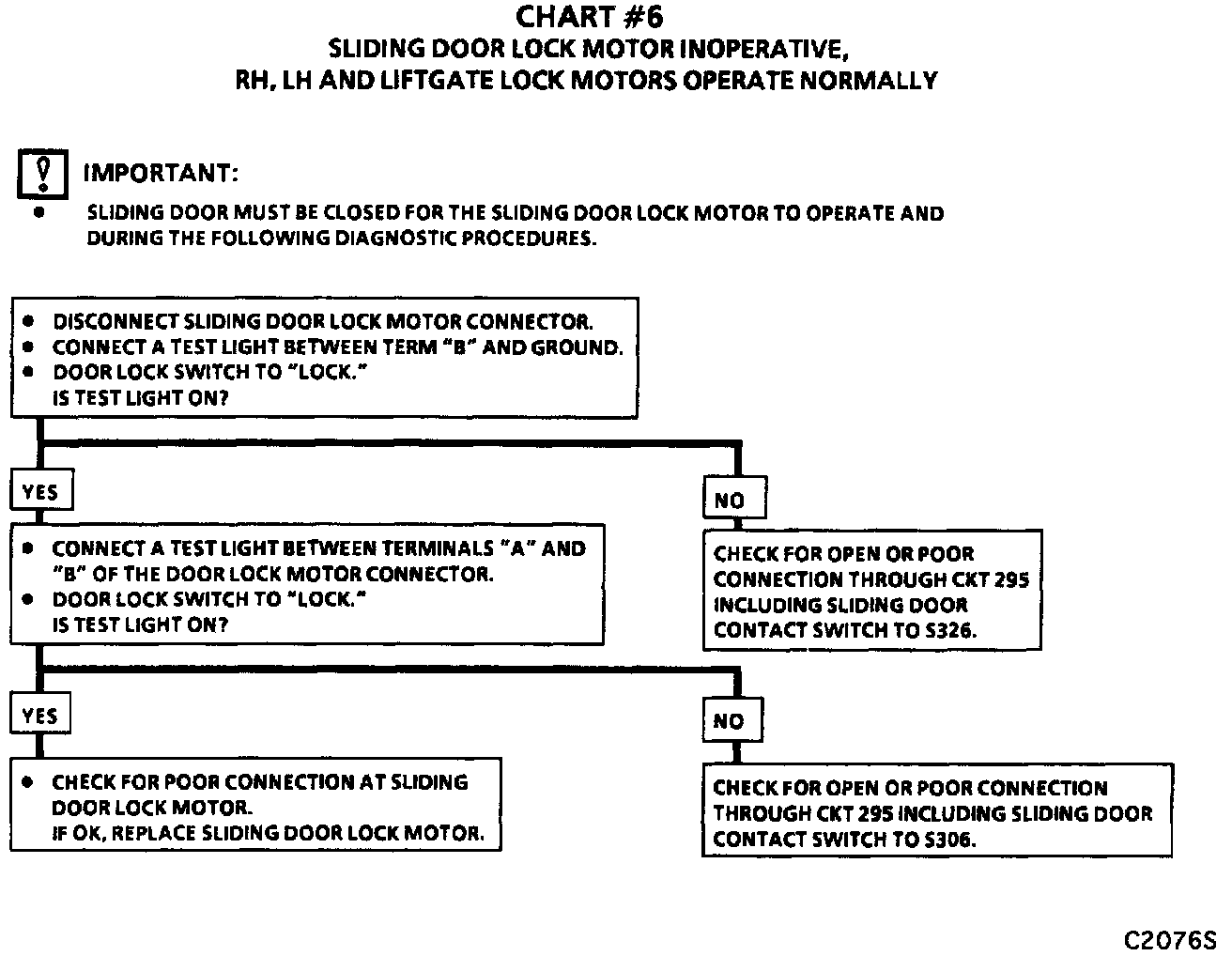

Chart #6 Sliding Door Lock Motor Inoperative, RH, LH And Liftgate Lock Motors Operate Normally:
