Chevy Truck
>>
1995
>>
Lumina APV V6-3800 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Control Module
>>
Engine Wiring Harn to Ign Control (IC) Wiring Harn
Engine Wiring Harn to Ign Control (IC) Wiring Harn

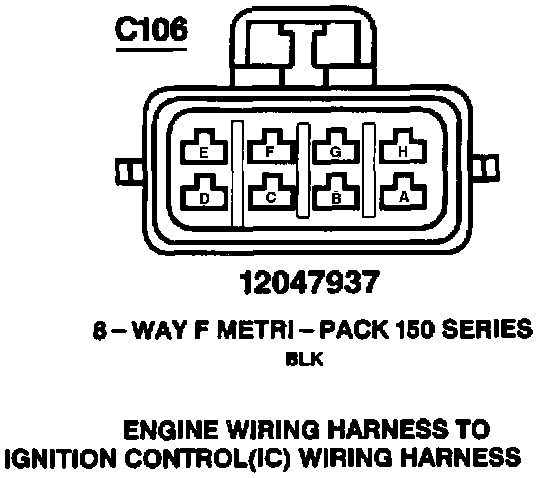

C106: Engine Wiring Harness To Ignition Control (IC) Wiring Harness:
