Home >> Chevy Truck >> 1995 >> Lumina APV V6-3800 3.8L VIN L SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Without A/C

Without A/C

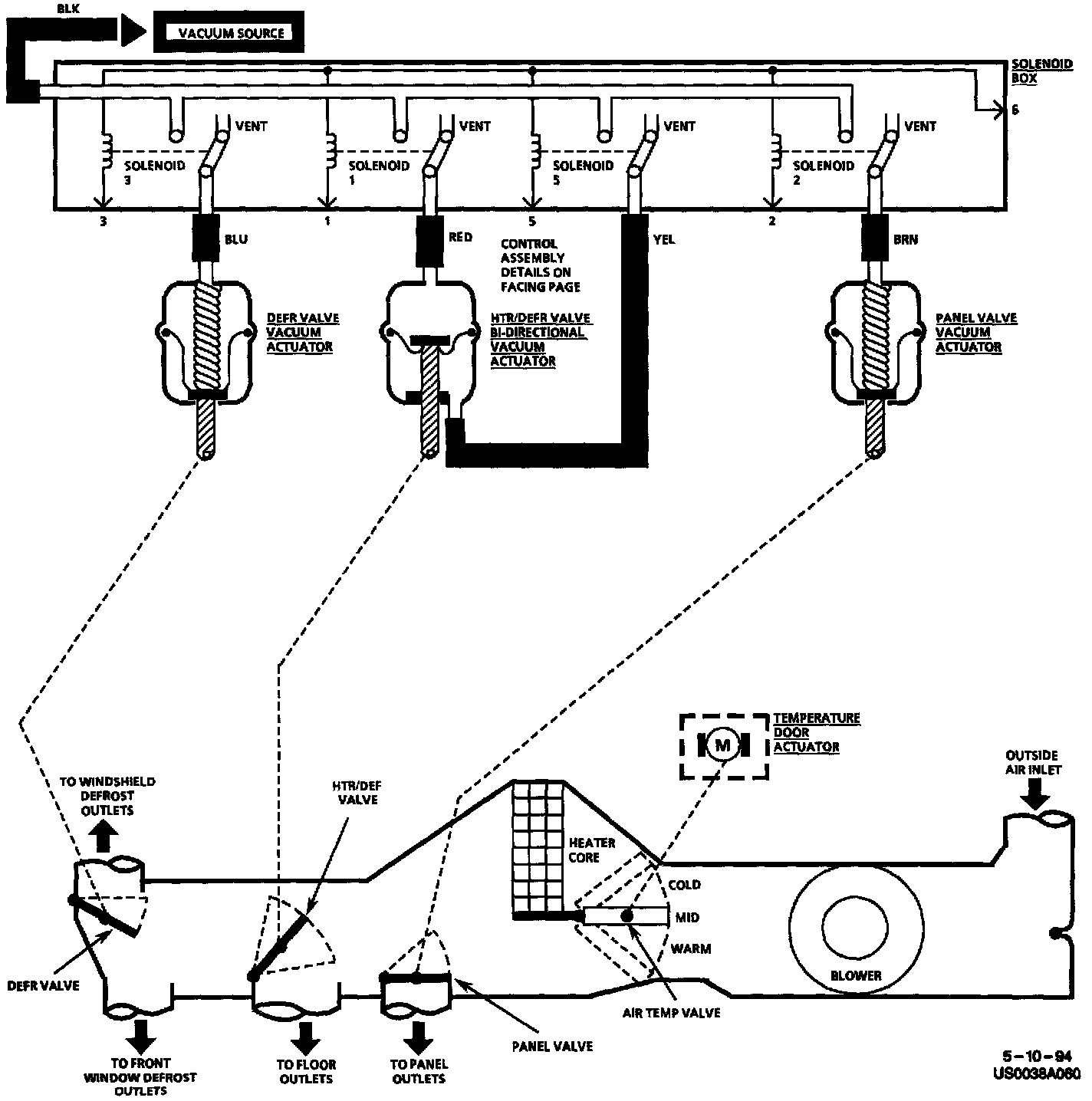

Air Delivery And Temperature Control (C40) (Part 2 Of 2):
