I/P Wiring Harness to Engine Wiring Harness
I/P Wiring Harness to Engine Wiring Harness
C100: I/P Wiring Harness To Engine Wiring Harness:

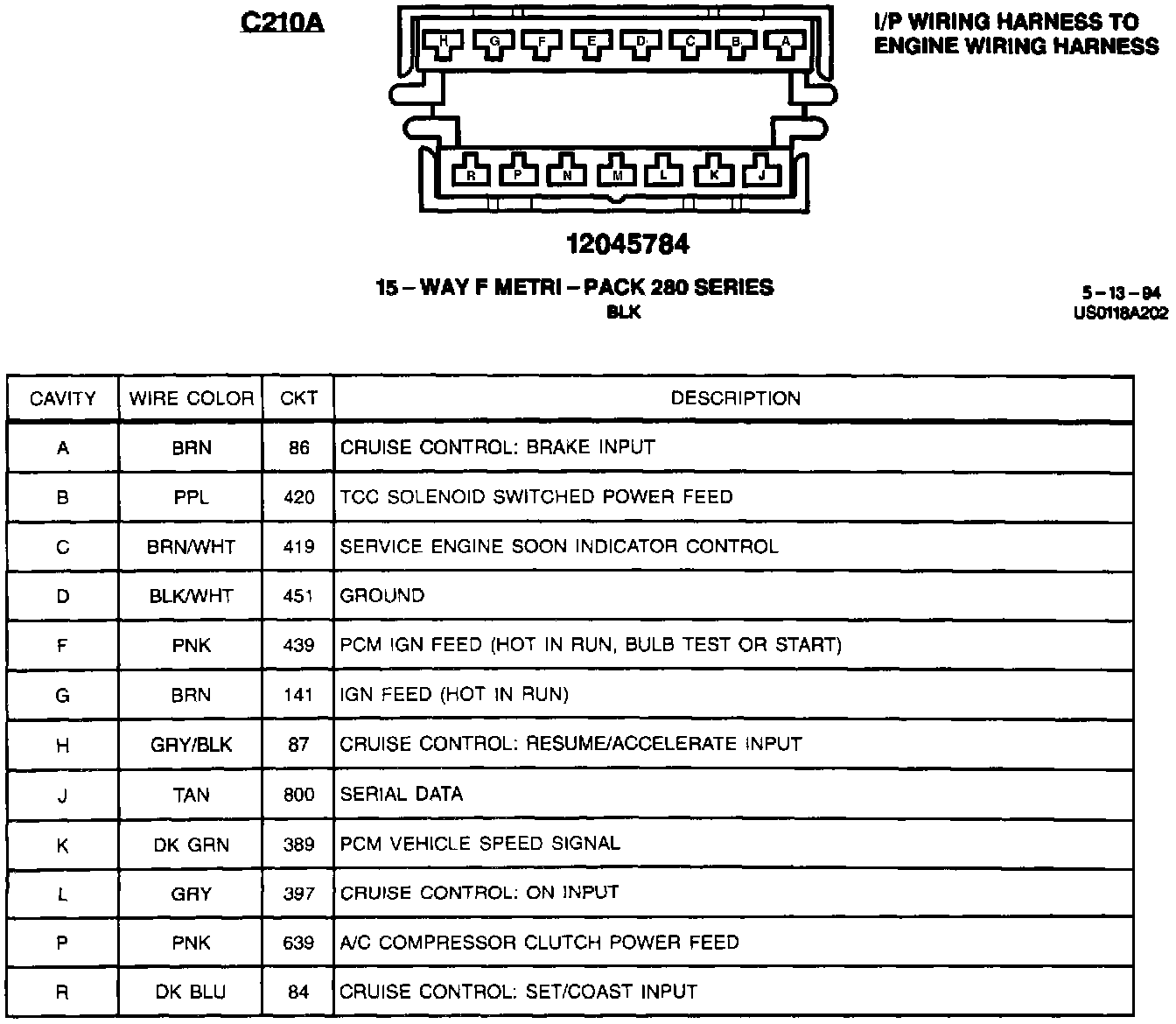

C210A: I/P Wiring Harness To Engine Wiring Harness:
