Home >> Chevy Truck >> 1995 >> Lumina APV V6-3800 3.8L VIN L SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Connector Views >> I/P Wiring Harness to Steering Column Wiring Harness

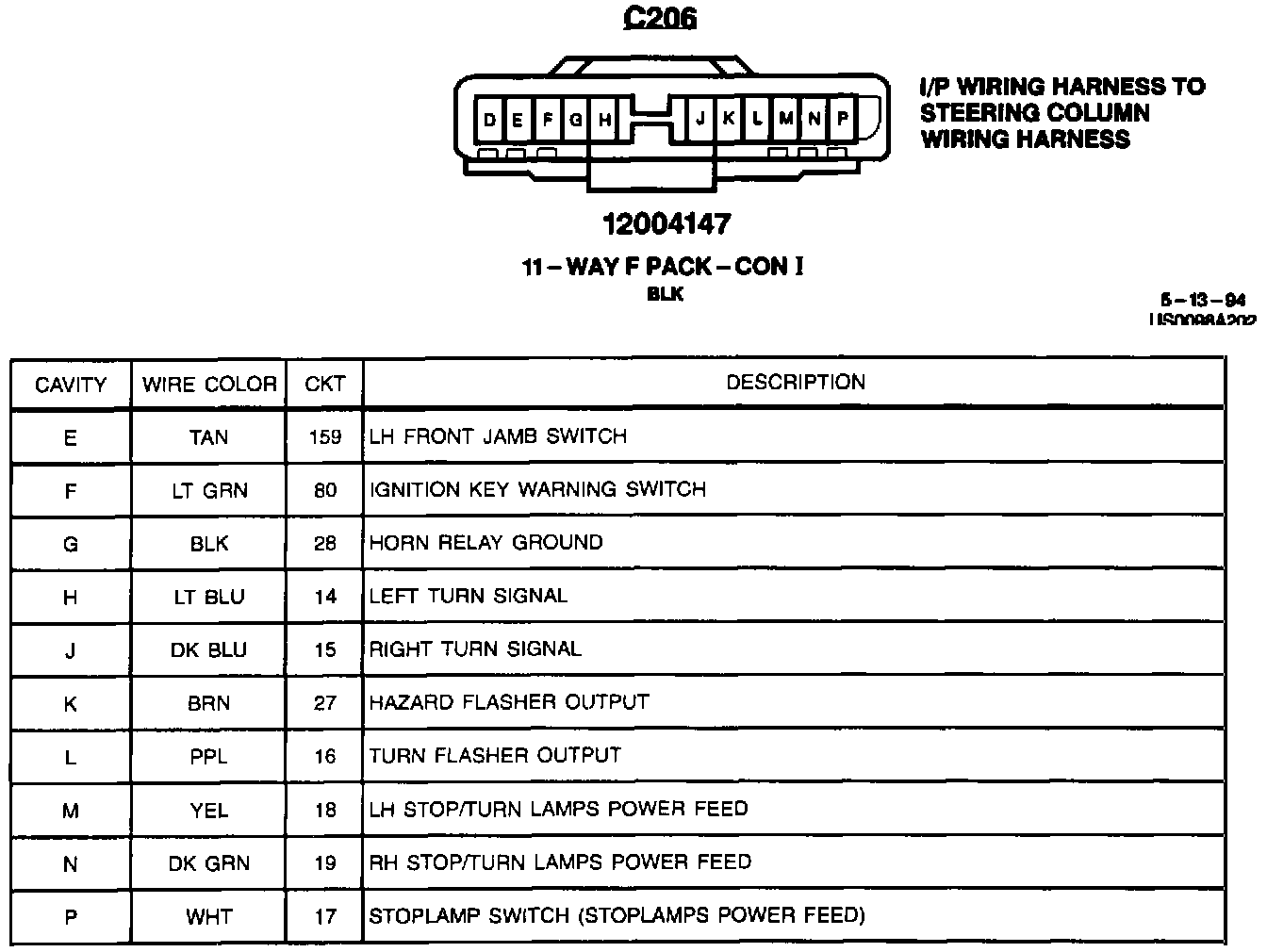

I/P Wiring Harness to Steering Column Wiring Harness

C206: I/P Wiring Harness To Steering Column Wiring Harness:
