Lumina APV V6-3800 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

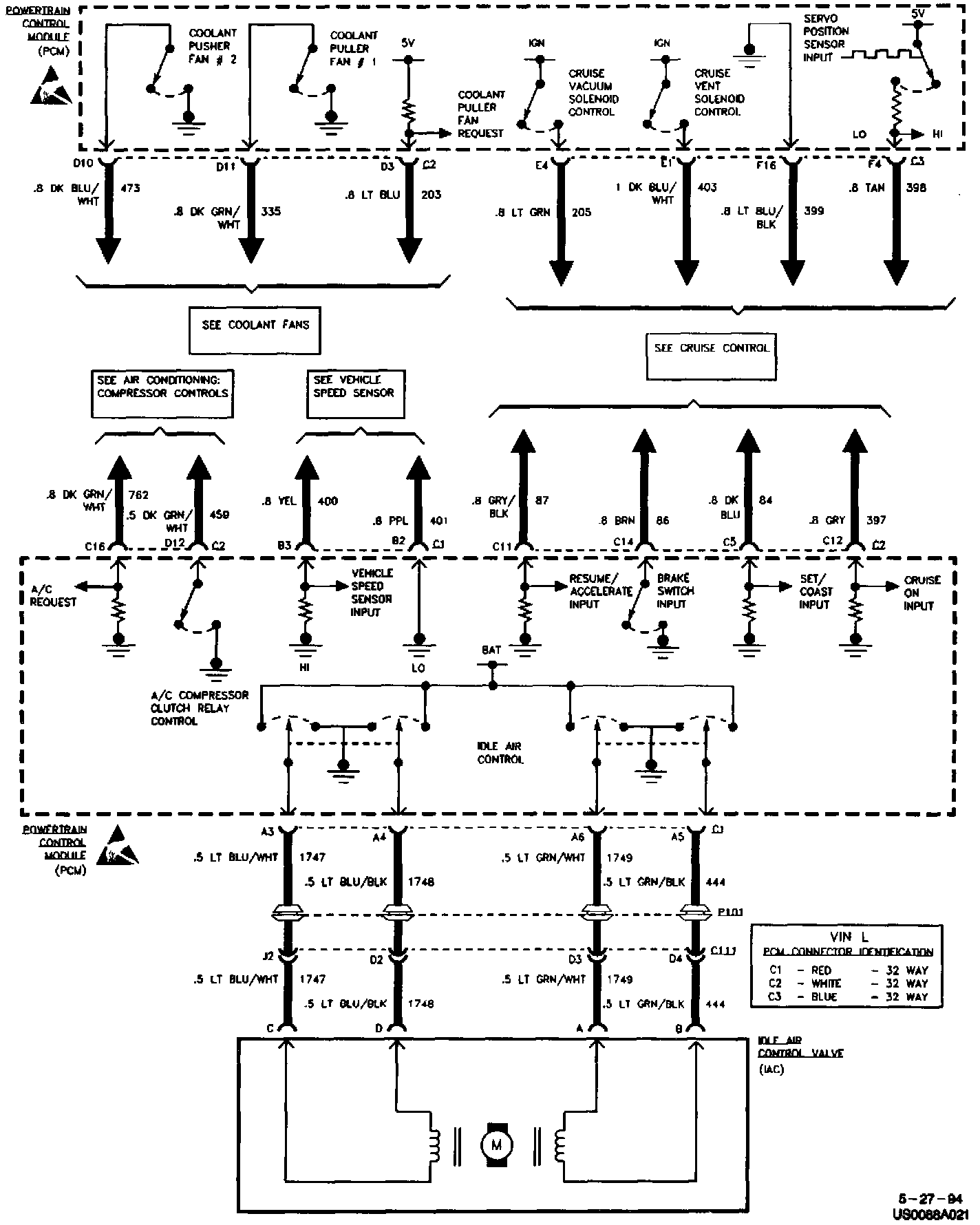

A/C, Coolant Fan, Cruise & Idle Air Control
A/C, Coolant Fan, Cruise & Idle Air Control
A/C, Coolant Fan, Cruise And Idle Air Control:
