A/T & Generator

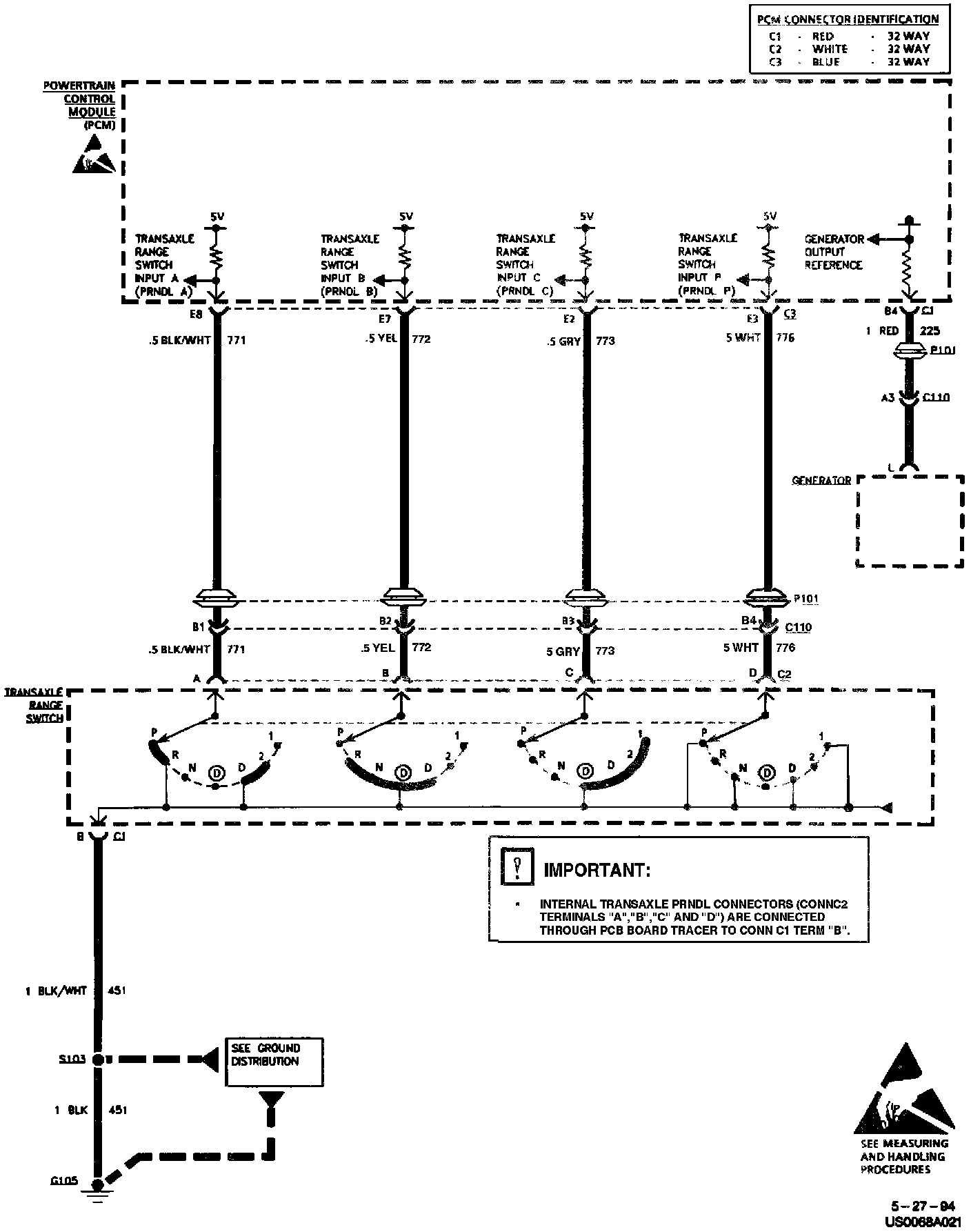

Automatic Transaxle And Generator (Part 1 Of 2):



Automatic Transaxle And Generator (Part 2 Of 2):
