Air Cleaner Housing: Service and Repair

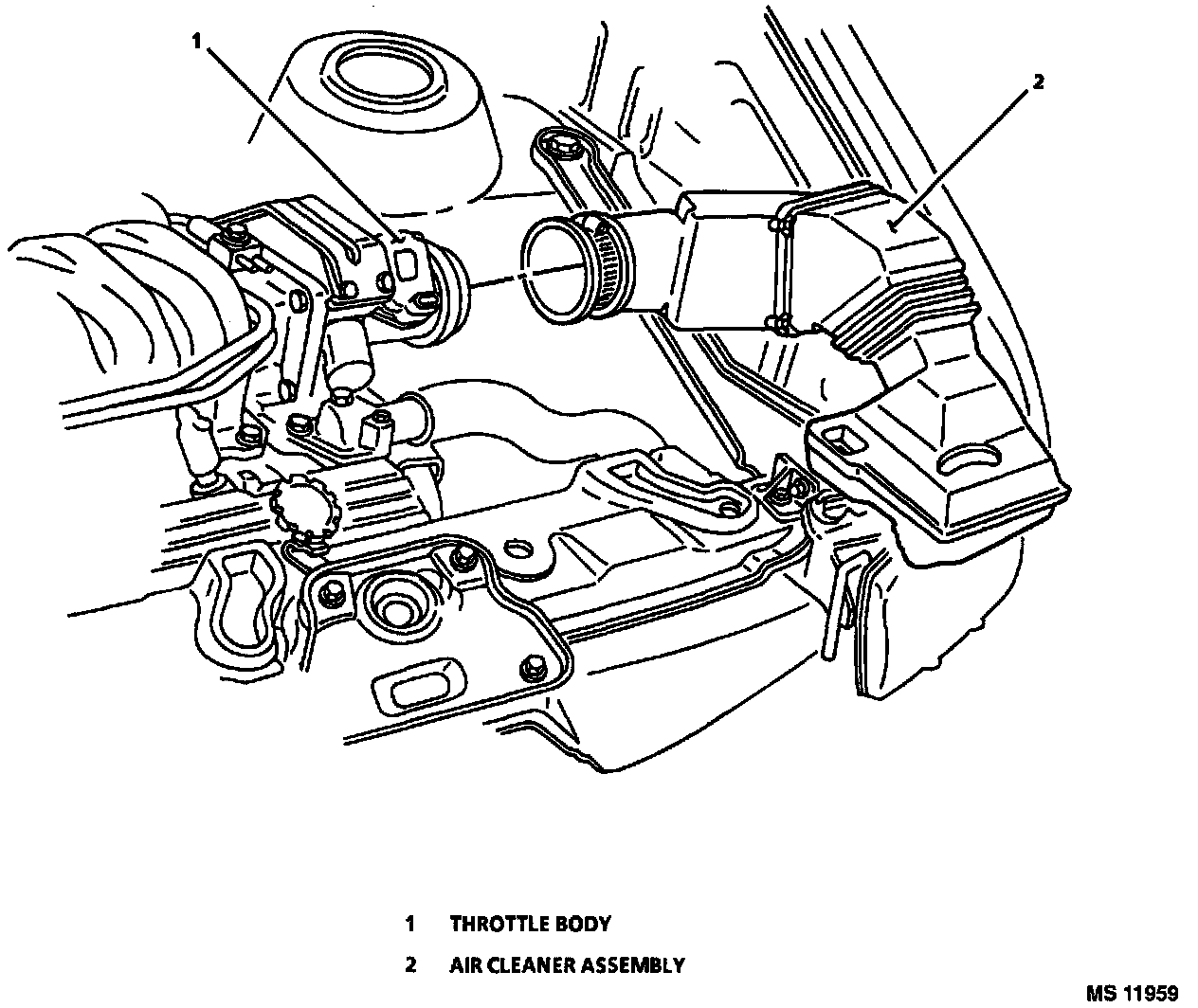

Air Induction System:

CAUTION: When fasteners are removed always reinstall them at the same location from which they were removed. If a fastener needs to be replaced use the correct part number fastener for that application. The correct torque value must be used, as specified, during reassembly to assure proper retention of all parts, or damage to the part may result.

REMOVE OR DISCONNECT
1. Air filter element.
2. Clamp from rear air intake duct.
3. Air cleaner assembly.

INSTALL OR CONNECT
1. Position air cleaner assembly to front intake duct.
2. Clamp rear air intake duct to air cleaner assembly.
3. Air filter element.
4. Air cleaner cover and nut.
