Home >> Chevy Truck >> 1995 >> S10/T10 P/U 4WD V6-262 4.3L VIN W CPI >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

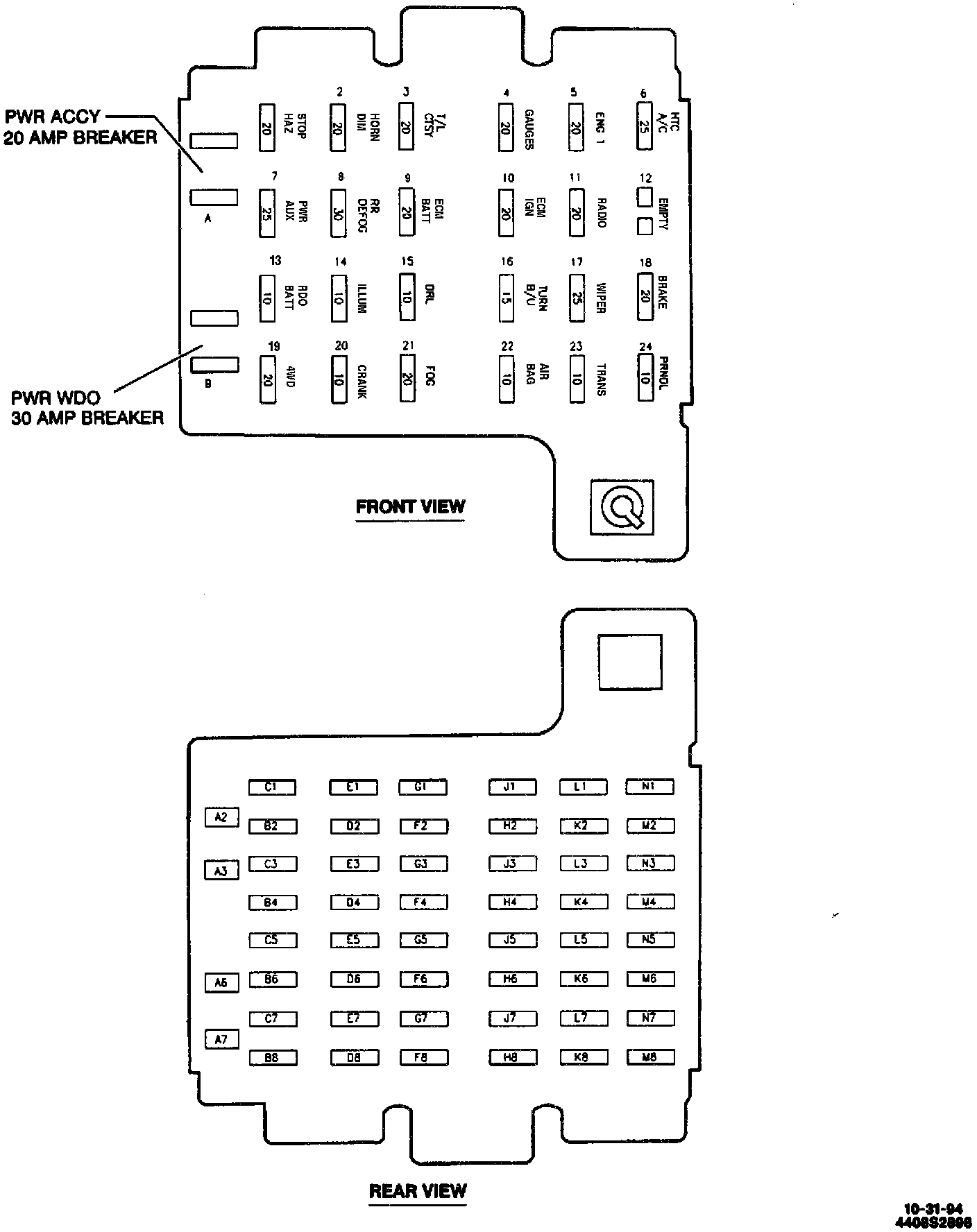

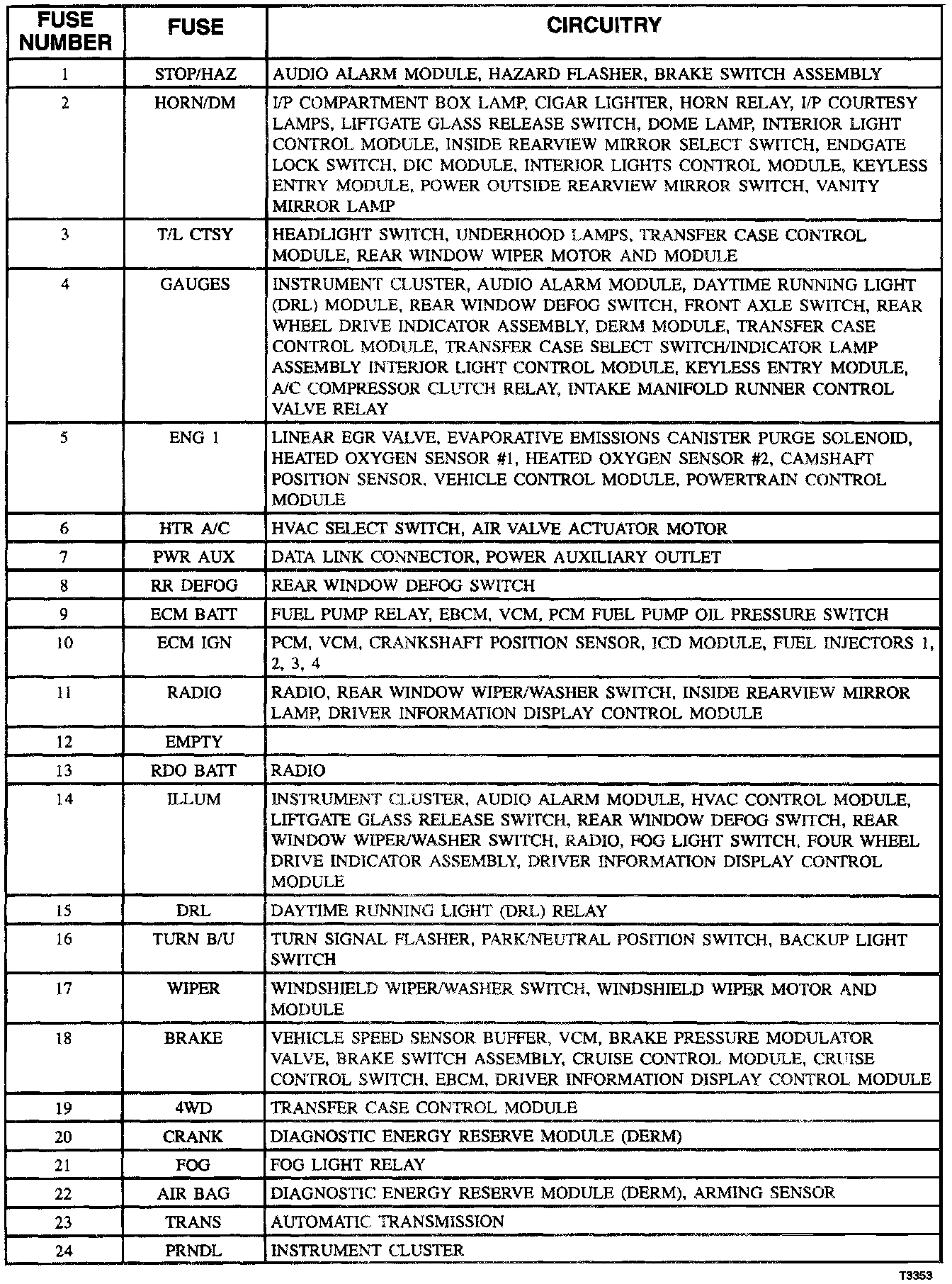

Fuse Block: Application and ID

Fuse Block Details:





Fuse Block Details:
