Service Manual - Master Component Index

File in Section: 8 - Chassis/Body Electrical

Bulletin No.: 56-81-06

Date: December, 1995

SERVICE MANUAL UPDATE

Subject:

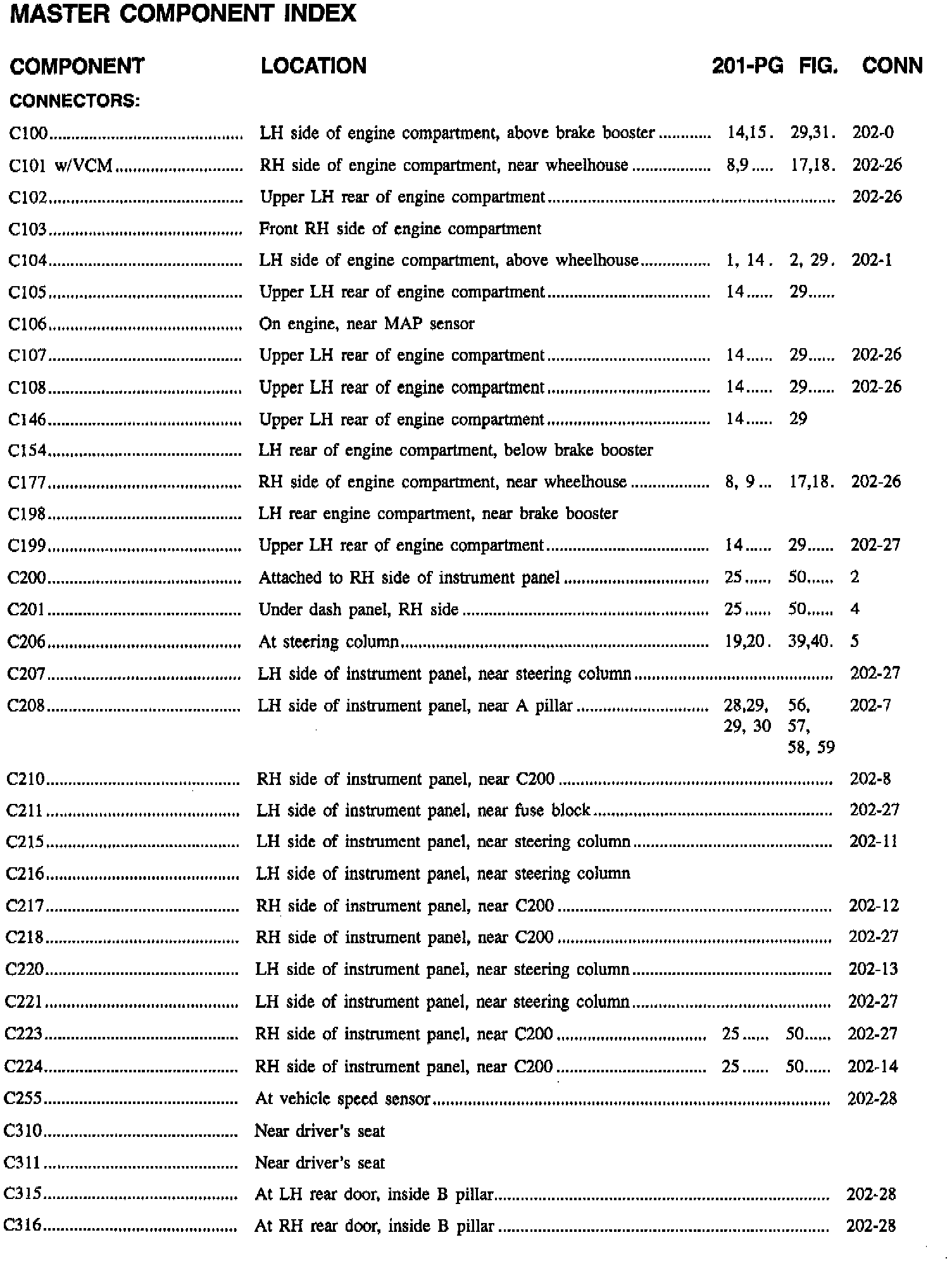

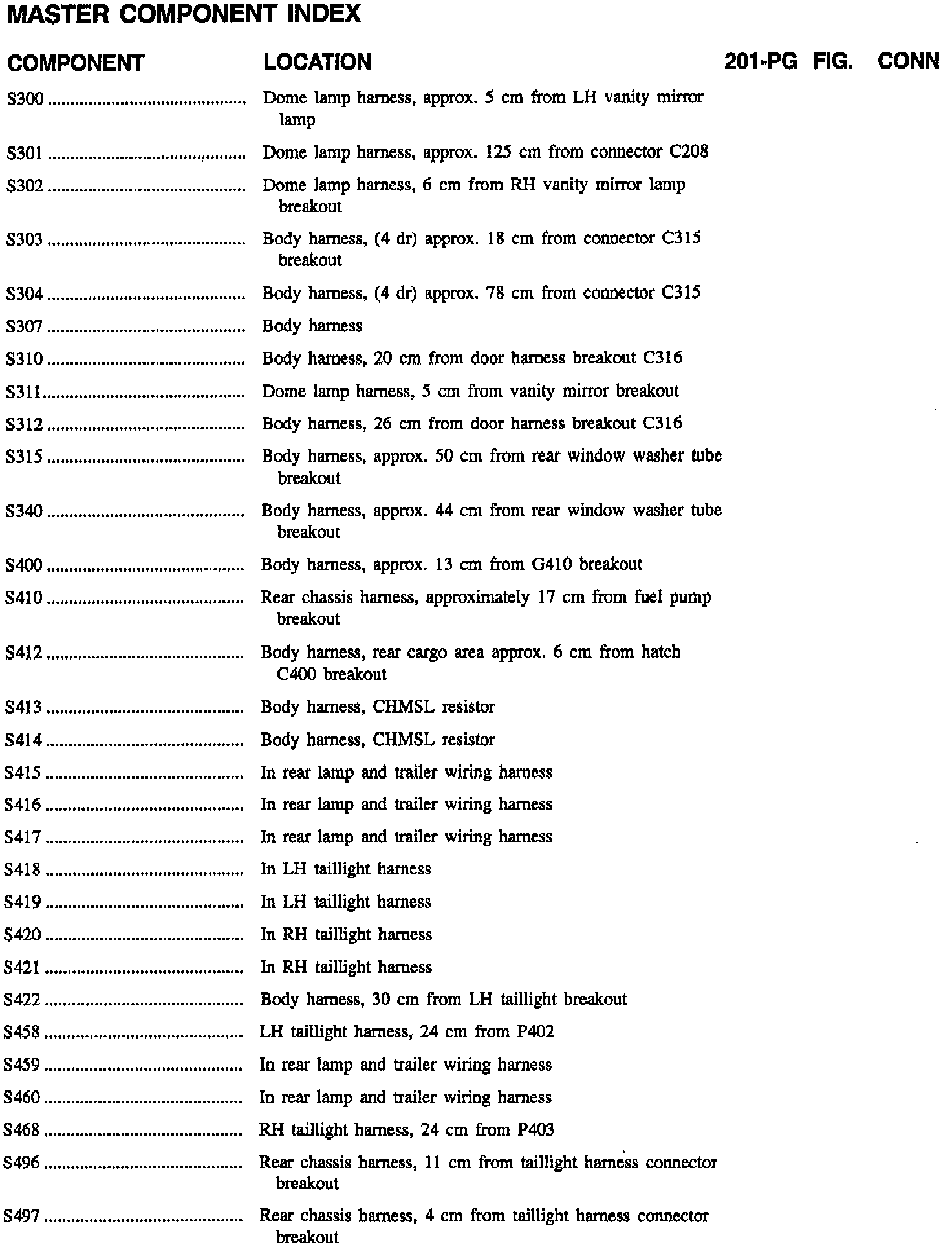

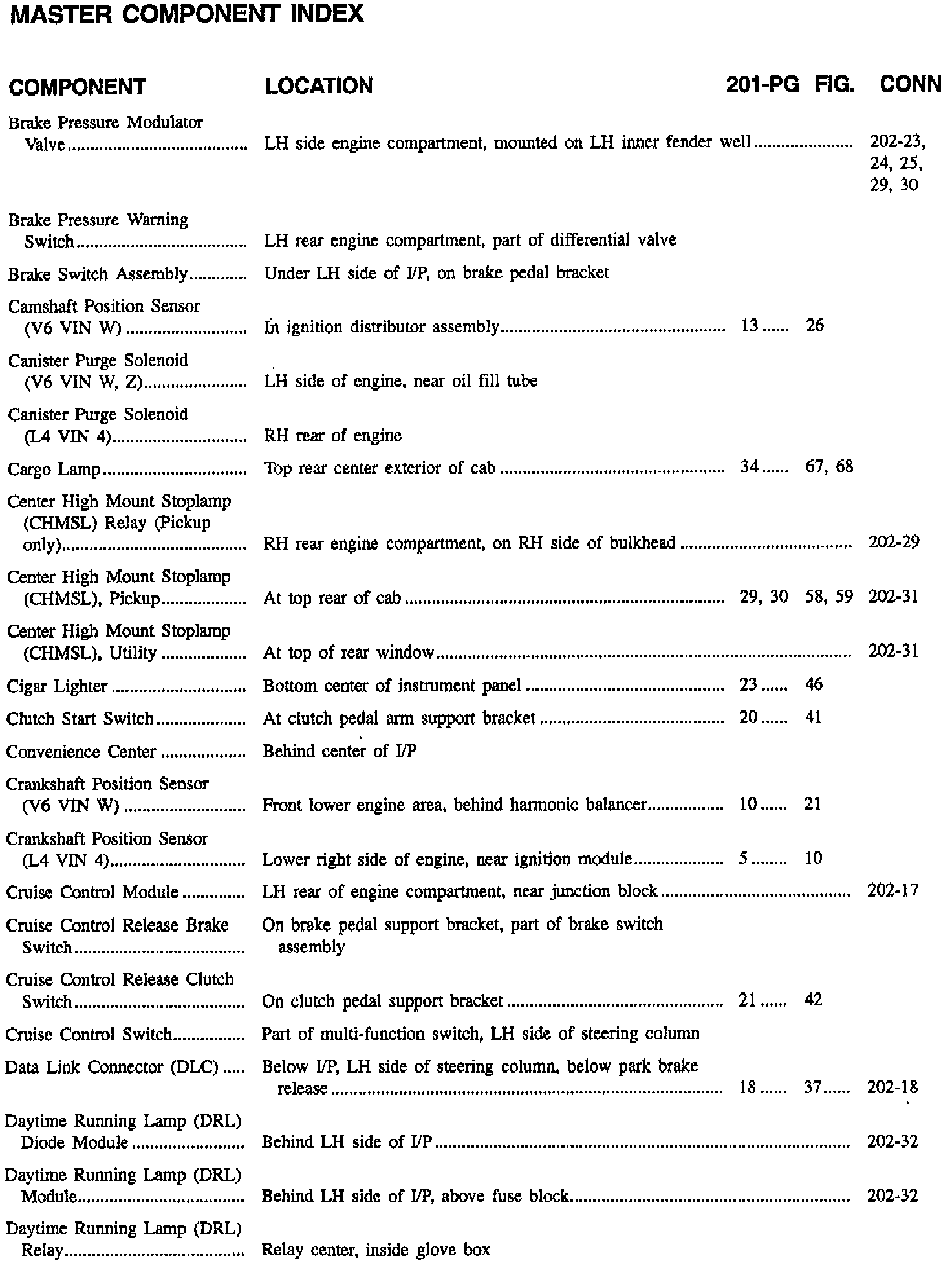

Section 8A-2OO - Master Component Index

Models:
1995 Chevrolet and GMC Truck S/T Models

This bulletin provides Section 8A-200, "Master Component Index," which supersedes all individual section component location tables in the 1995 S/T Service Manual Book 2 Final Edition.

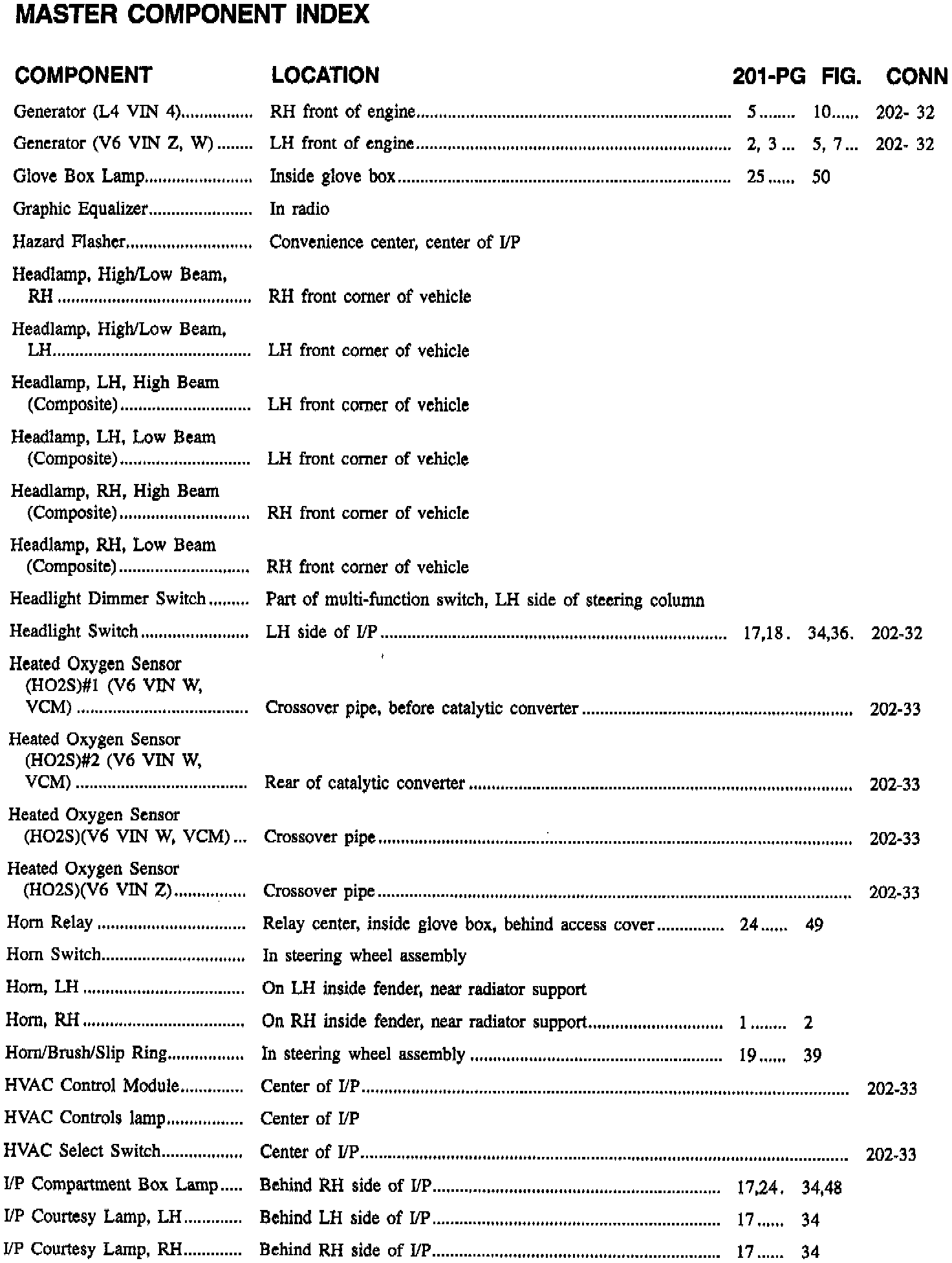

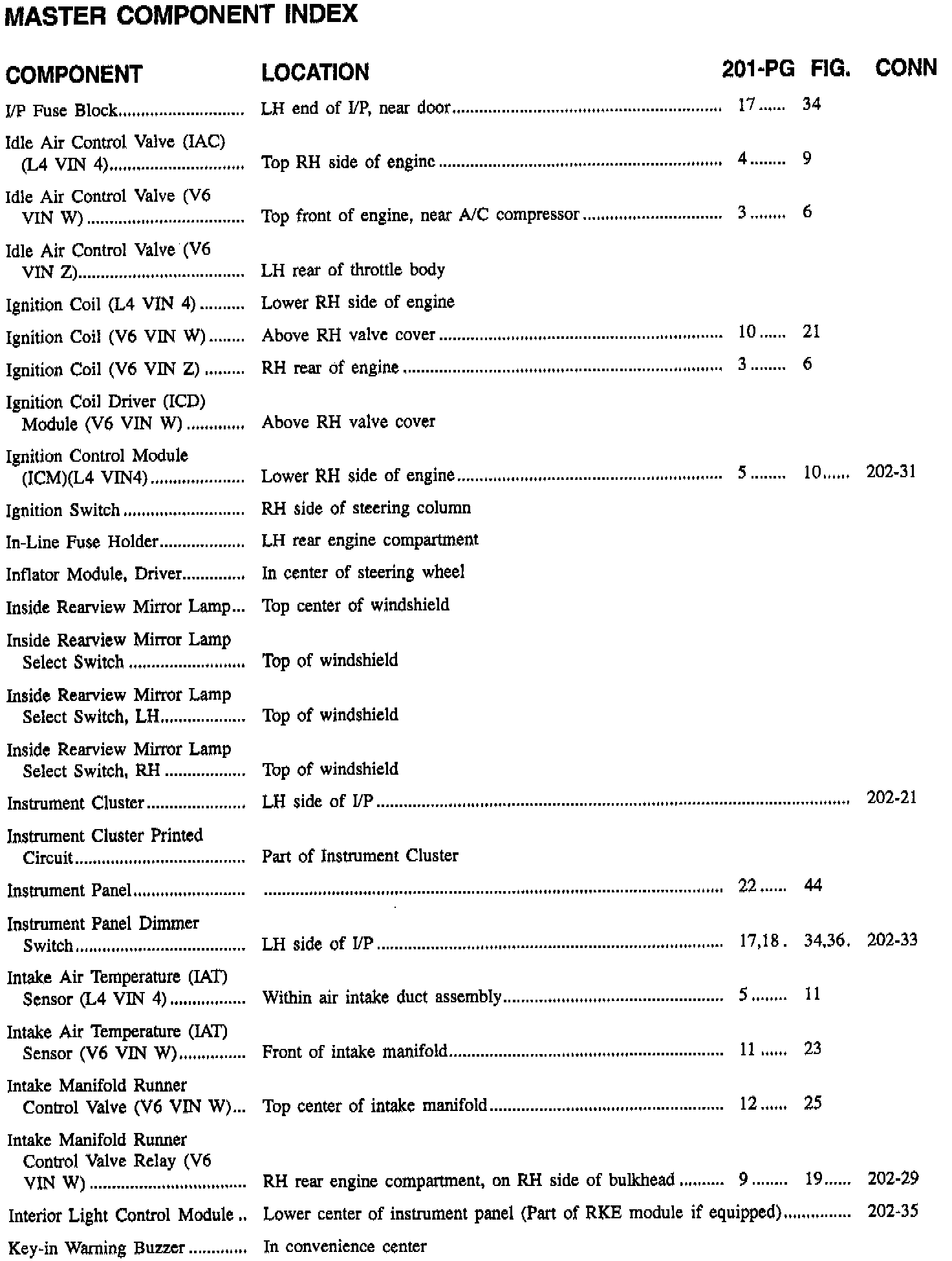

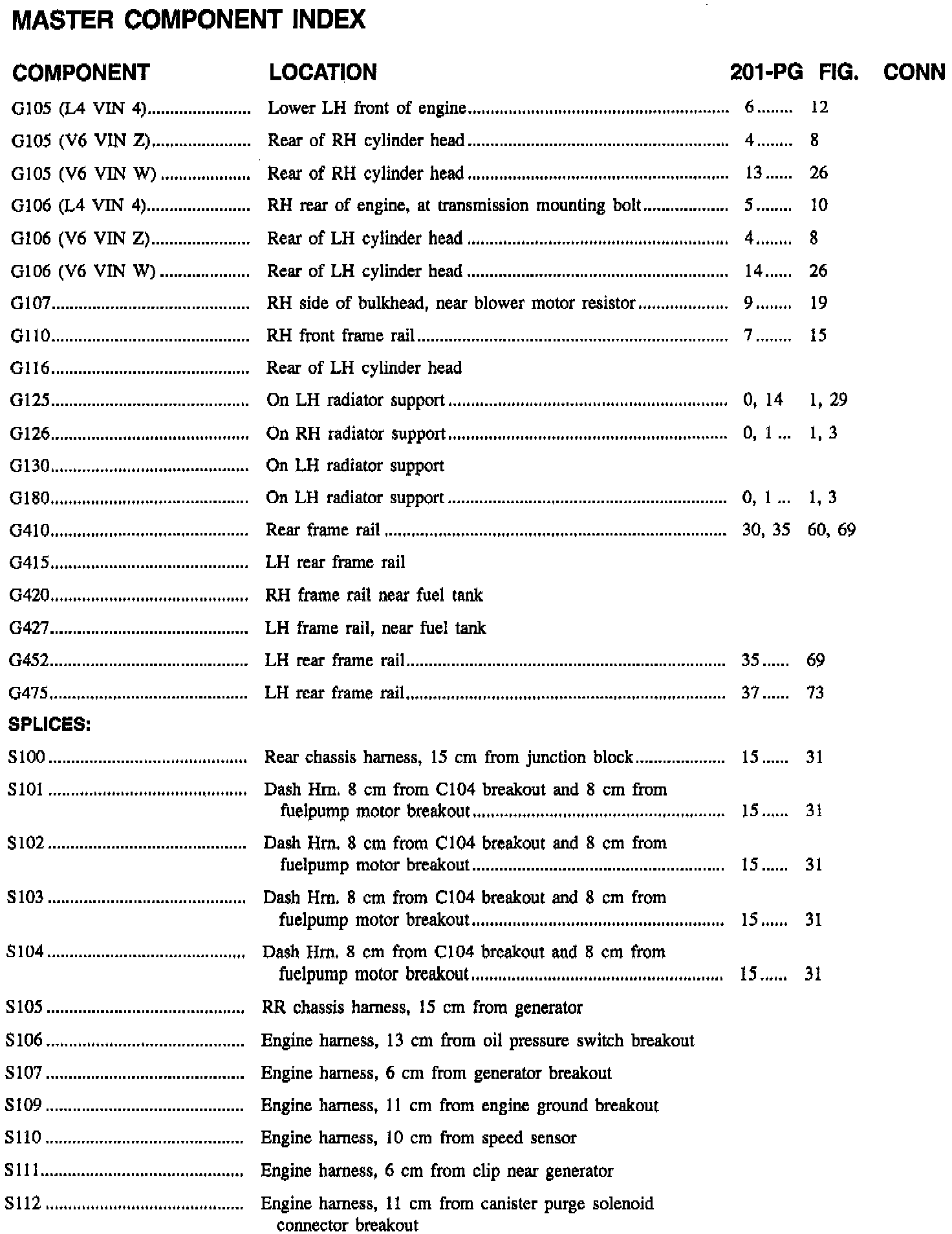

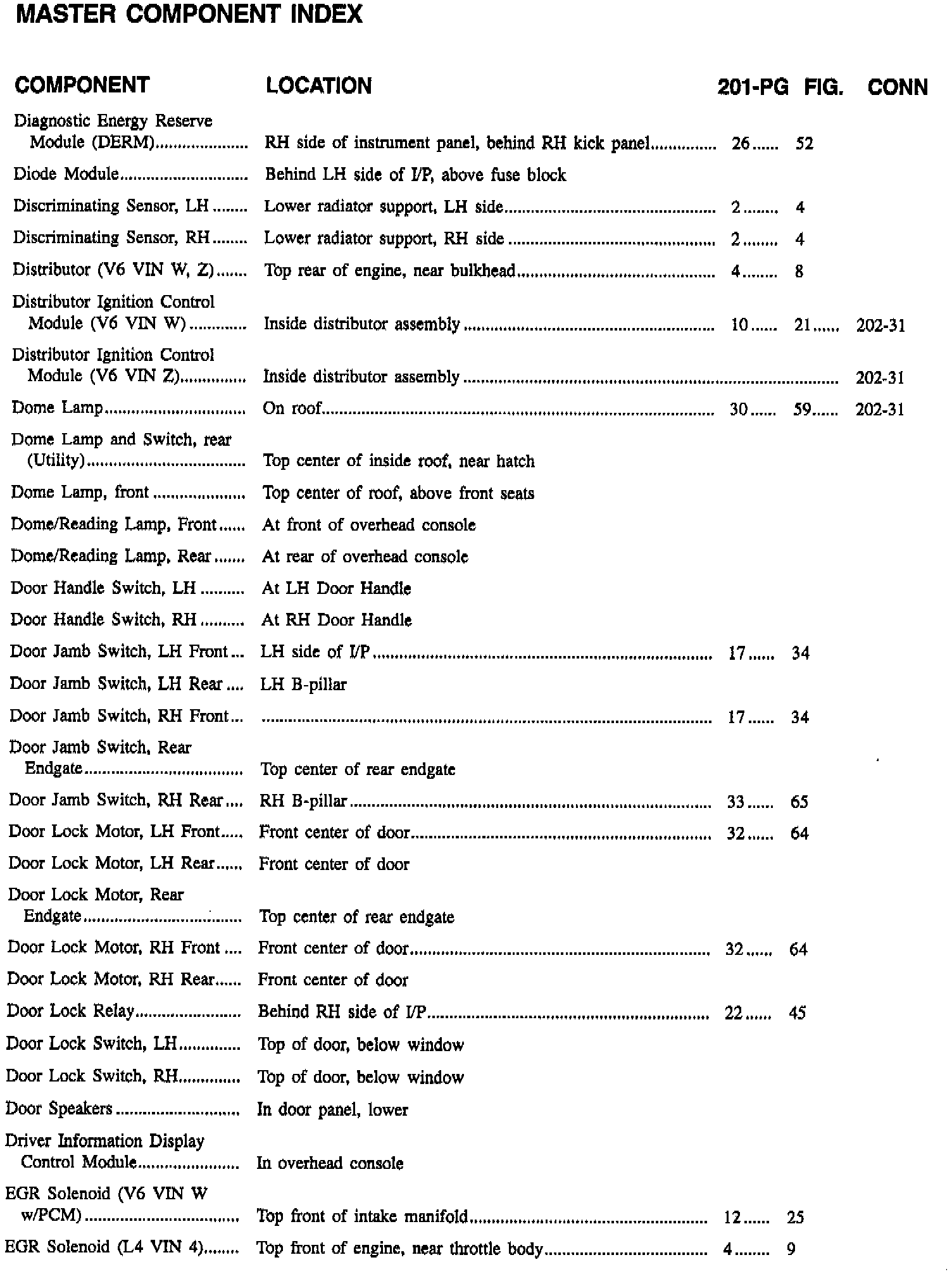

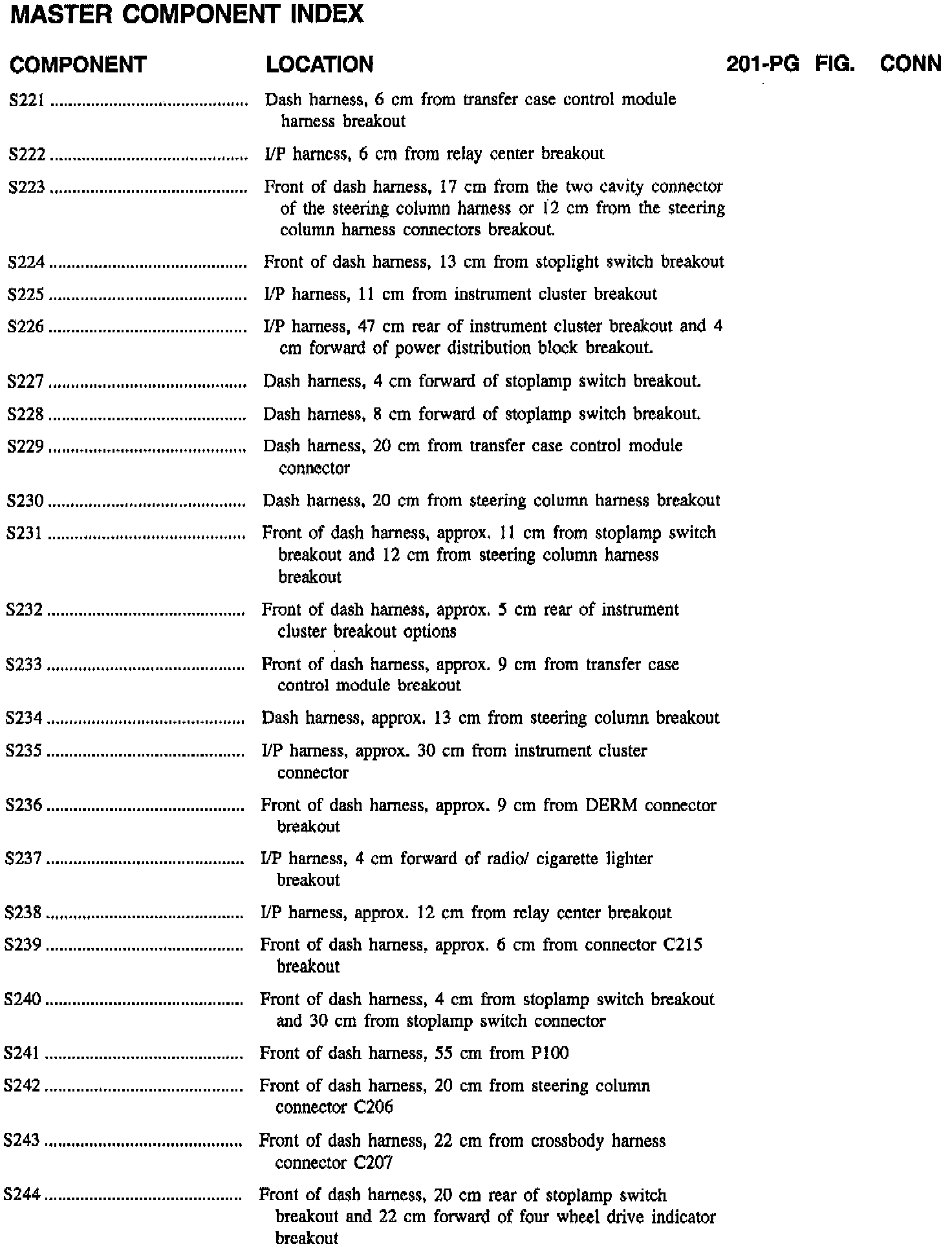

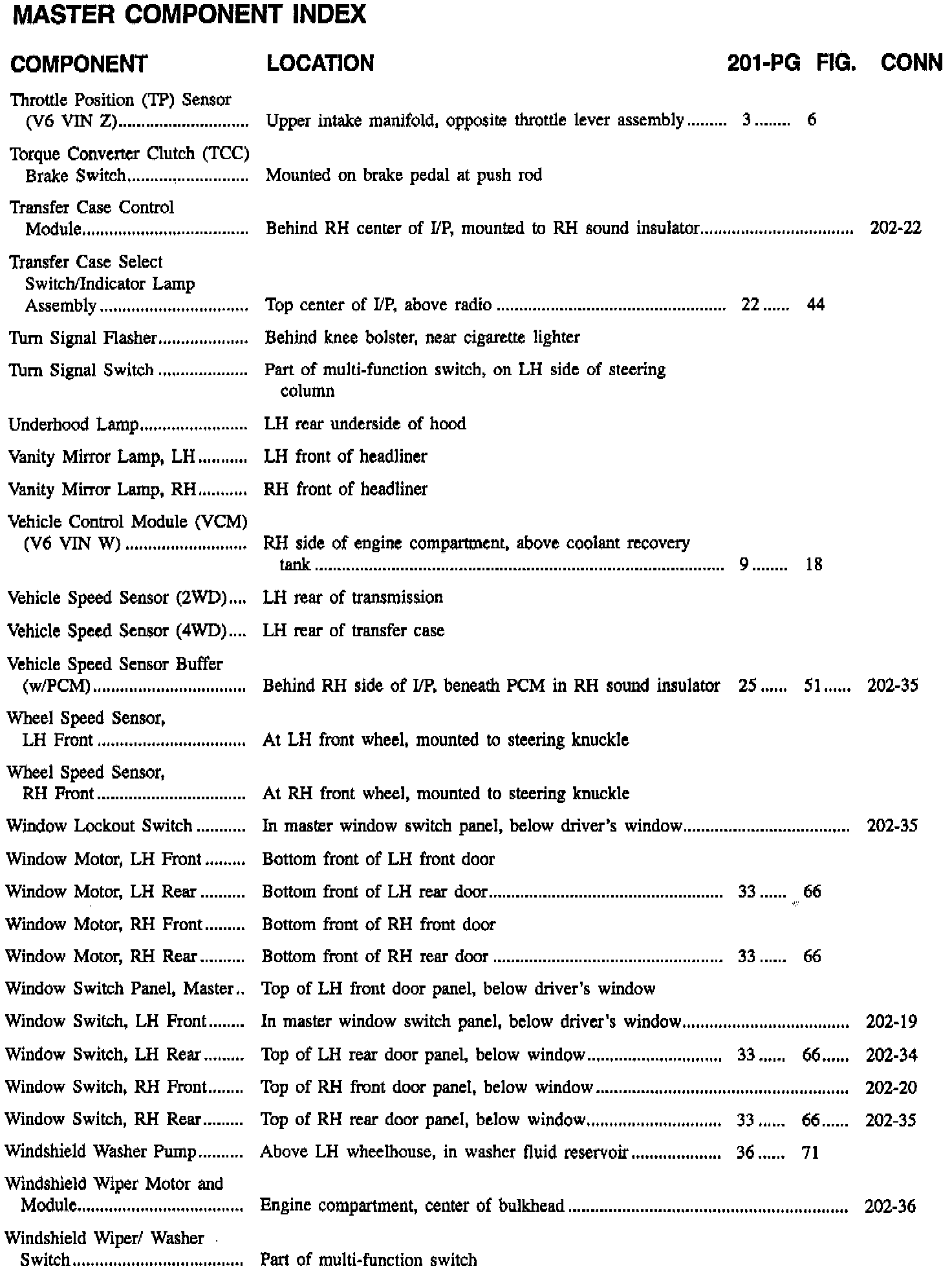

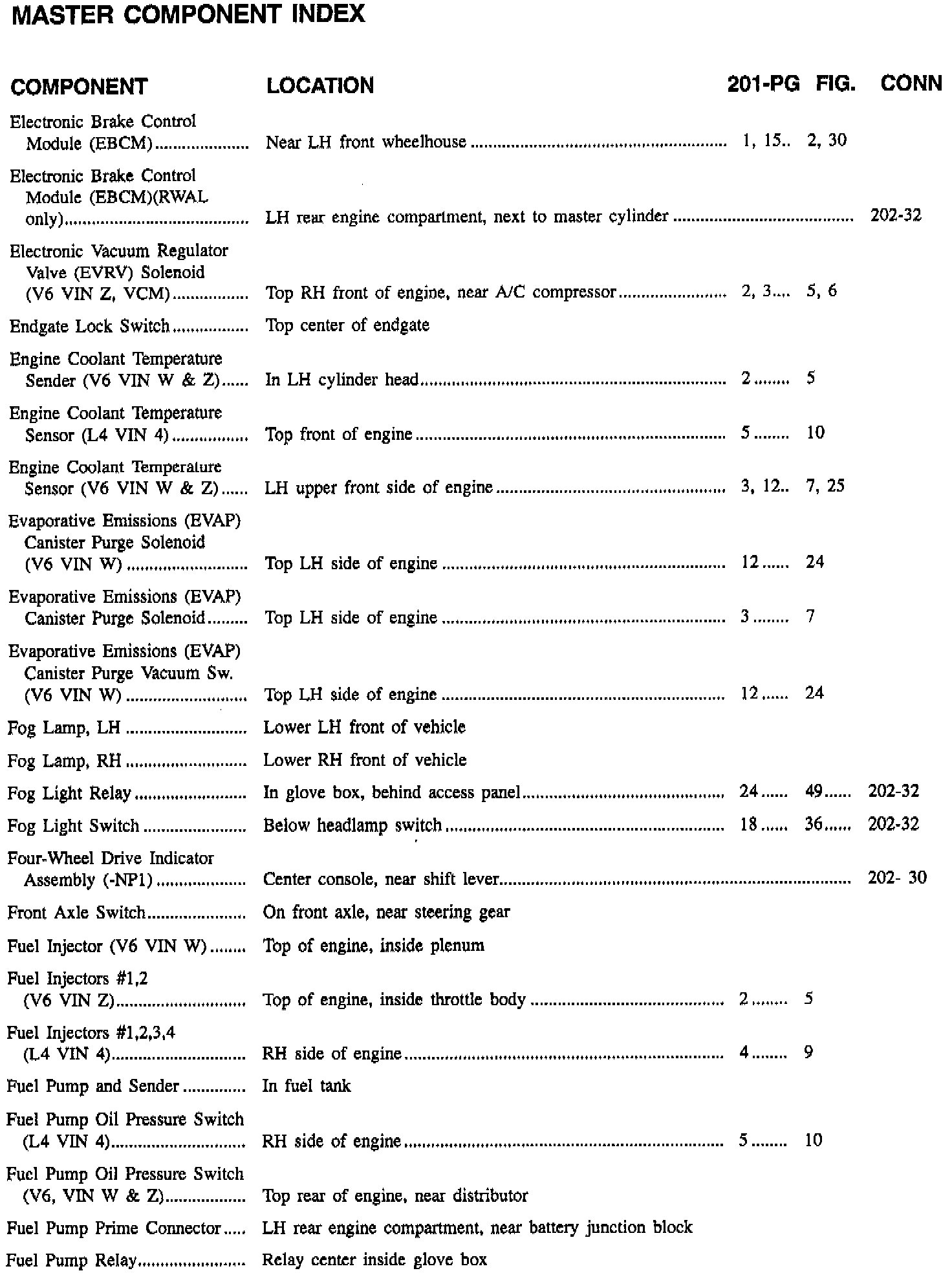

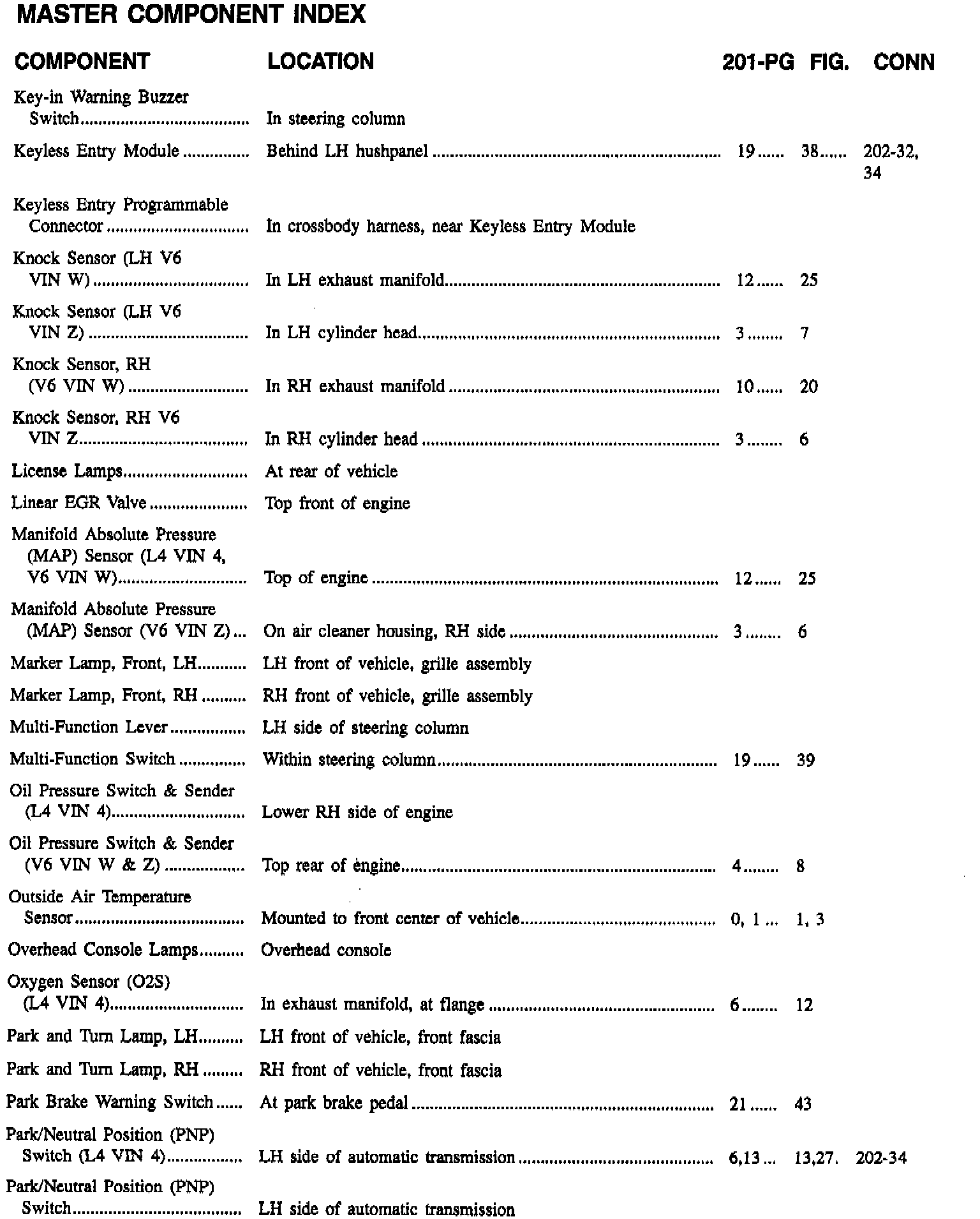

SA - 200 - 0 ELECTRICAL DIAGNOSIS





ELECTRICAL DIAGNOSIS 8A - 200 - 1





8A - 200 - 2 ELECTRICAL DIAGNOSIS





ELECTRICAL DIAGNOSIS 8A - 200 - 3





8A - 200 - 4 ELECTRICAL DIAGNOSIS





ELECTRICAL DIAGNOSIS 8A - 200 - 5





8A - 200 - 6 ELECTRICAL DIAGNOSIS





ELECTRICAL DIAGNOSIS 8A - 200 - 7





8A - 200 - 8 ELECTRICAL DIAGNOSIS





ELECTRICAL DIAGNOSIS 8A - 200 - 9





8A - 200 - 10 ELECTRICAL DIAGNOSIS





ELECTRICAL DIAGNOSIS 8A - 200 - 11





8A - 200 - 12 ELECTRICAL DIAGNOSIS





ELECTRICAL DIAGNOSIS 8A - 200 - 13





8A - 200 - 14 ELECTRICAL DIAGNOSIS





ELECTRICAL DIAGNOSIS 8A - 200 - 15





8A - 200 - 16 ELECTRICAL DIAGNOSIS





ELECTRICAL DIAGNOSIS 8A - 200 - 17





8A - 200 - 18 ELECTRICAL DIAGNOSIS
