Transfer Case - Revised Electronic Shift Wiring Diagram
File In Section: 7 - TransmissionBulletin No.: 66-74-03
Date: April, 1996
SERVICE MANUAL UPDATE
Subject:
Section 7D1A, Transfer Case Electronic Controls - Revised Electronic Shift Transfer Case Wiring Diagram
Models:
1995 Chevrolet and GMC T Models
Bulletin No.: 66-74-03:

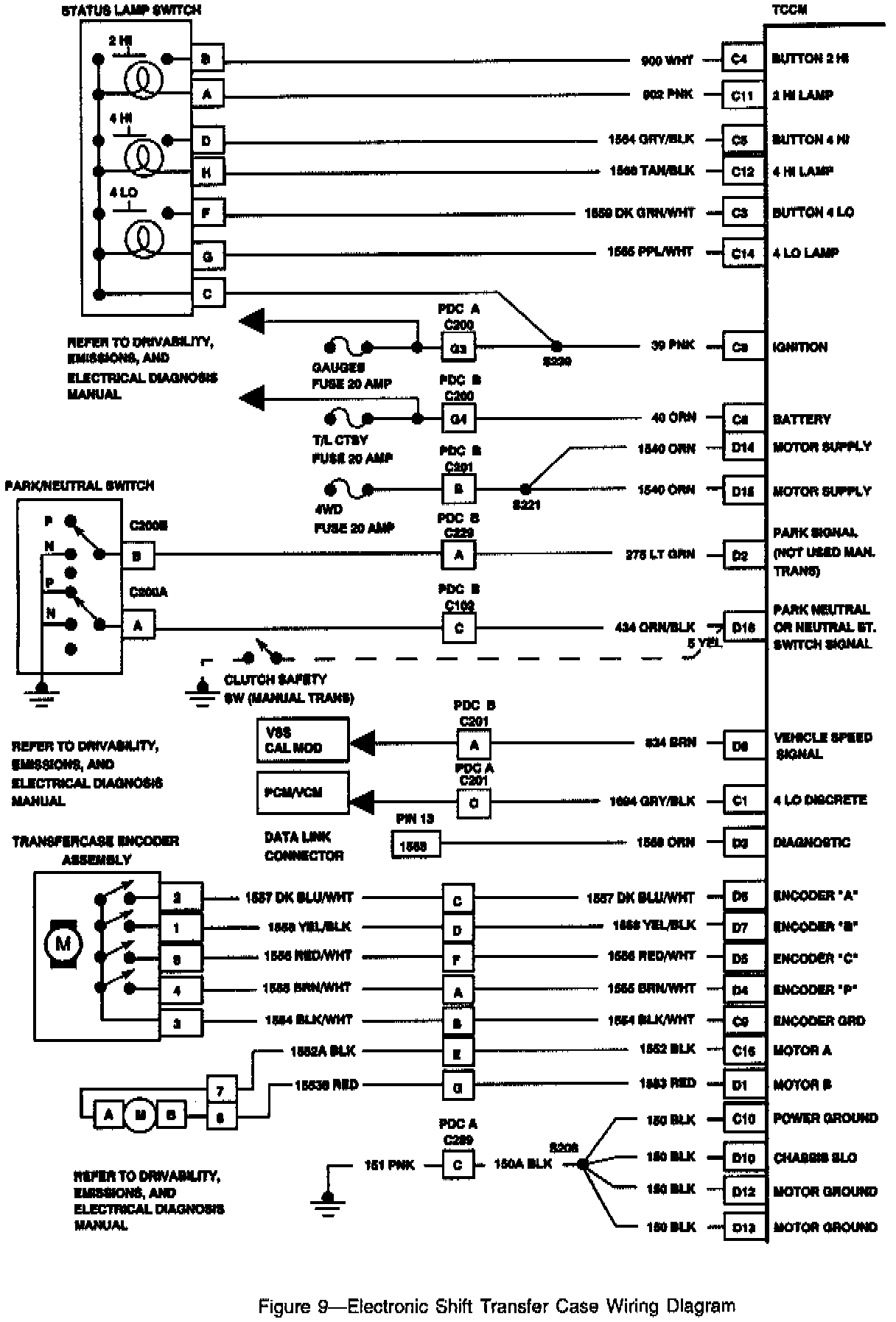

This bulletin has been issued to revise page 7D1A-23, Figure 9, the Electronic Shift Transfer Case Wiring Diagram to reflect the correct call-out information.
Please replace the current page 7D1A-23 with the page enclosed with this bulletin.
