With Air Conditioning

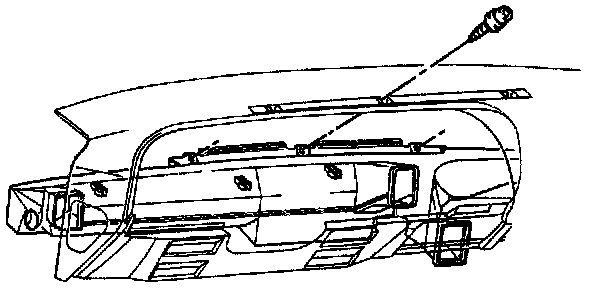

Air Distributor Duct:

Remove or Disconnect
1. Negative battery cable.
2. Tilt back instrument panel.
3. Three duct mounting screws.
- Squeeze to release the duct retainers in five places.
4. Duct from instrument panel.

Install or Connect
1. Duct to instrument panel.
2. Duct mounting screws. Tighten Air Distributor Duct Screws to 1.9 Nm (17 lbs. in.).
3. Instrument panel.
4. Negative battery cable.
