Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1996
>>
Astro Van M V6-4.3L VIN W
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 68
DTC 68

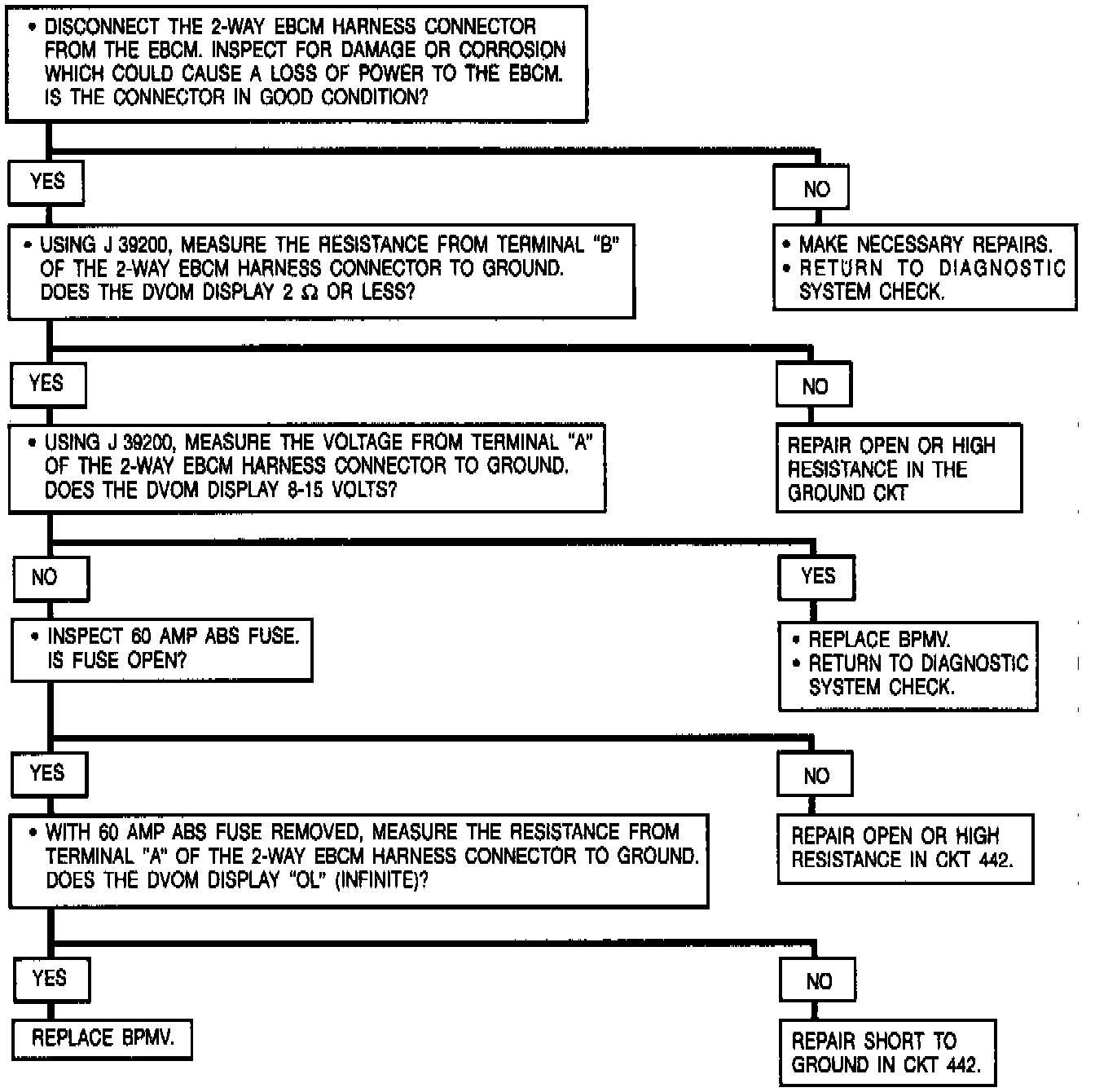

Fig. 215 Codes 67 & 68: Open Motor Circuit Or Shorted EBCM Output; Locked Motor Or Shorted Motor Circuit:
