P1812

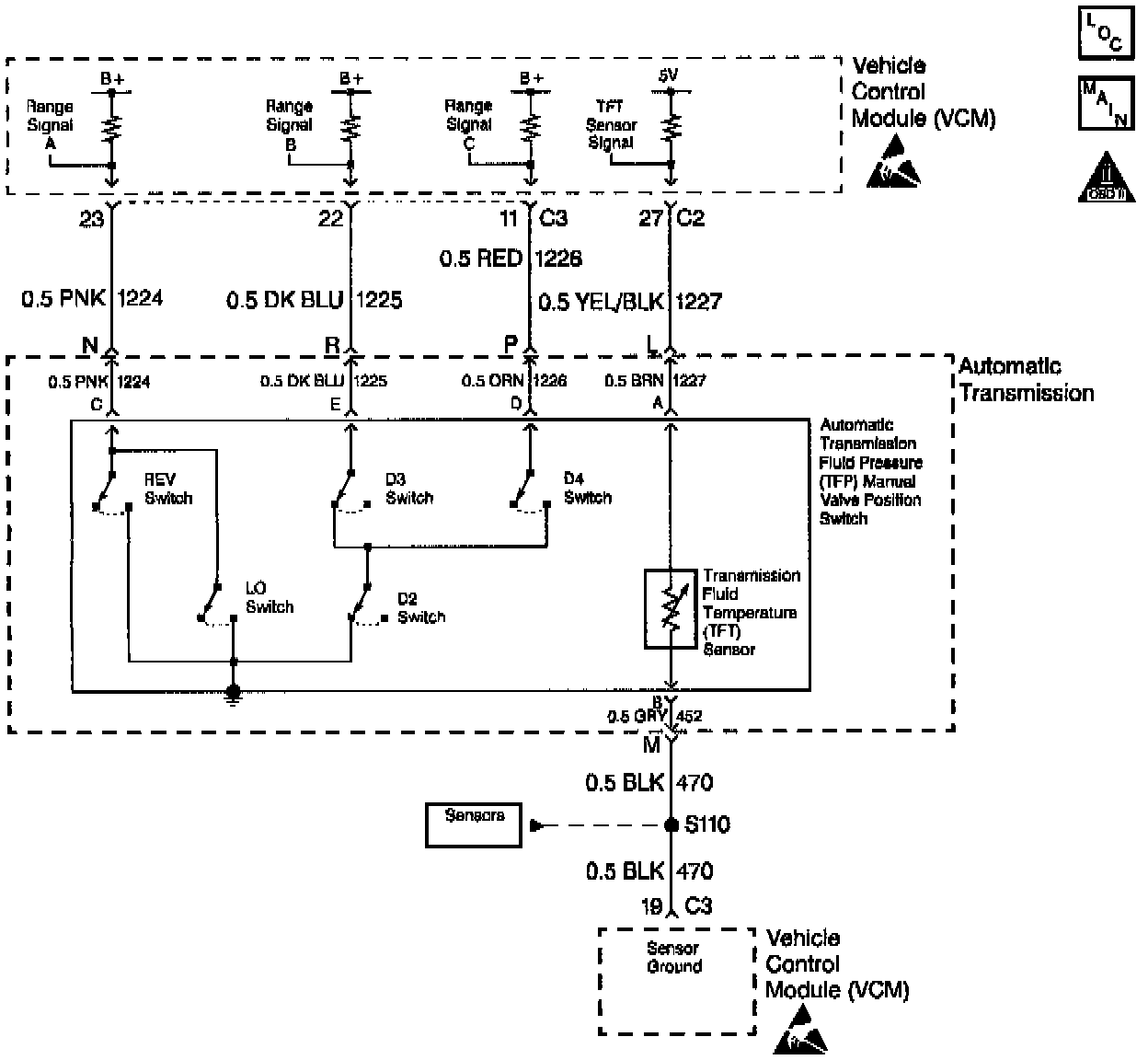

Diagnostic Chart:

CIRCUIT DESCRIPTION
The Transmission Fluid Temperature (TFT) sensor is a thermistor within the TFP Val. Position Sw. The TFT sensor controls the signal voltage to the VCM. The VCM supplies a 5-volt reference signal to the sensor on circuit 1227. When the transmission fluid is cold, the sensor resistance is high. The VCM detects high signal voltage. As the transmission fluid temperature warms to a normal transmission operating temperature of 100°C (212°F), the sensor resistance decreases and the voltage decreases to 1.5-2.0 volts.

When the VCM detects a high transmission temperature for a long period of time, then DTC P1812 sets. DTC P1812 is a type D DTC.

CONDITIONS FOR SETTING THE DTC
^ No TFT sensor DTCs P0712 or P0713.
^ The TFT is greater than 136°C (277°F).
^ All conditions met for 410 seconds (6.8 minutes).

ACTION TAKEN WHEN THE DTC SETS
^ The VCM freezes shift adapts from being updated.
^ The VCM does not illuminate the Malfunction Indicator Lamp (MIL).

CONDITIONS FOR CLEARING THE DTC
^ A scan tool can clear the DTC from the VCM history. The VCM clears the DTC from the VCM history if the vehicle completes 40 warm-up cycles without a failure reported.
^ The VCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the VCM.

DIAGNOSTIC AIDS
^ Inspect the wiring for poor electrical connections at the VCM. Inspect the wiring for poor electrical connections at the transmission 20-way connector. Look for the following conditions:

- A bent terminal.
- A backed out terminal.
- A damaged terminal.
- Poor terminal tension.
- A chafed wire.
- A broken wire inside the insulation.

^ When diagnosing for an intermittent short or open condition, massage the wiring harness while watching the test equipment for a change.
^ The TFT sensor temperature displayed on the scan tool should rise steadily to about 100°C (212°F), then stabilize.
^ Inspect the torque converter stator for a possible problem.
^ Ask about the customer's driving habits, trailer towing, etc.

TEST DESCRIPTION
The numbers below refer t6 the step numbers on the diagnostic chart.

3. This Step tests for a skewed (mis-scaled) sensor or shorted circuit.
4. This Step simulates a TFT sensor DTC P0713.
