Astro Van M V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Diagrams
>>
I/P to Body Harness Connector
I/P to Body Harness Connector

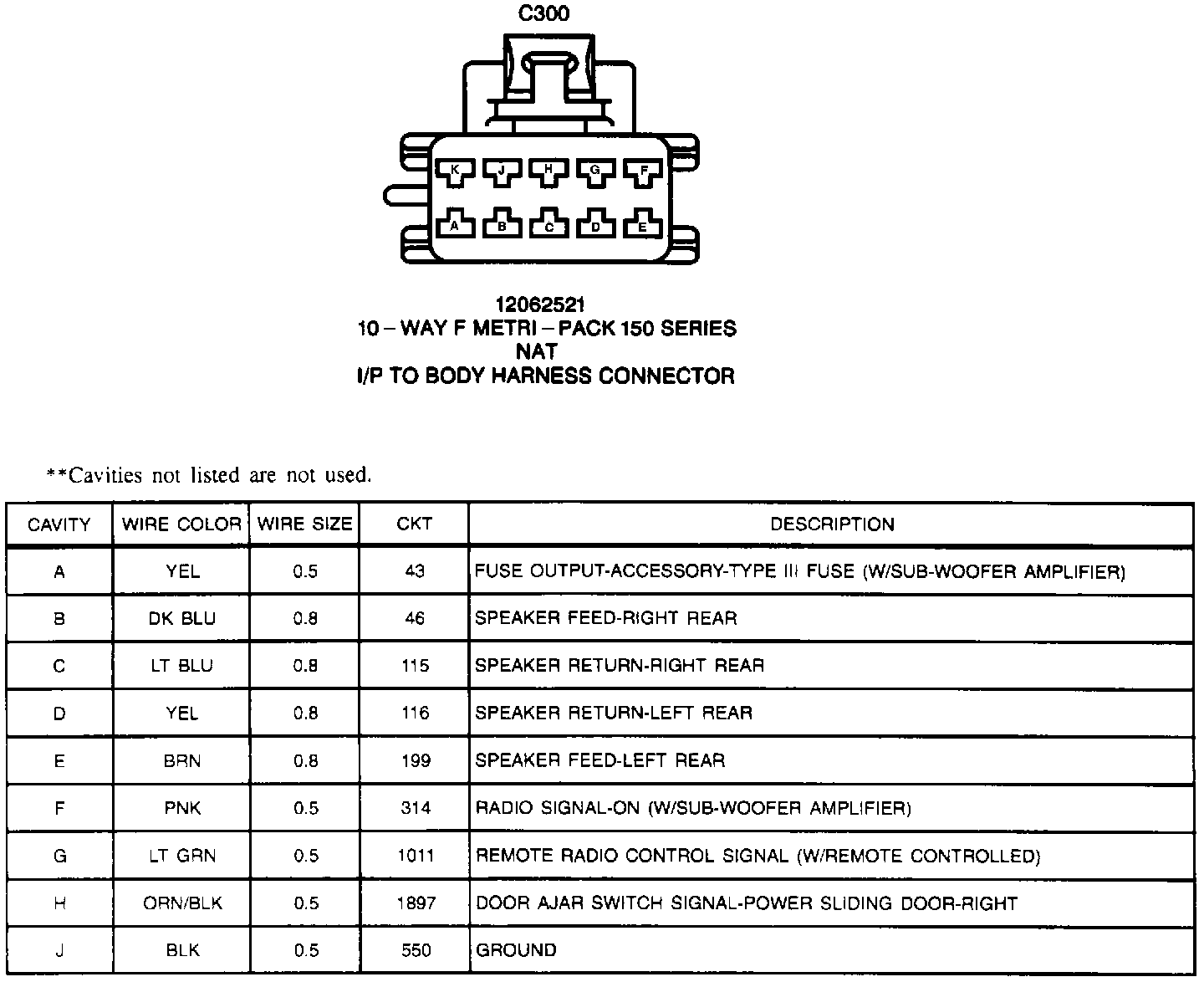

C300: I/P To Body Harness Connector:
C204: I/P To Body Harness Connector:
