Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1996
>>
Astro Van M V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

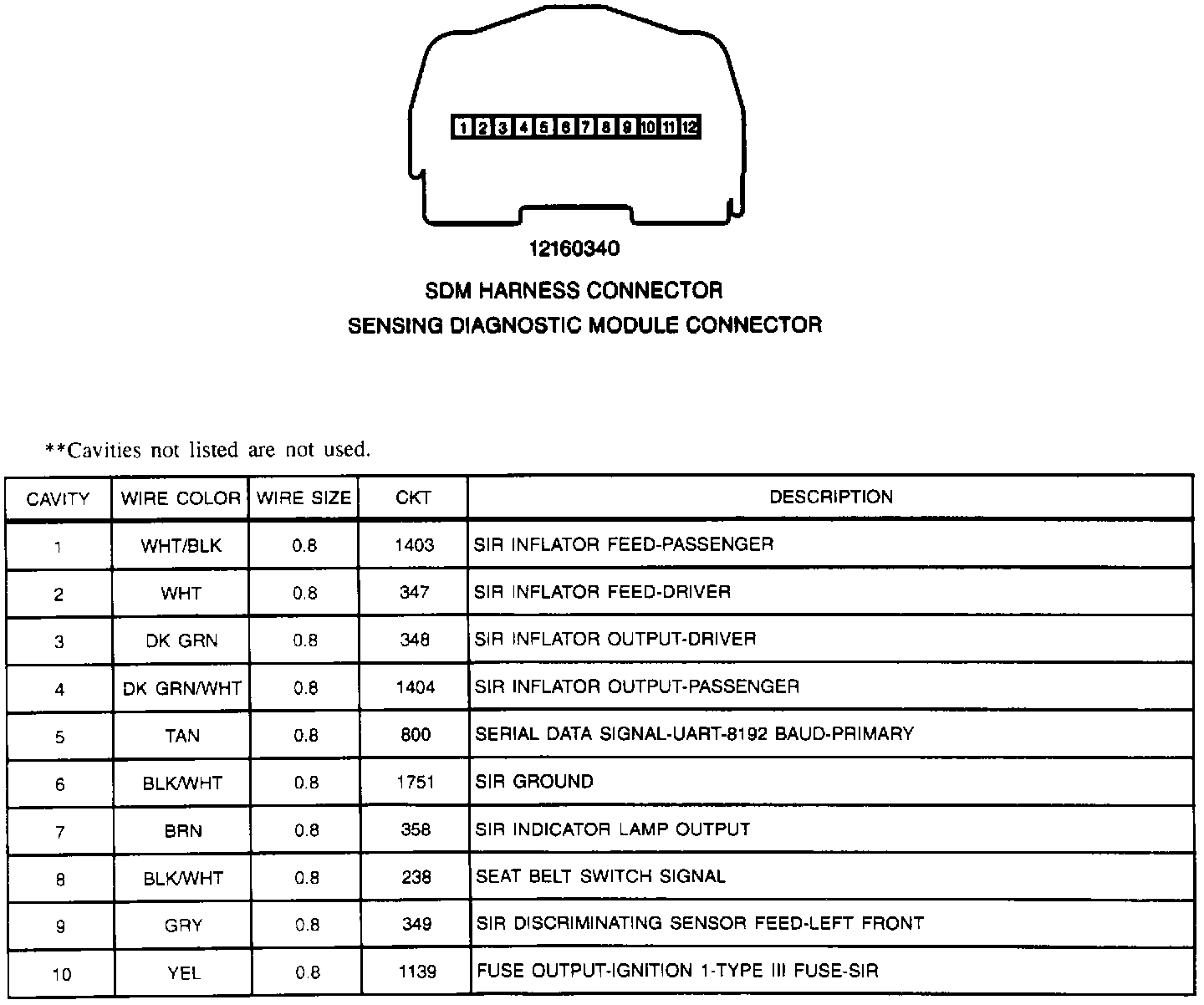

SDM Harness Connector, Sensing Diagnostic Module Connector:
