Home >> Chevy Truck >> 1996 >> Astro Van M V6-4.3L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Relay >> Locations

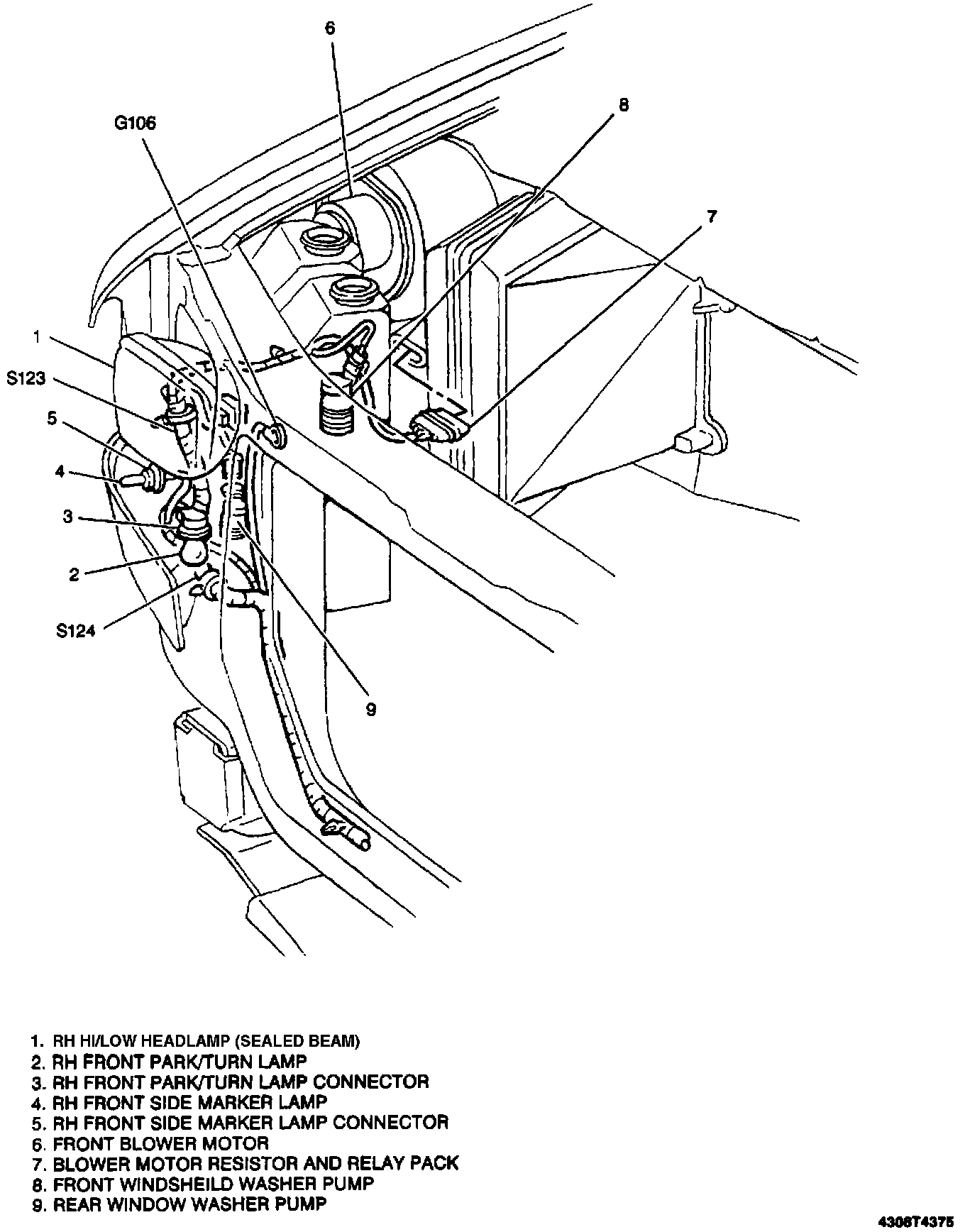

Blower Motor Relay: Locations

Forward Lamps Harness, RH Side:
