Home >> Chevy Truck >> 1996 >> Astro Van M V6-4.3L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Switch >> Locations

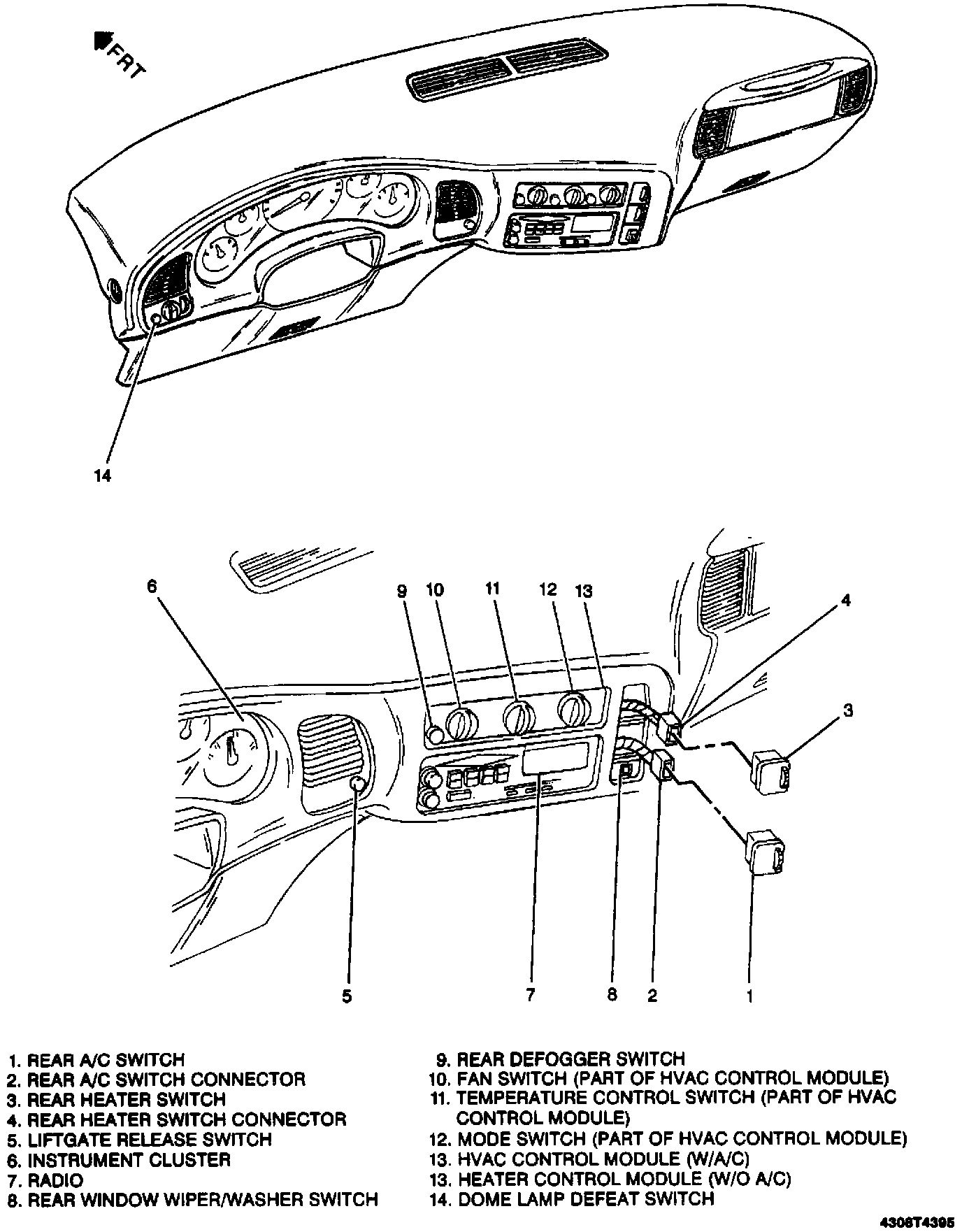

Blower Motor Switch: Locations

HVAC Panel Wiring:
