Chevy Truck
>>
1996
>>
Astro Van M V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

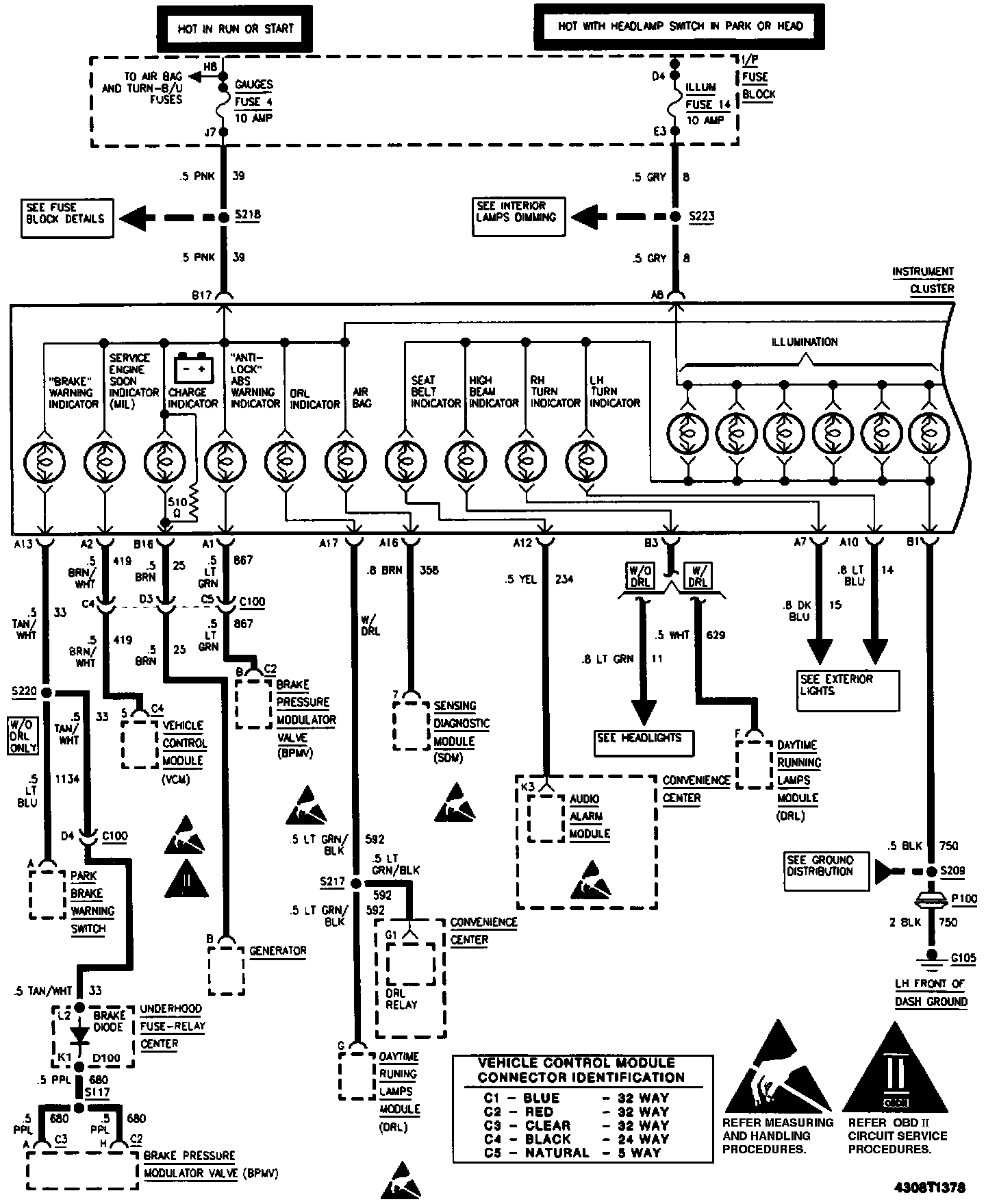

Instrument Cluster: With Gages (Part 1 Of 2):

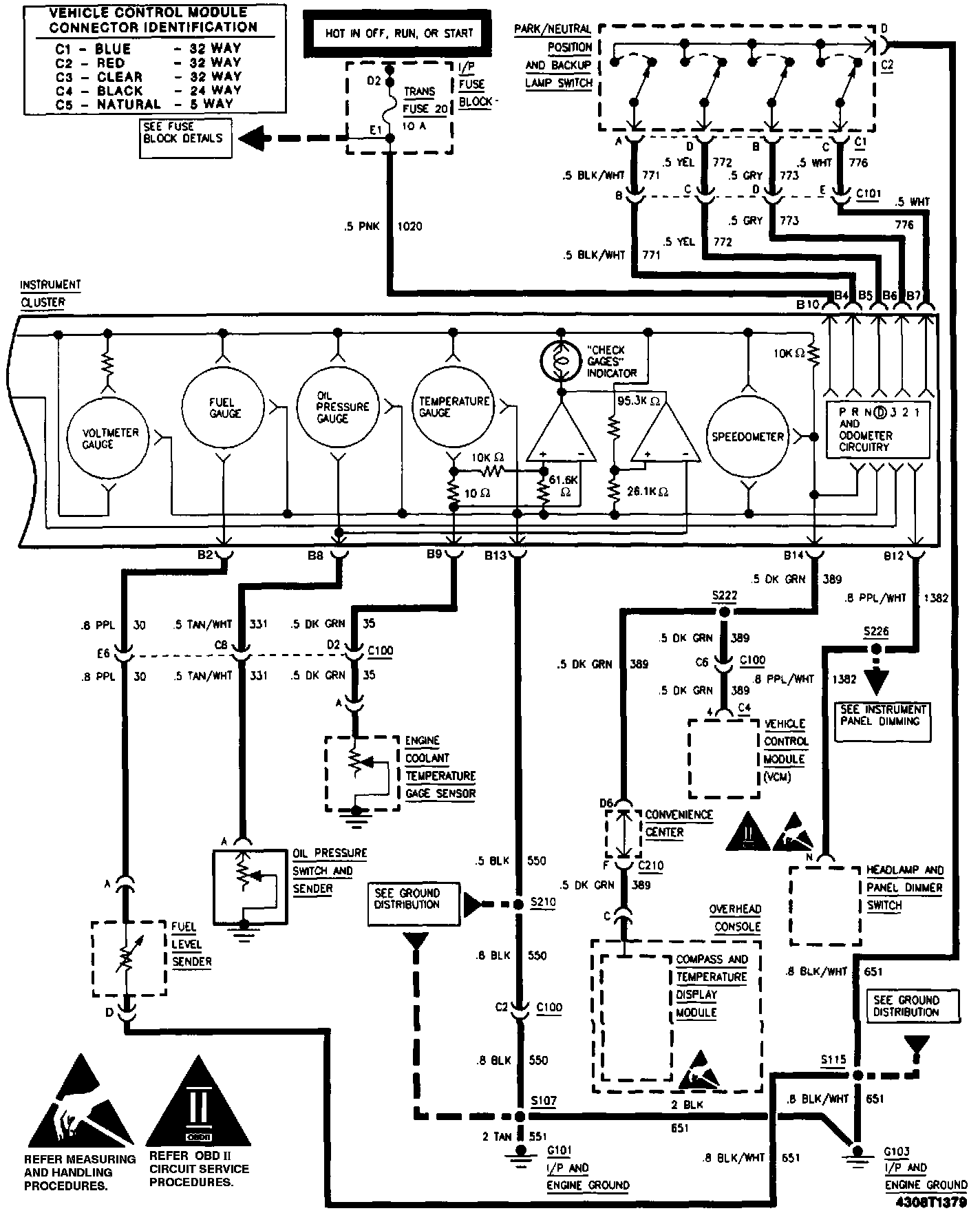

Instrument Cluster: With Gages (Part 2 Of 2):
