Electronic Compass - Revised Diagnostic Tables

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 85-81-14

Date: September, 1998

SERVICE MANUAL UPDATE

Subject:
Section 8A-84 - Electronic Compass w/Temperature Display - Revised Diagnostic Tables

Models:
1996 Chevrolet and GMC M/L Models

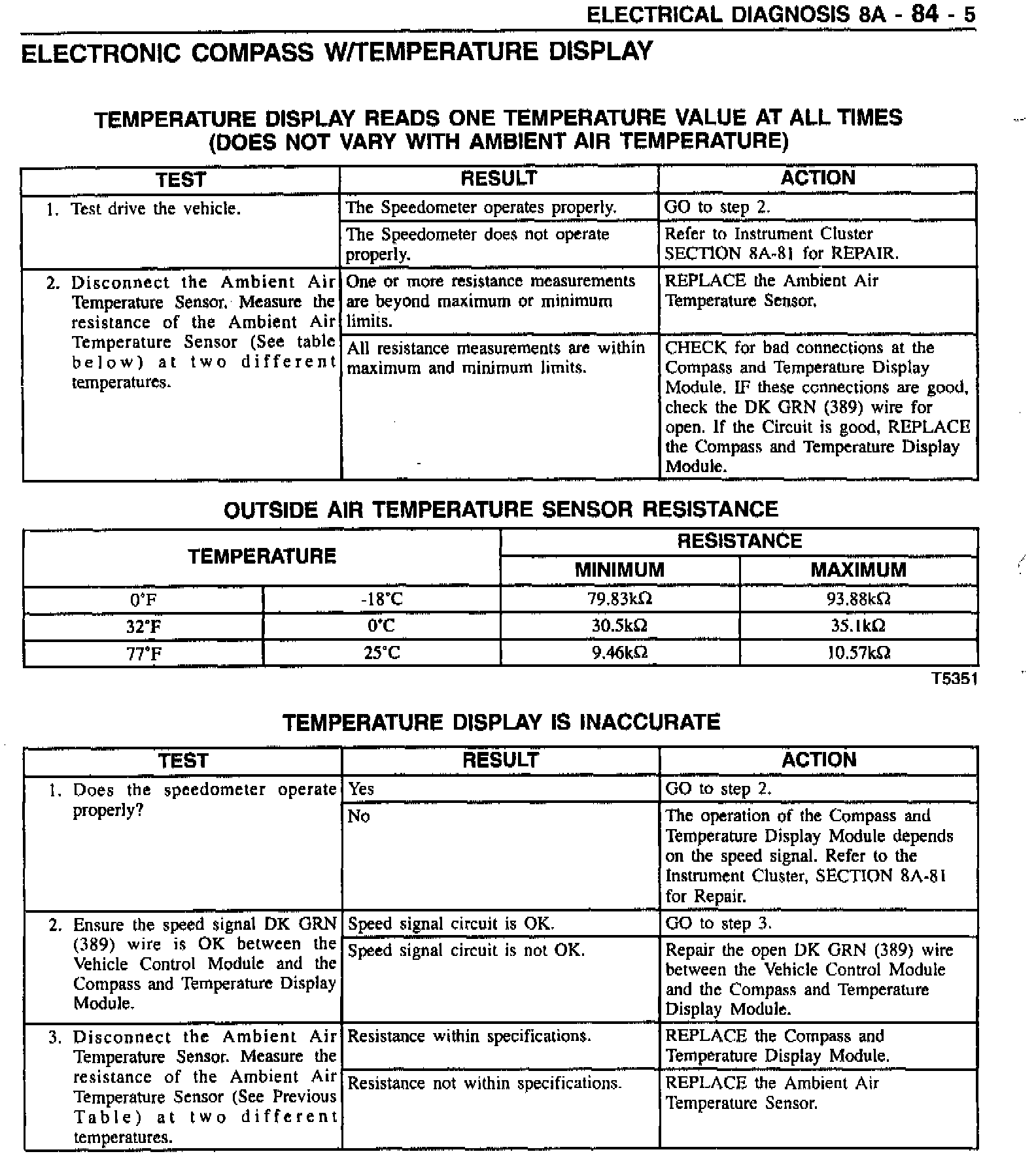

This bulletin revises "Temperature Display is Inaccurate" and "Compass Display Shows "CAL" or Inoperative, Temperature Display is OK" diagnostic tables on Pages 8A-84-5 and 8A-84-6 in the 1996 M/L Service Manual.








Please replace with the attached.
