Instrument Cluster (w/Gauges) - Revised Diagnostic Table
File In Section: 8 Chassis/Body ElectricalBulletin No.: 86-81-07
Date: July, 1998
SERVICE MANUAL UPDATE
Subject
Section 8A-81 - Instrument Cluster: with Gauges - Revised Diagnostic Table
Models:
1996 Chevrolet and GMC M/L Models

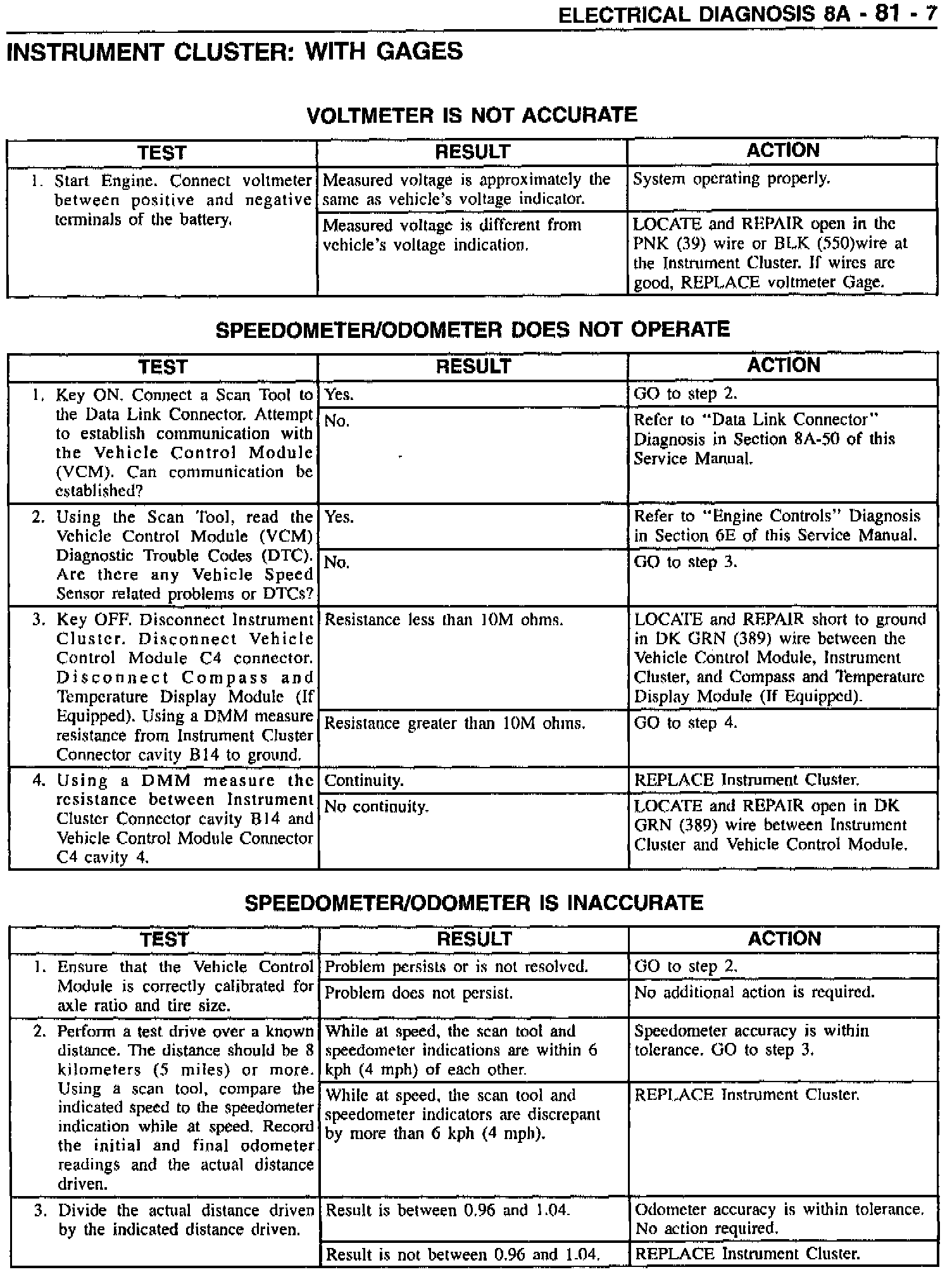

This bulletin revises the second diagnostic table "Speedometer/Odometer Does Not Operate", on page 8A-81-7 in the 1996 M/L Service Manual. Please replace with the update.
