Wipers - Revised Diagnostics

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 76-81-17

Date: December, 1997

SERVICE MANUAL UPDATE

Subject:

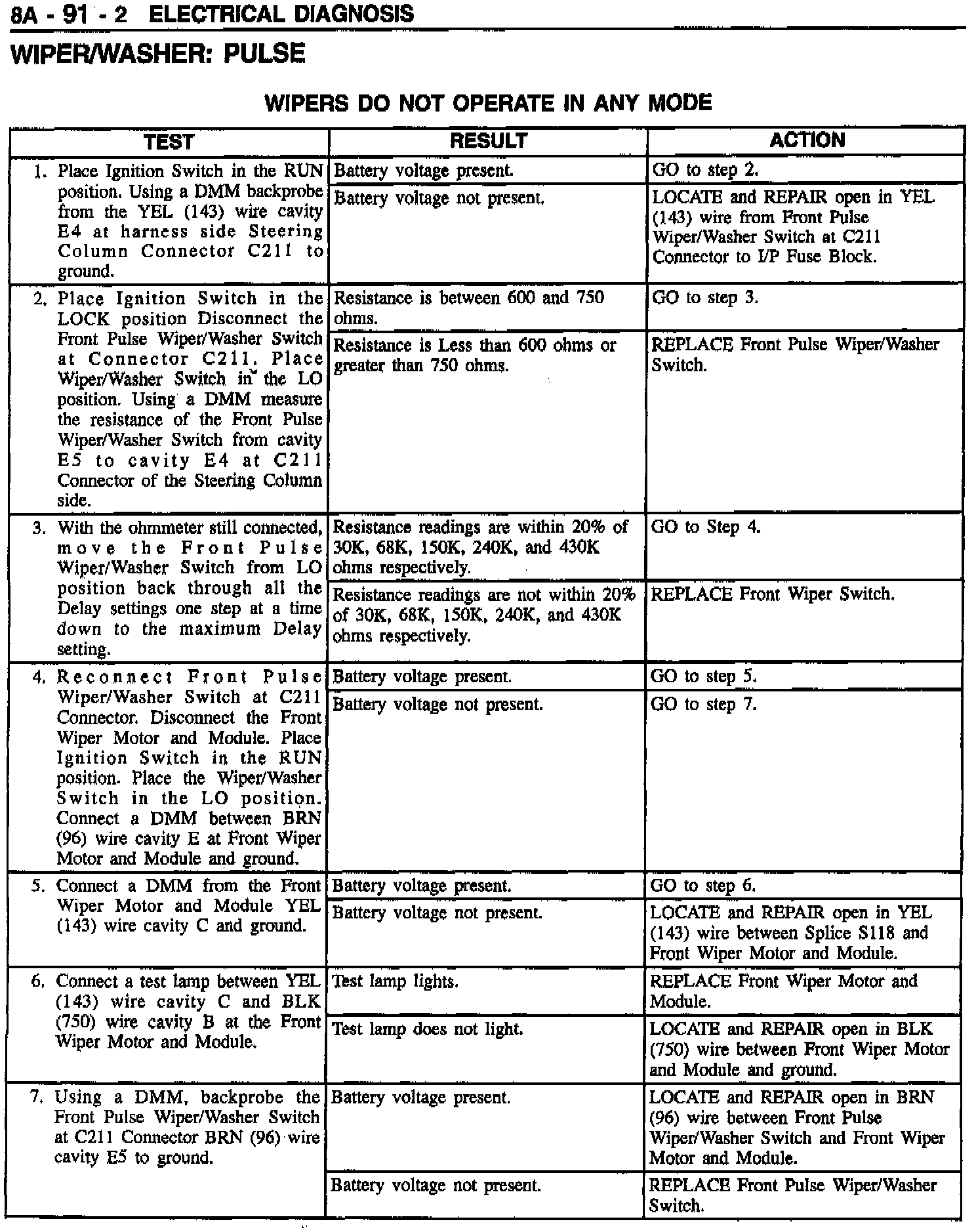

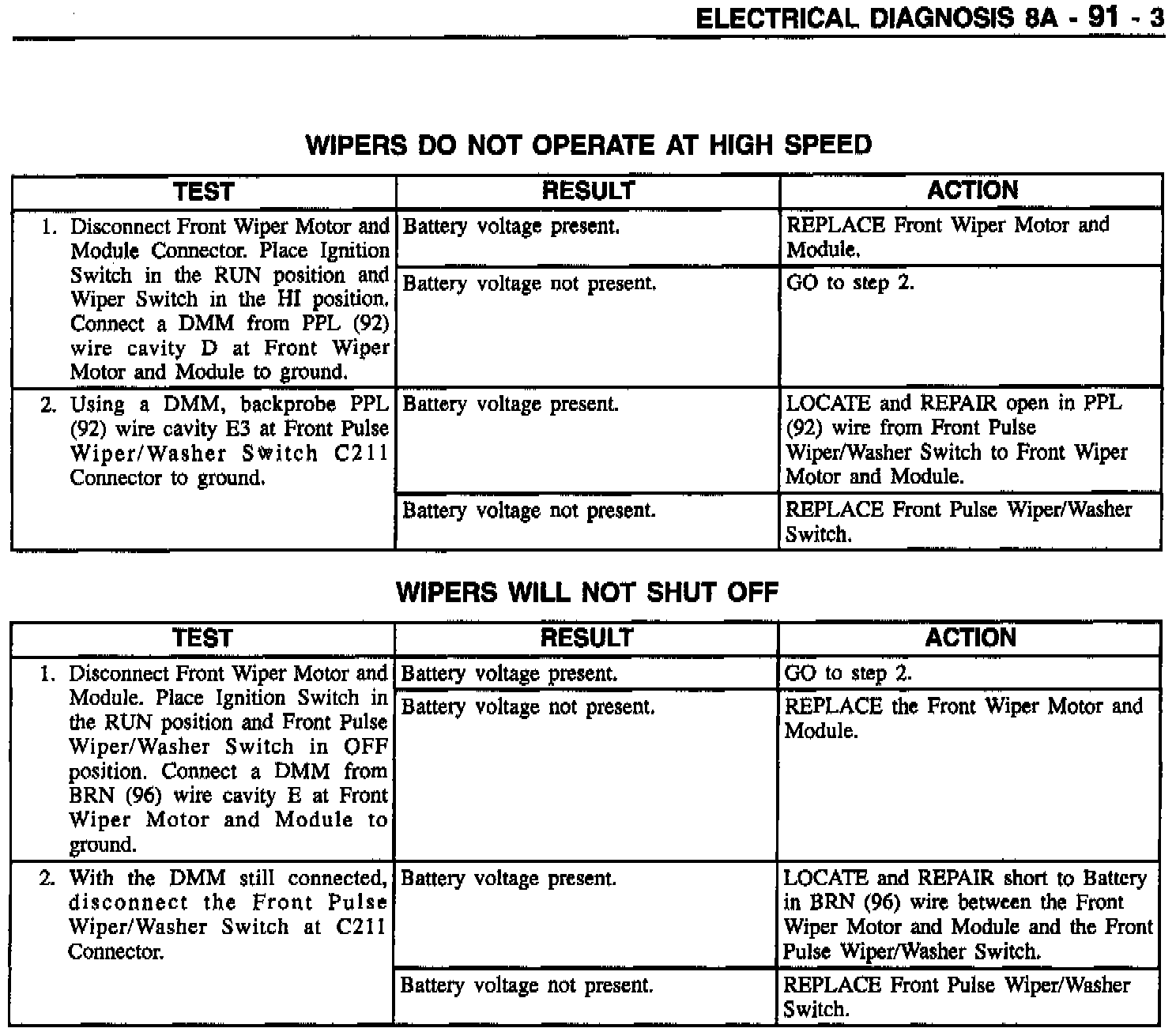

Section 8A-91, Wiper/Washer: Pulse - Revised Diagnostic Tables, 1996 M/L Models

Models:
1996 Chevrolet and GMC M/L Models








This bulletin revises the three diagnostic tables on Page 8A-91-2 and 8A-91-3 in the 1996 M/L Service Manual.
