DTC 73

DTC 71 THROUGH 74

EBCM MEMORY ERRORS






CIRCUIT DESCRIPTION:

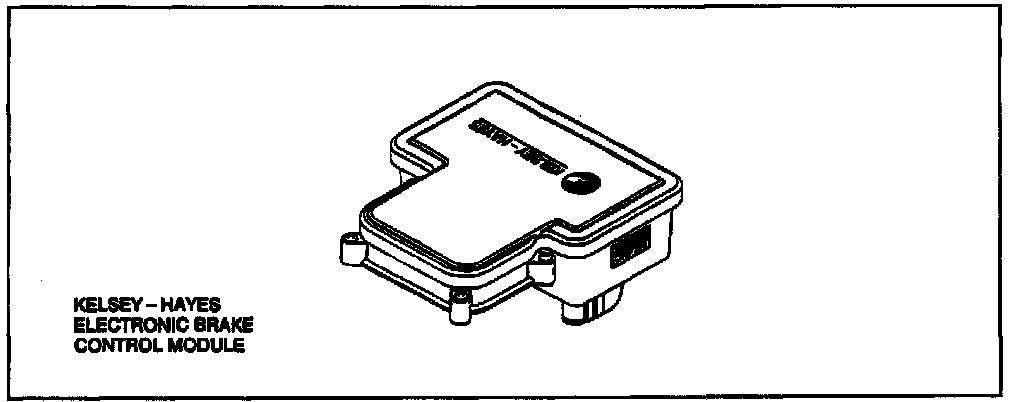

DTCs 71 through 74 relate to the module circuitry inside the EBCM. The module is inegral with the EBCM and cannot be serviced. THE EBCM must be replaced if these tests show the module circuitry has failed.

DTC CHART TEST DESCRIPTION:

1. Check if EBCM will clear DTCs.
2. Check if DTC has been set previously.

Fig. 217 Codes 71 Through 74: EBCM Memory Errors:
