P0704

DTC P0704 Clutch Switch Circuit (1 Of 2):

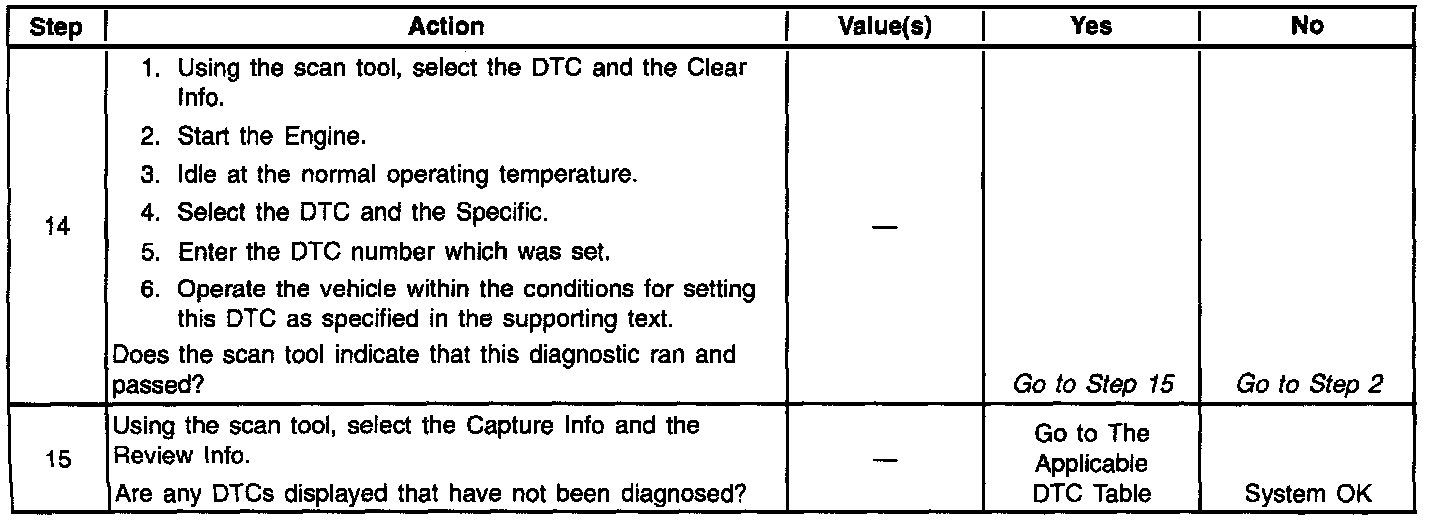

DTC P0704 Clutch Switch Circuit (2 Of 2):

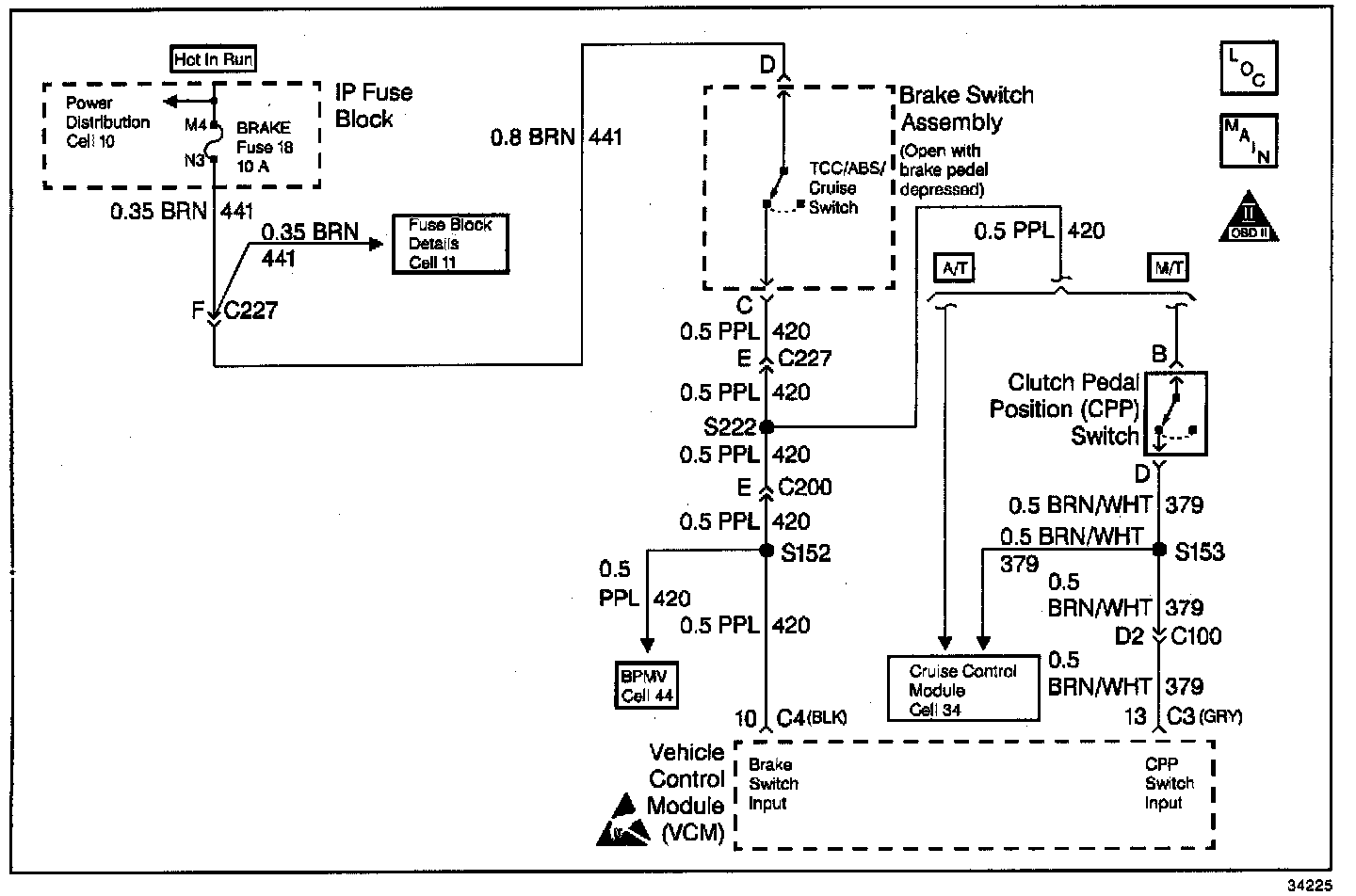

Clu6tch Switch Circuit:

CIRCUIT DESCRIPTION
This DTC determines if the Transmission Clutch Switch has failed by looking for a clutch switch transition within a range from 0 mph to some higher speed. This DTC is a type B DTC.

CONDITIONS FOR SETTING THE DTC
The following conditions will set the DTC:

^ No Vehicle Speed Sensor (VSS) DTCs

^ Vehicle speed is greater than 40 mph.

^ No clutch transitions detected.

ACTION TAKEN WHEN THE DTC SETS
The Vehicle Control Module (VCM) turns on the Malfunction Indicator Lamp (MIL) after 2 consecutive trips with the fault present.

CONDITIONS FOR CLEARING THE MIL/DTC
The VCM turns the MIL off after 3 consecutive driving trips without a fault condition present. A history DTC will clear if no fault conditions have been detected for 40 warm-up cycles (coolant temperature has risen 40°F from the start-up coolant temperature and the engine coolant temperature exceeds 160°F during that same ignition cycle) or the scan tool clearing feature has been used.
