P0713

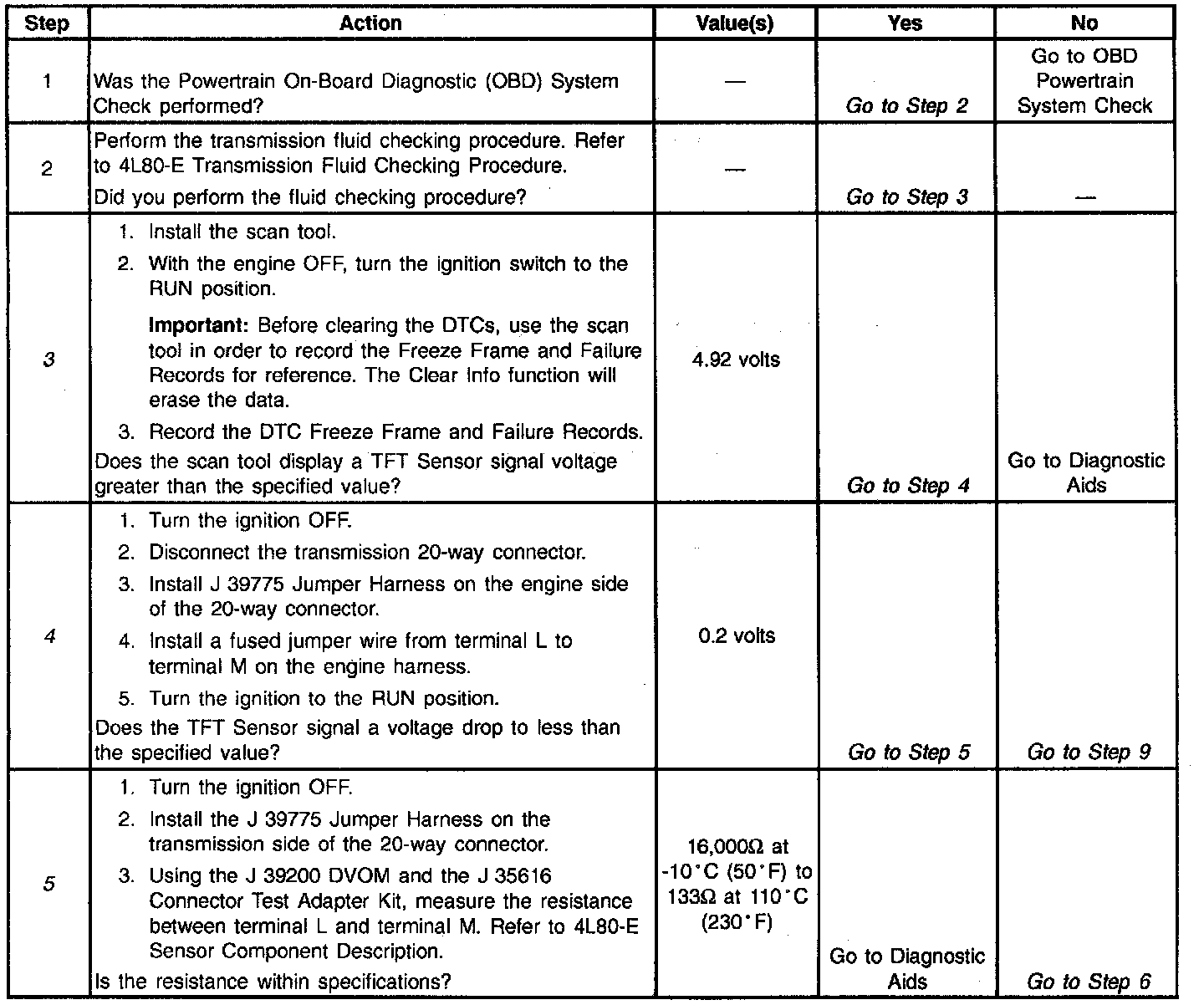

DTC P0713 Fluid Temperature Sensor CKT High Input (Gas [1 Of 2]):

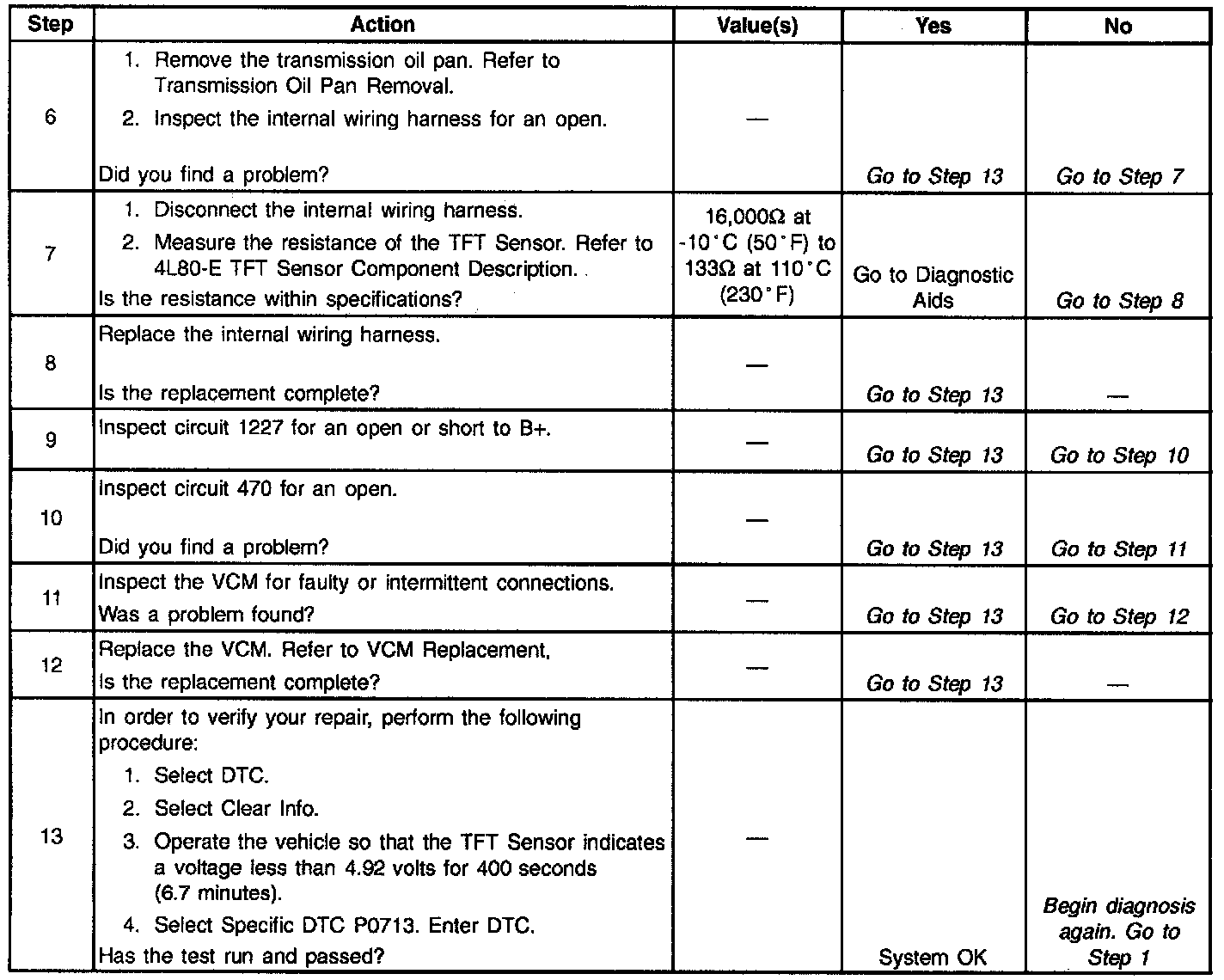

DTC P0713 Fluid Temperature Sensor CKT High Input (Gas [2 Of 2]):

Fluid Temperature Sensor Circuit (Gas):

CIRCUIT DESCRIPTION
The Transmission Fluid Temperature (TFT) sensor is a thermistor that controls the signal voltage to the Vehicle Control Module (VCM). The VCM supplies a 5-volt reference signal to the sensor on circuit 1227. When the transmission is fluid is cold, the sensor resistance is high and the VCM senses a high signal voltage. As the transmission fluid temperature warms to normal operating temperature, the sensor resistance decreases and the voltage decreases to about 1.5-2 volts.

When the VCM detects a continuous open or short to the power in the TFT signal circuit or the TFT Sensor, then DTC P0713 sets. DTC P0713 is a type D DTC. For California emissions vehicles, DTC P0713 is a type B DTC.

CONDITIONS FOR SETTING THE DTC

1. The TFT Sensor indicates a voltage greater than 4.92 volts.
2. The ignition is ON.
3. All conditions met for 400 seconds.

ACTION TAKEN WHEN THE DTC SETS

^ The transmission default temperature is 140°C (275°F). The scan tool does not display the default temperature.
^ The VCM freezes shift adapts from being updated.
^ The VCM illuminates the Malfunction Indicator Lamp (MIL) for California Emission vehicles.

CONDITIONS FOR CLEARING THE DTC

^ For California Emissions only, the VCM turns off the MIL after three consecutive ignition cycles without a failure reported.
^ A scan tool can clear the DTC from the VCM history. The VCM clears the DTC from the VCM history if the vehicle completes 40 warm-up cycles without a failure reported.
^ The VCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the VCM.

DIAGNOSTIC AIDS

^ Inspect the harness for a faulty connection or an open in circuit 1227.
^ Inspect the wiring for poor electrical connections at the VCM. Inspect the wiring for poor electrical connections at the transmission 20-way connector. Look for the following conditions:

- A bent terminal.
- A backed out terminal.
- A damaged terminal.
- Poor terminal tension.
- A chafed wire.
- A broken wire inside the insulation.

^ When diagnosing for an intermittent short or open condition, massage the wiring harness while watching the test equipment for a change.
^ The scan tool displays the transmission fluid temperature in degrees. After the transmission operates, the temperature rises steadily to about 100°C (212°F). The temperature then stabilizes.
^ Test the TFT Sensor at the various temperatures in order to evaluate the possibility of a "skewed" (mis-scaled) sensor. Use the temperature to resistance value scale. A "skewed" sensor may cause firm shifts or Torque Converter Clutch (TCC) complaints.
^ First diagnose and clear any engine DTCs or Throttle Position (TP) Sensor codes that are present. Then inspect for any transmission DTCs that may have reset.

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic chart.

3. Step 3 verifies a problem in the TFT sensor circuit.
4. Step 4 simulates a TFT Sensor DTC P0712. If the VCM recognizes the low signal voltage (high temperature), and the scan tool displays 146°C (295°F) or greater, the VCM and the wiring are OK.
5. Step five inspects the TFT sensor and the internal wiring harness.
