A/C - Auxiliary Controls Logic Module Revised Position

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 76-81-03

Date: February, 1997

SERVICE MANUAL UPDATE

Subject:
Section 8A - Auxiliary Heater and A/C Logic Module - Revised Position

Models:
1996 Chevrolet and GMC C/K Models

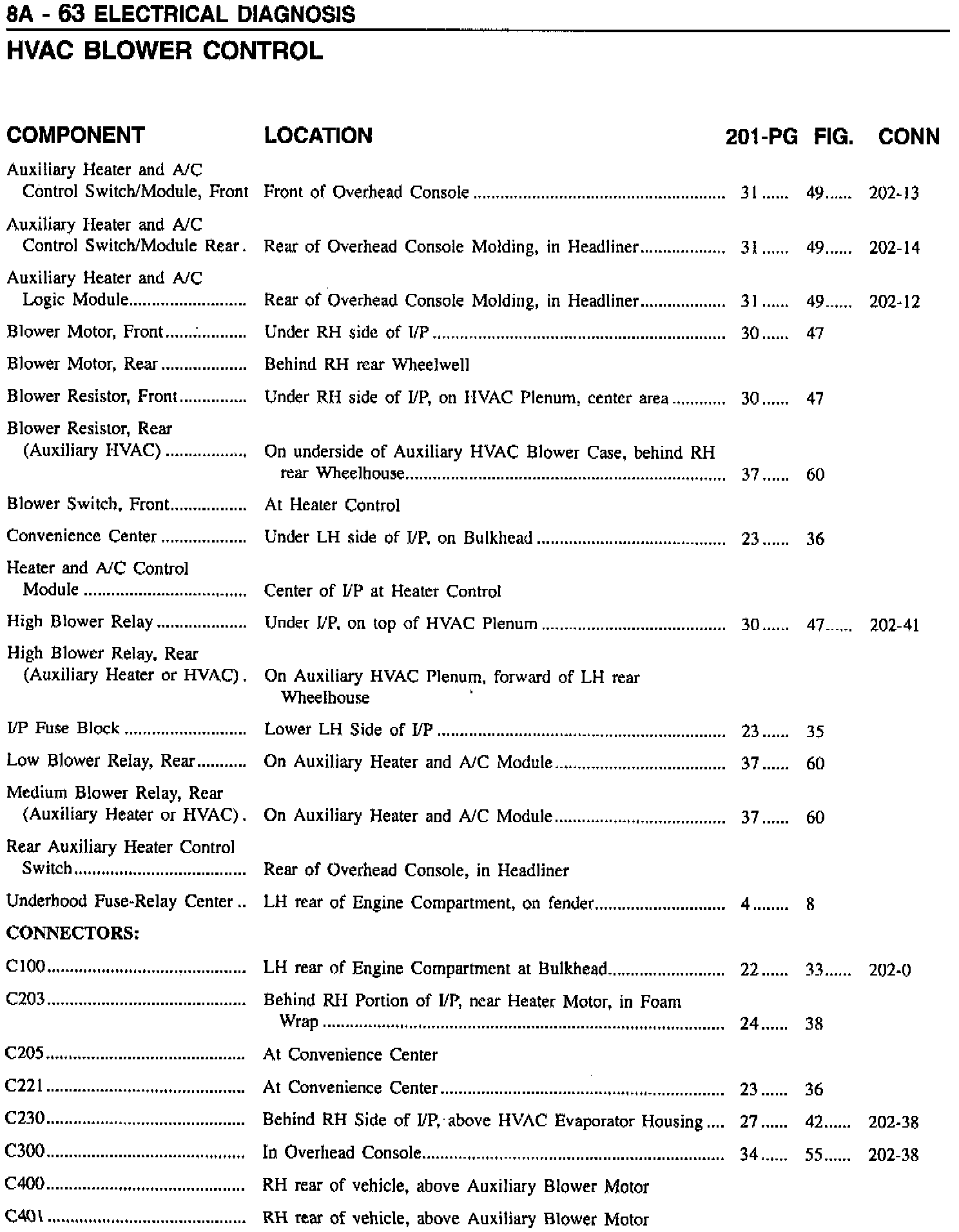

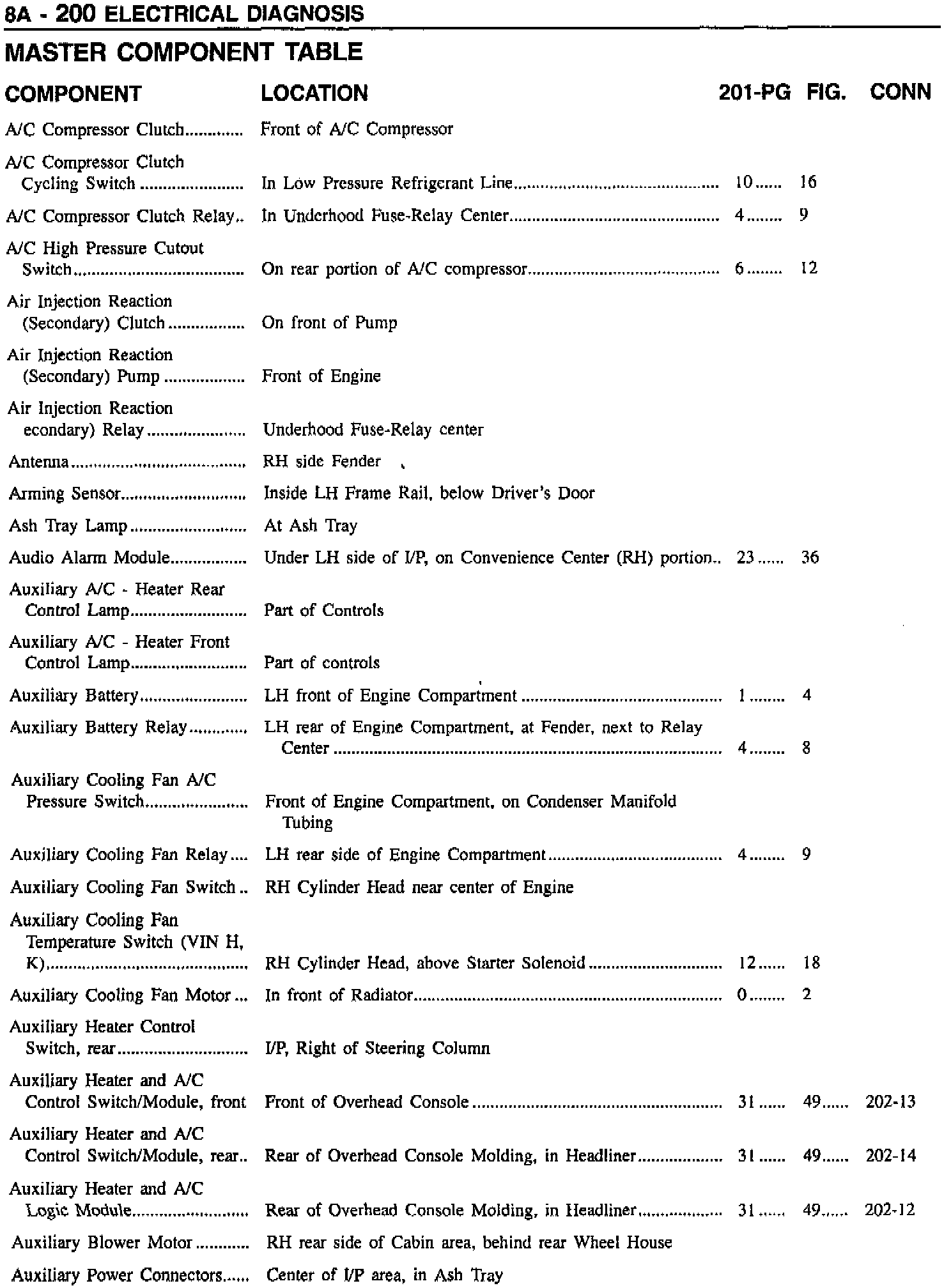

This bulletin revises the position of the Auxiliary Heater and A/C Logic Module in the 1996 Service Manual on pages 8A-63-6, 8A-65-5, 8A-200-0 8A-201-37 and 8A-201-31.
