Headlamp Aiming and Adjustment

HEADLAMP ADJUSTMENT

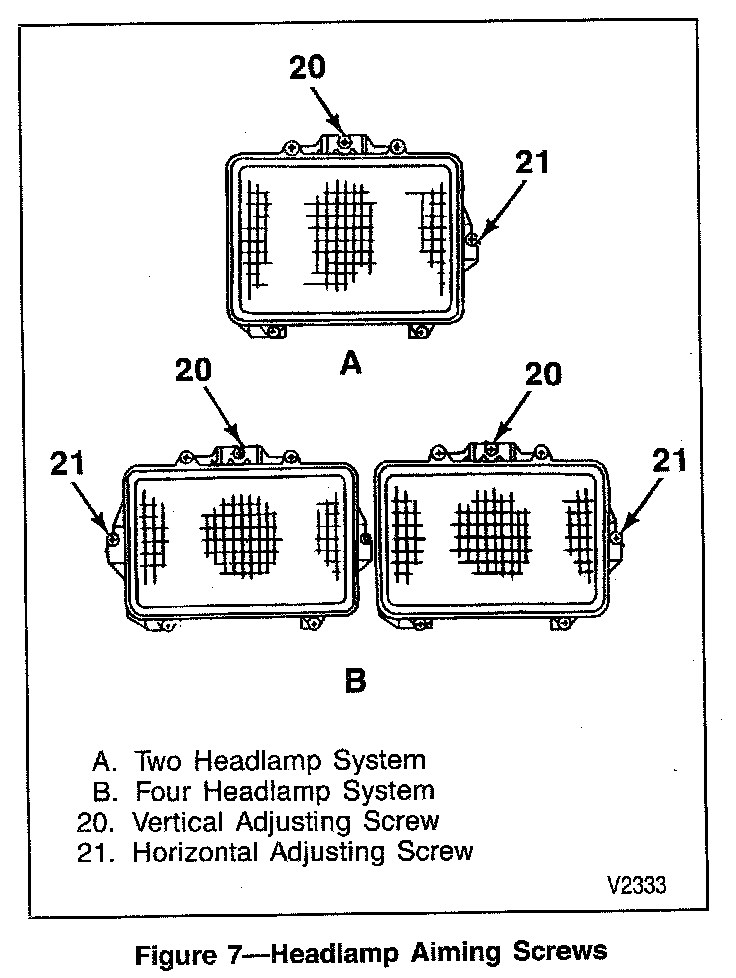

Horizontal and vertical aiming of each headlamp is done by two adjusting screws which move the mounting ring against the tension of the coil spring (figure 7).

Some state and local authorities have specific requirements for aiming headlamps These require ments must be followed.
