Sealed Beam Headlamp Replacement

HEADLAMP REPLACEMENT








Replacement of a headlamp will normally not require aiming adjustment. However, do check the aim. Use the safety aimer J 25300-B or equivalent. Instructions for using the safety aimer are supplied by the instrument manufacturer.

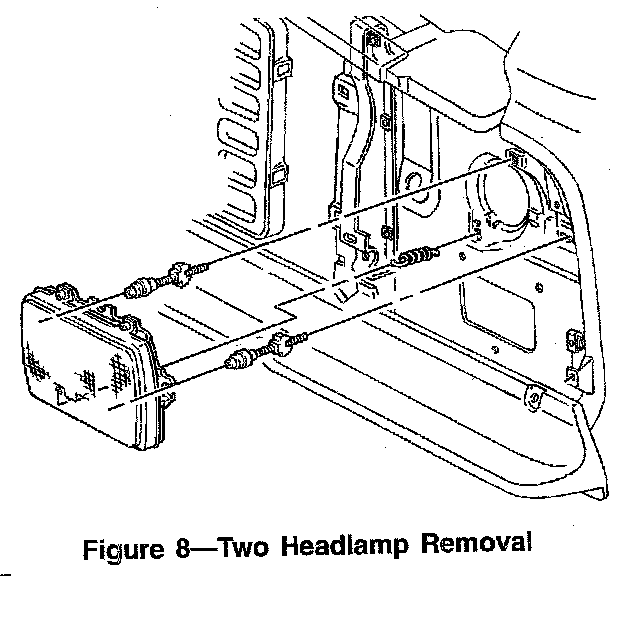

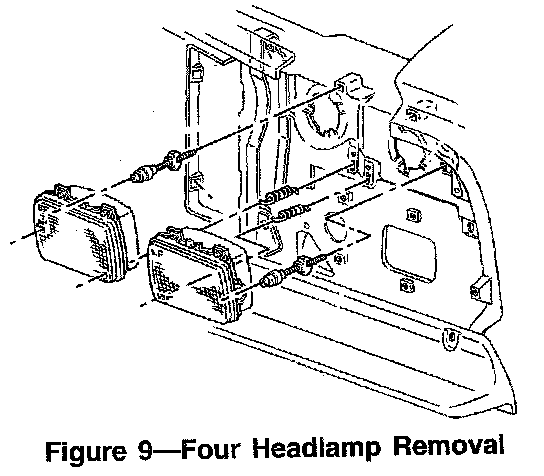

Remove or Disconnect
^ Make sure the headlamp switch is off.
1. Headlamp bezel retaining screws.
2. Bezel.
3. Retaining ring screws.
- Do not move the adjustment screws.
4. Retaining ring from the mounting ring.
5. Headlamp unit.
6. Headlamp electrical connector.


Install or Connect
1. Headlamp electrical connector.
2. Headlamp.
3. Retaining ring.
4. Retaining ring screws.
- Make sure that the headlamp is properly seated.
5. Bezel.
6. Bezel retaining screws.
