Diagnostic System Check - ABS

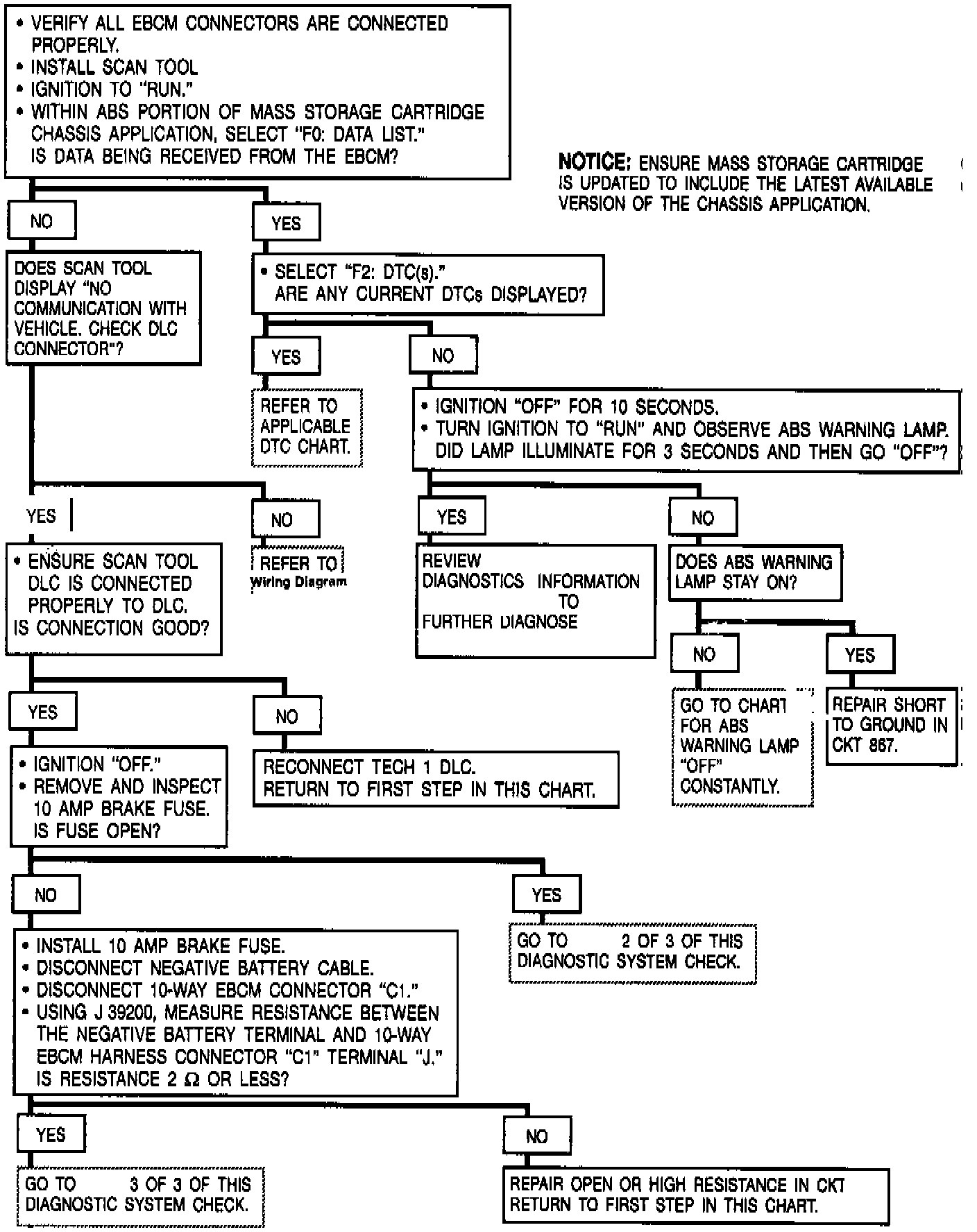

Fig. 192 Diagnostic System Check (part 1 Of 3):

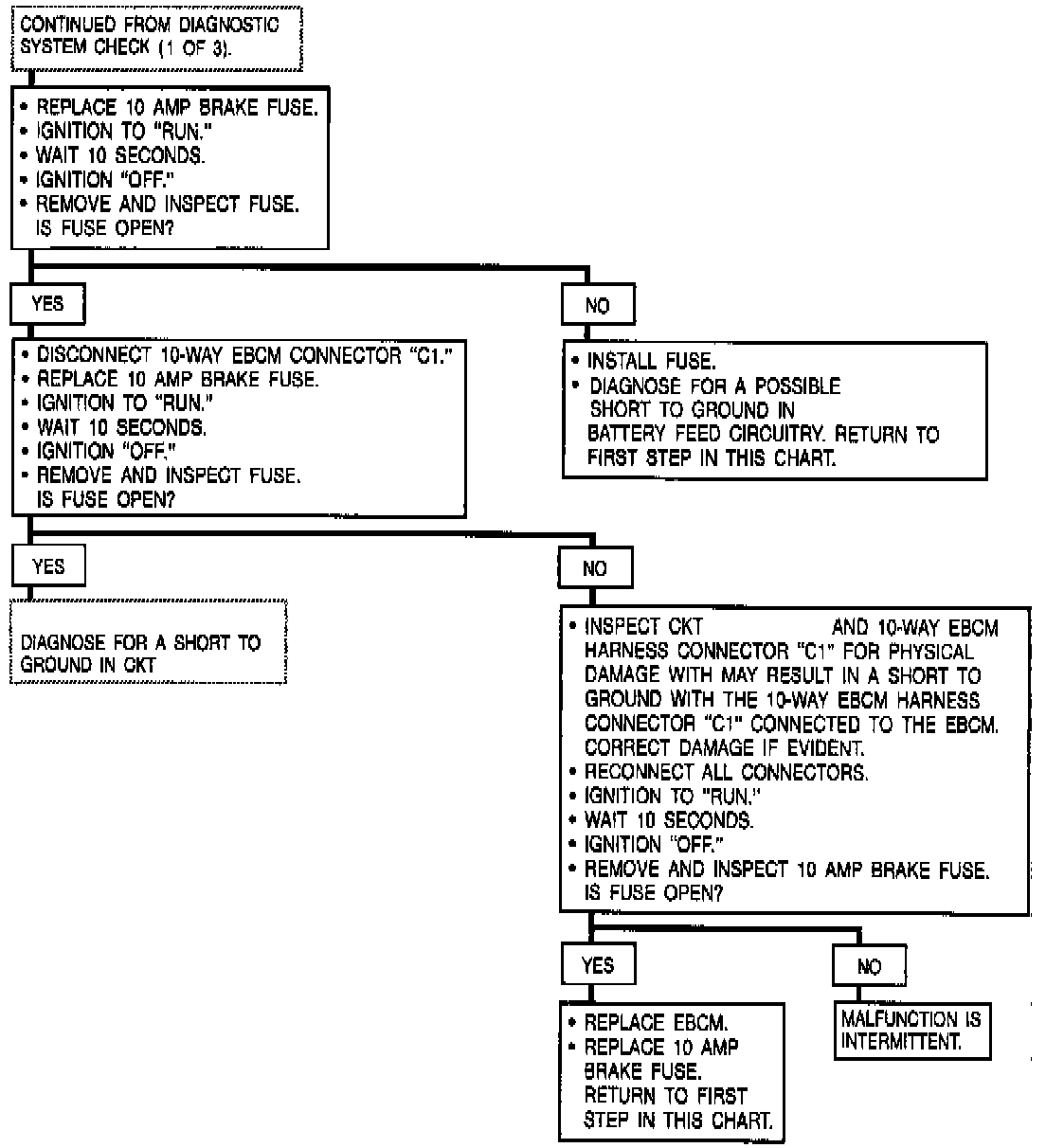

Fig. 192 Diagnostic System Check (part 2 Of 3):

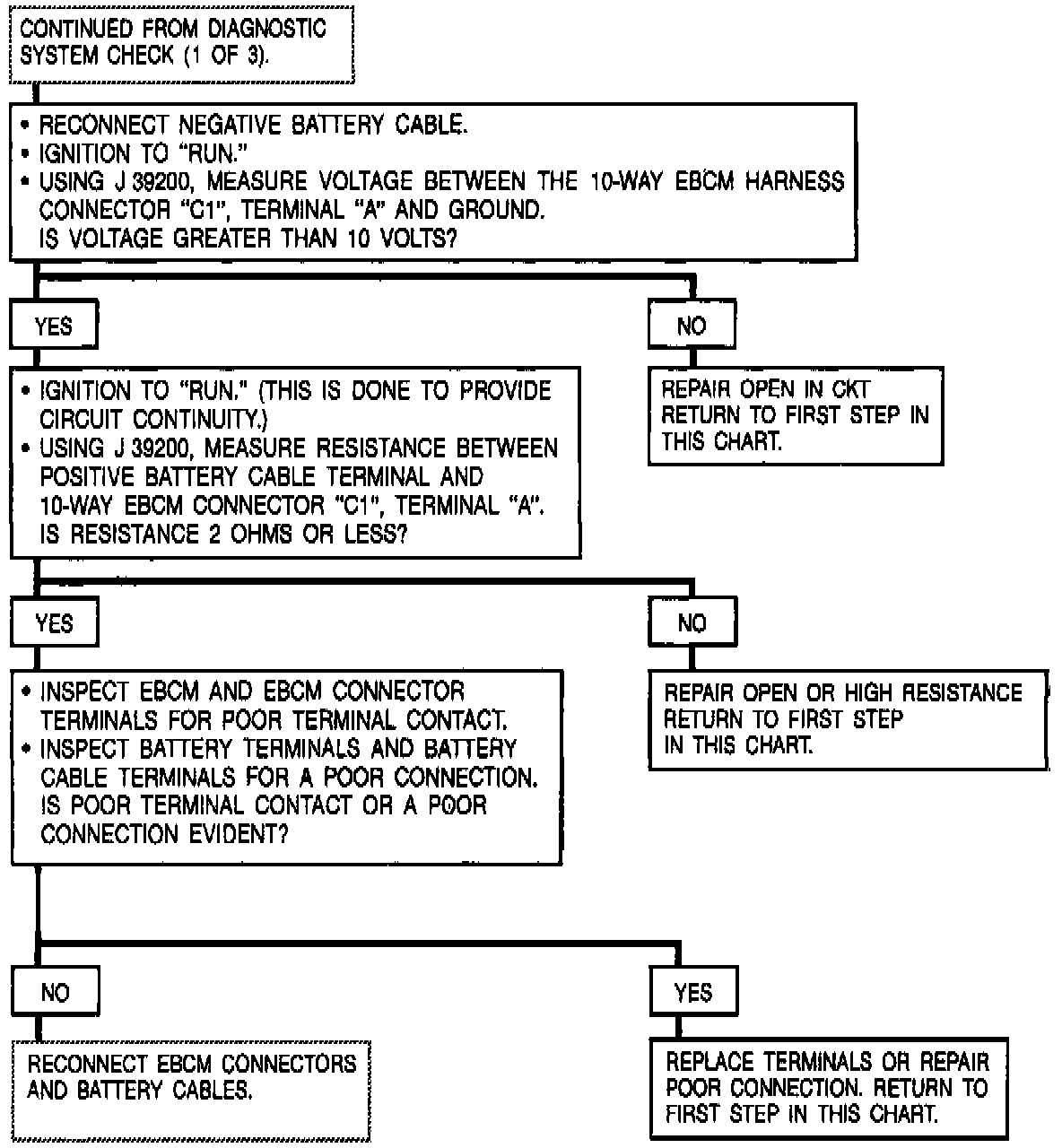

Fig. 192 Diagnostic System Check (part 3 Of 3):
