Dome Lamp: Diagrams

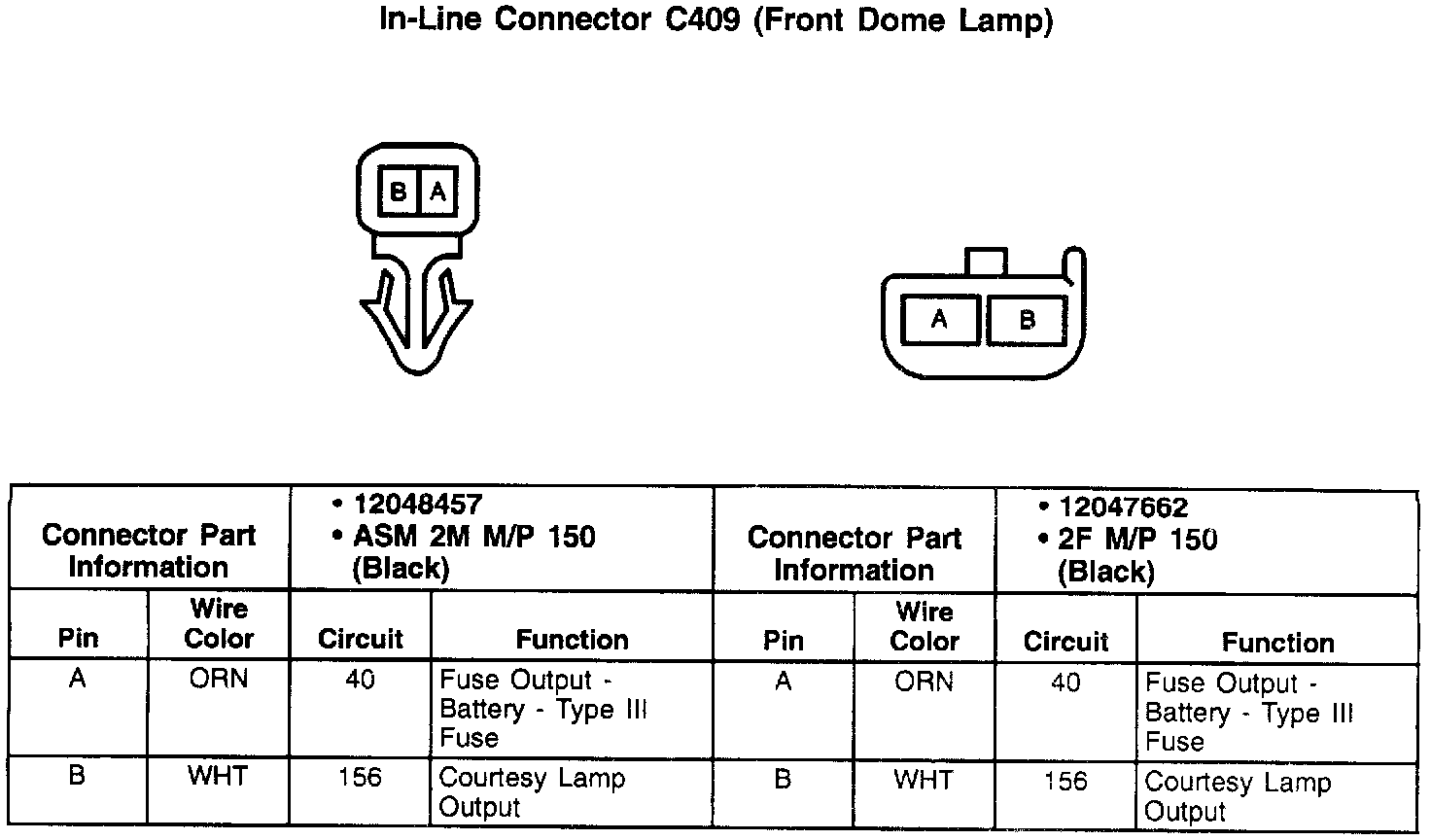

In-Line Connector C409 (Front Dome Lamp):

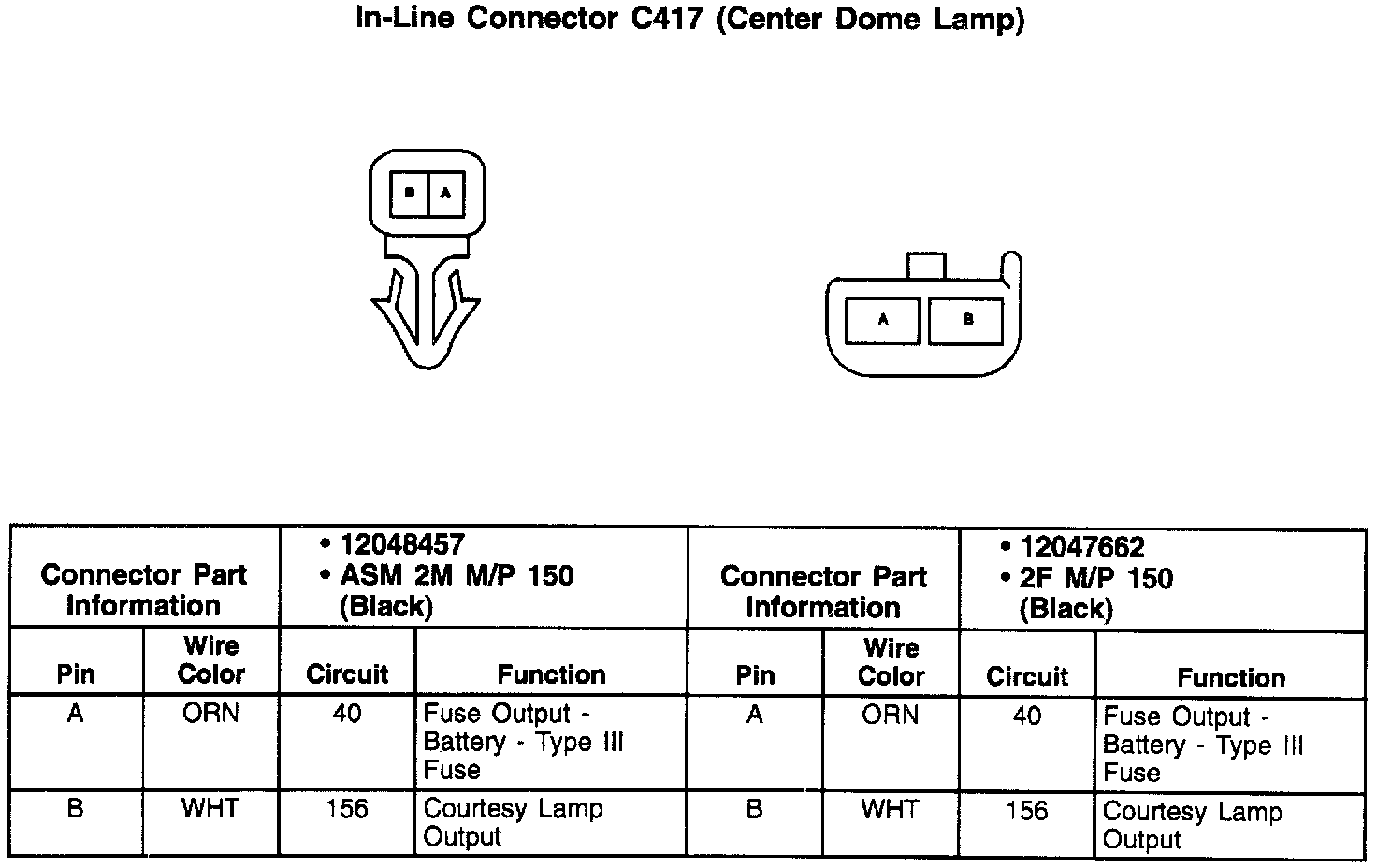

In-Line Connector C417 (Center Dome Lamp):



In-Line Connector C418 (Rear Dome Lamp):

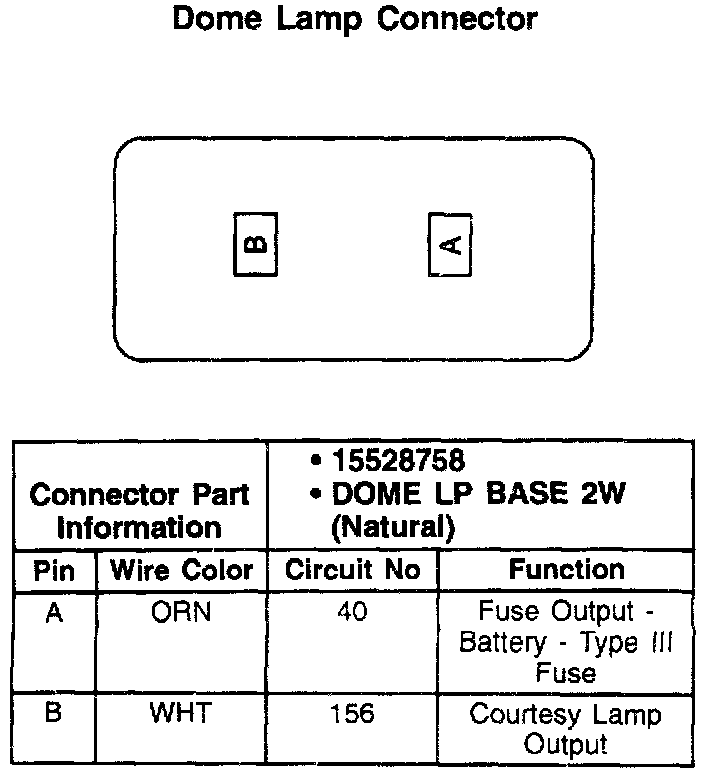

Dome Lamp Connector:
