Rear Auxiliary Mode Valve and Seal Assembly (Mode Door Motor)

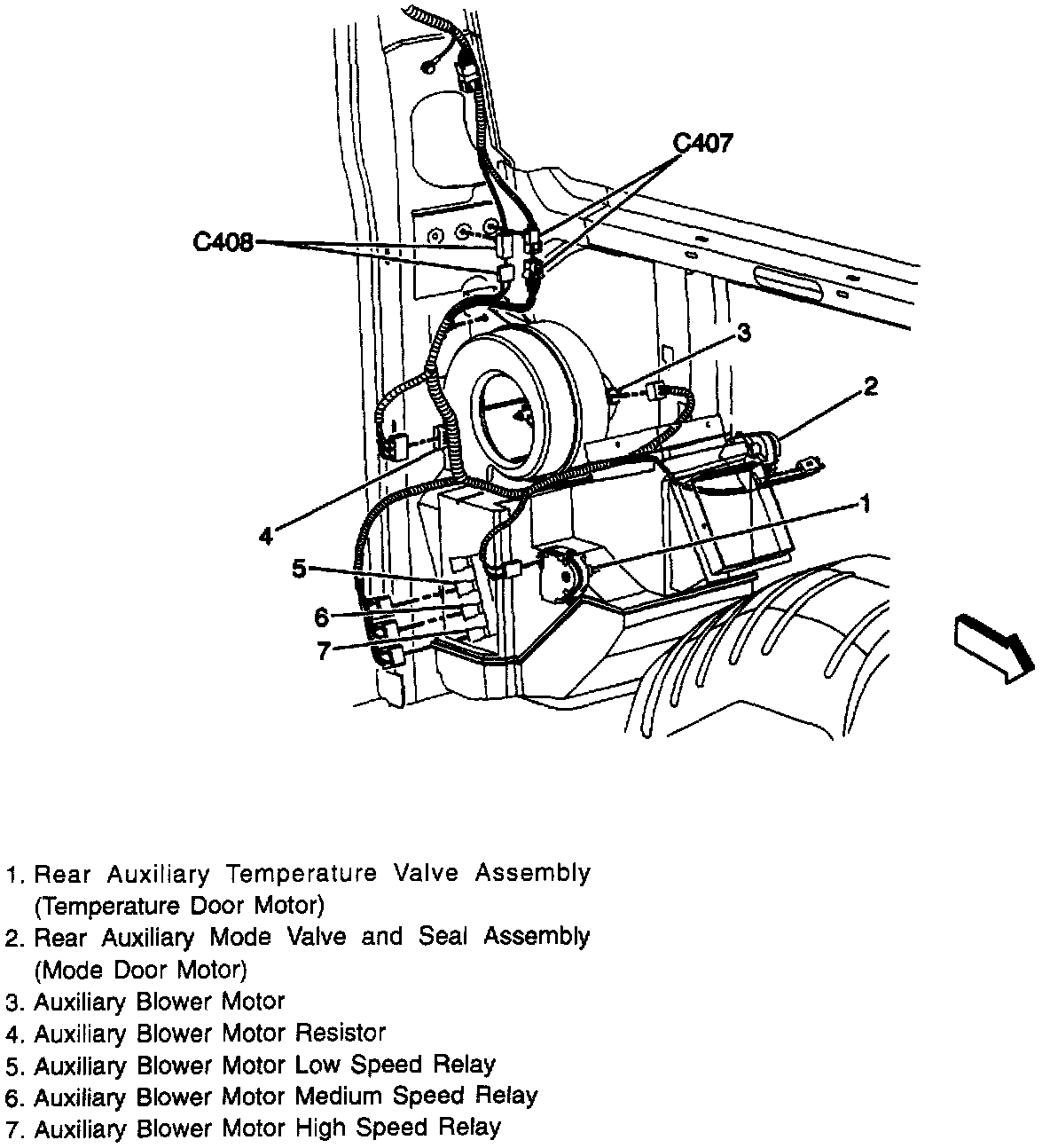

Rear Auxiliary Mode Valve and Seal Assembly (Mode Door Motor)
Auxiliary Heater And A/C Wiring:
