Home >> Chevy Truck >> 1996 >> G 20 Van V8-5.7L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Component Tests and General Diagnostics >> Without Daytime Running Lamps (DRL) >> Diagnostic Charts >> LH Composite Low Beam Headlamp Is Inoperative

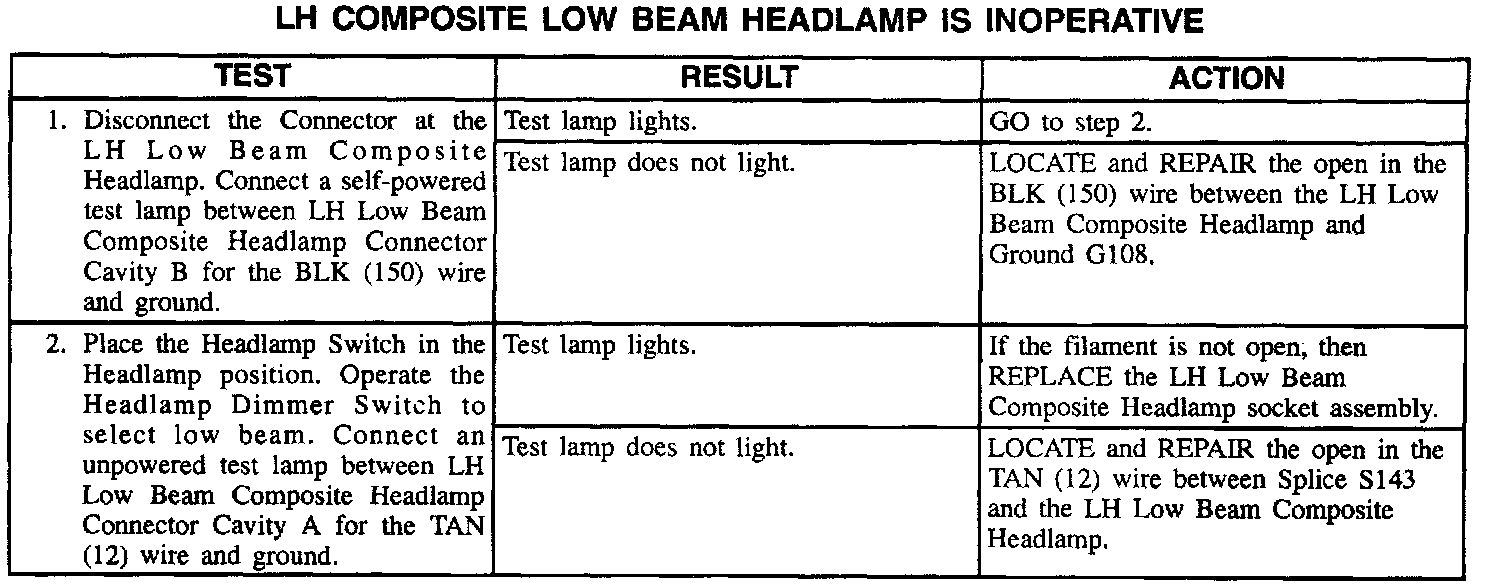

LH Composite Low Beam Headlamp Is Inoperative

LH Composite Low Beam Headlamp Is Inoperative:
