Home
>>
Chevy Truck
>>
1996
>>
G 30 Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Systems
>>
Air Bag
>>
Inflatable Restraint I/P Module, RH
Inflatable Restraint I/P Module, RH

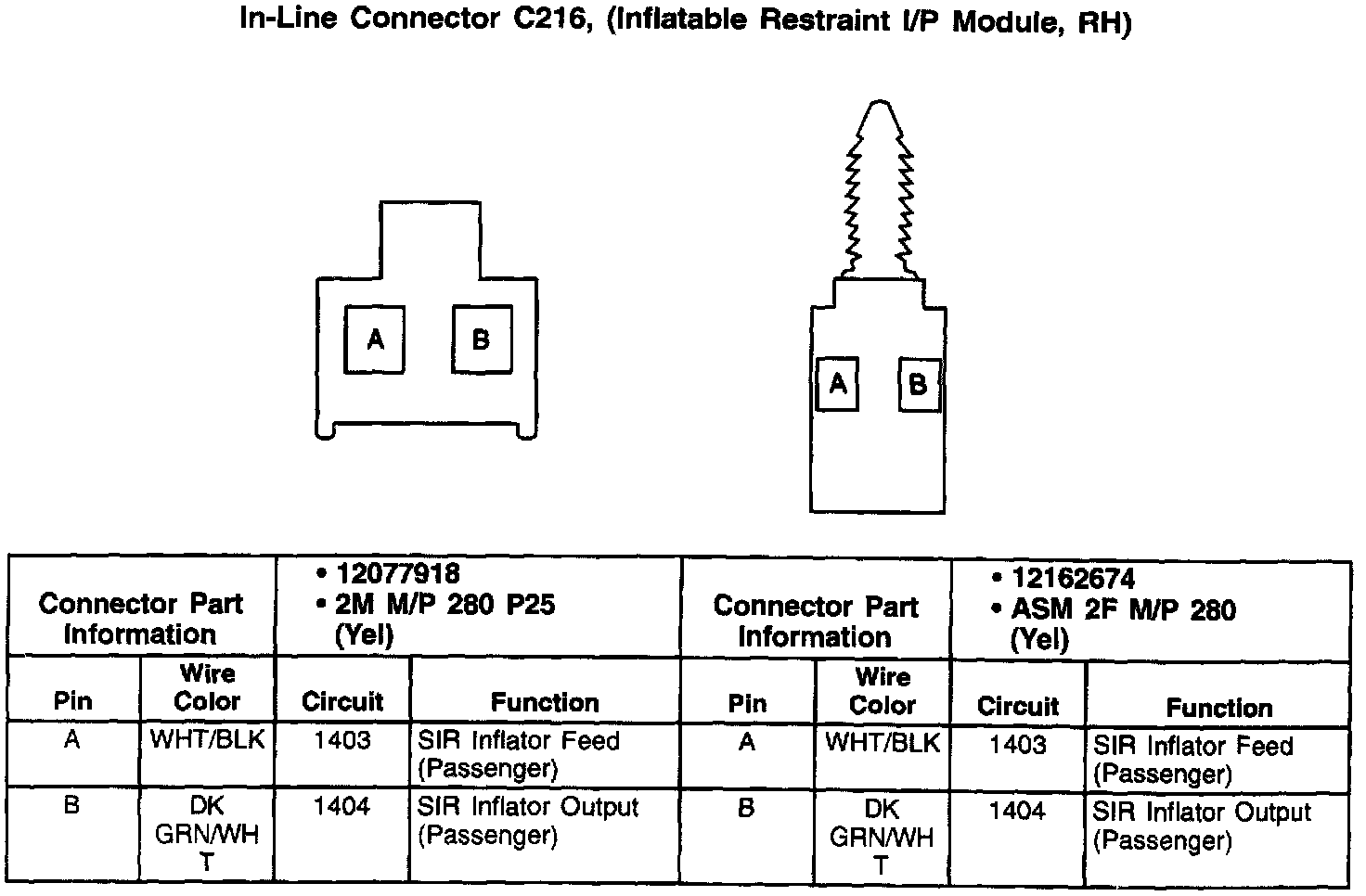

In-Line Connector C216, (Inflatable Restraint I/P Module, RH):
