Transfer Case
>>
New Venture 243 (Electronic Shift Transfer Case)
New Venture 243 (Electronic Shift Transfer Case)

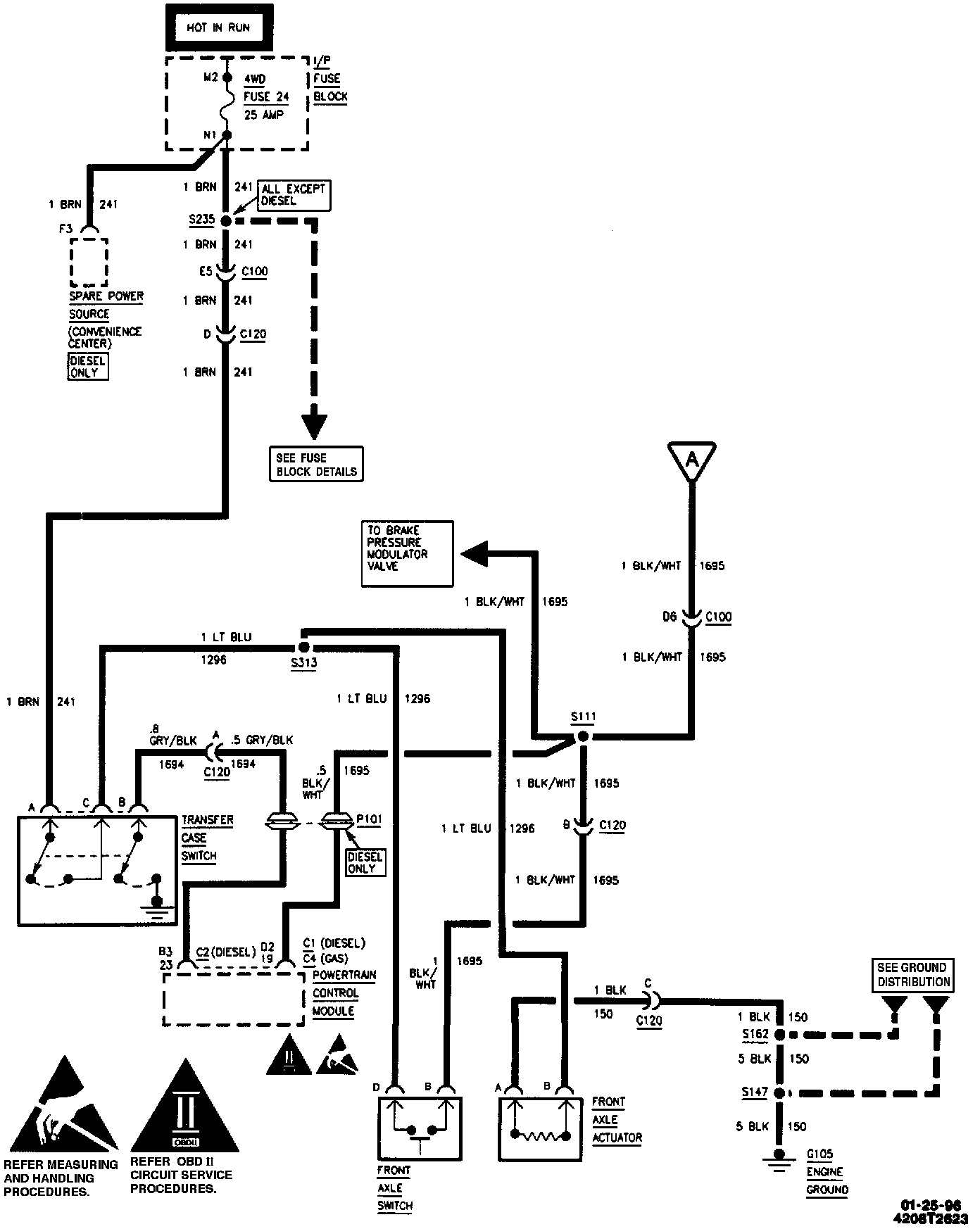

Four Wheel Drive Indicator (Part 1 Of 3):

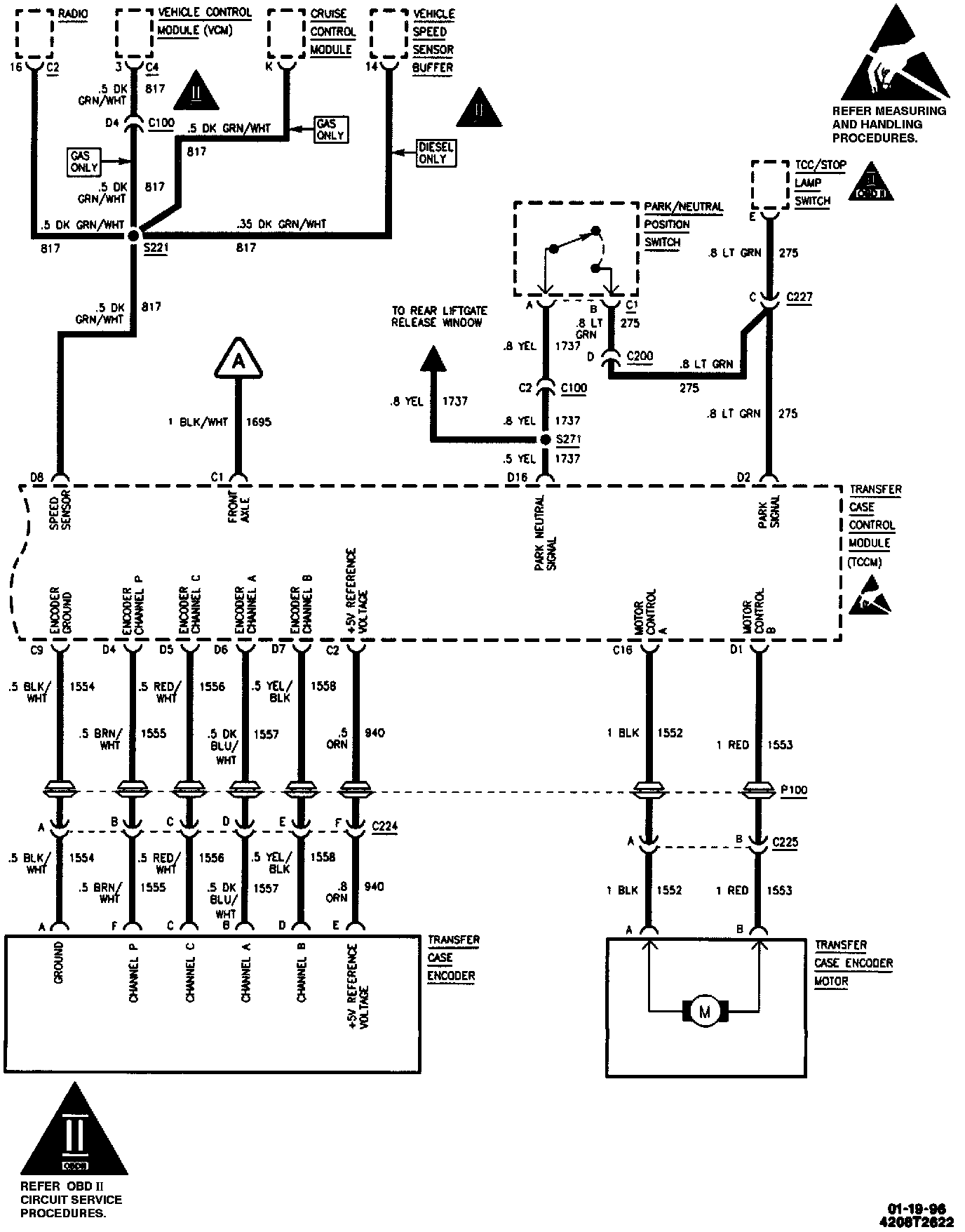

Four Wheel Drive Indicator (Part 2 Of 3):
Four Wheel Drive Indicator (Part 3 Of 3):
