5 Volt REF A, 5 Volt REF B, Fuel Temp Signal
5 Volt REF A, 5 Volt REF B, Fuel Temp Signal

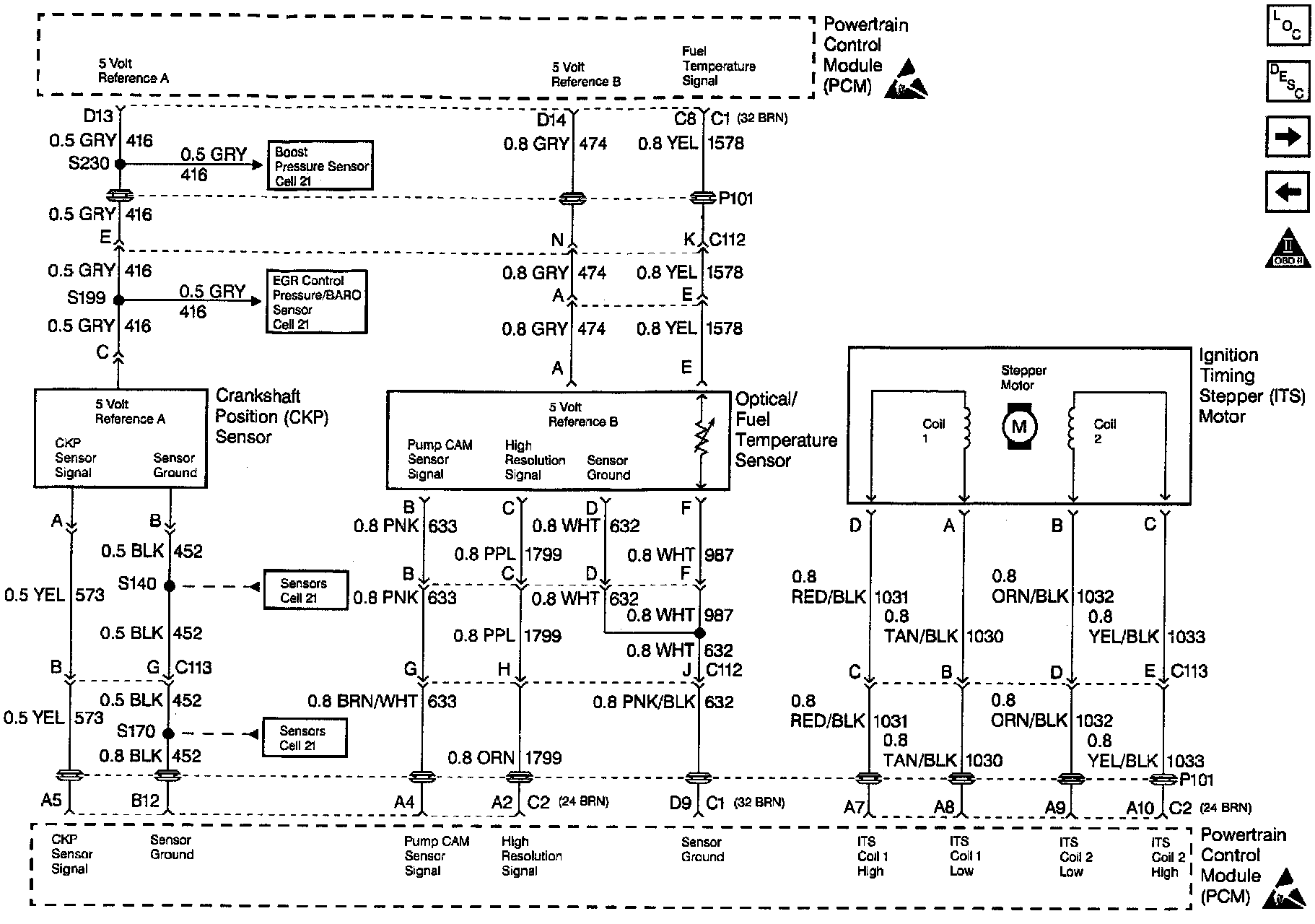

5 Volt Ref A, 5 Volt Ref B, Fuel Temp Signal:
