With Air Conditioning

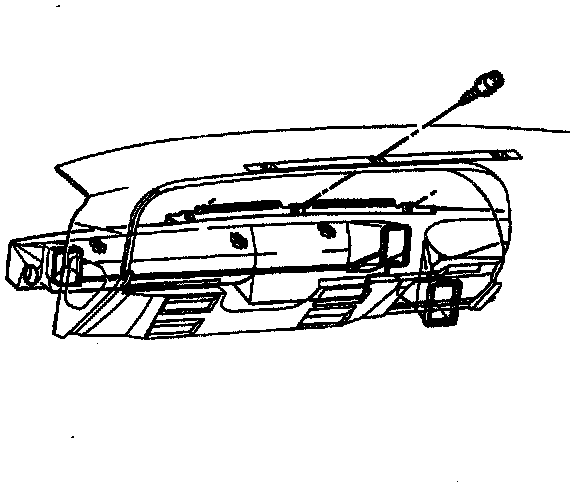

Air Distributor Duct:

Remove or Disconnect
1. Negative battery cable.
2. Instrument panel bezel.
3. Radio.
4. Roll instrument panel back.
5. Duct mounting screws.
- Squeeze the retainer in the component carrier compartment to release the duct.
6. Duct from instrument panel.

Install or Connect
1. Duct to instrument panel.
2. Duct mounting screws. Tighten screws to 1.9 Nm (17 lb in).
3. Roll instrument panel forward.
4. Radio.
5. Instrument panel bezel.
6. Negative battery cable.
