Home
>>
Chevy Truck
>>
1996
>>
Lumina APV V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Headlamp Switch
Headlamp Switch

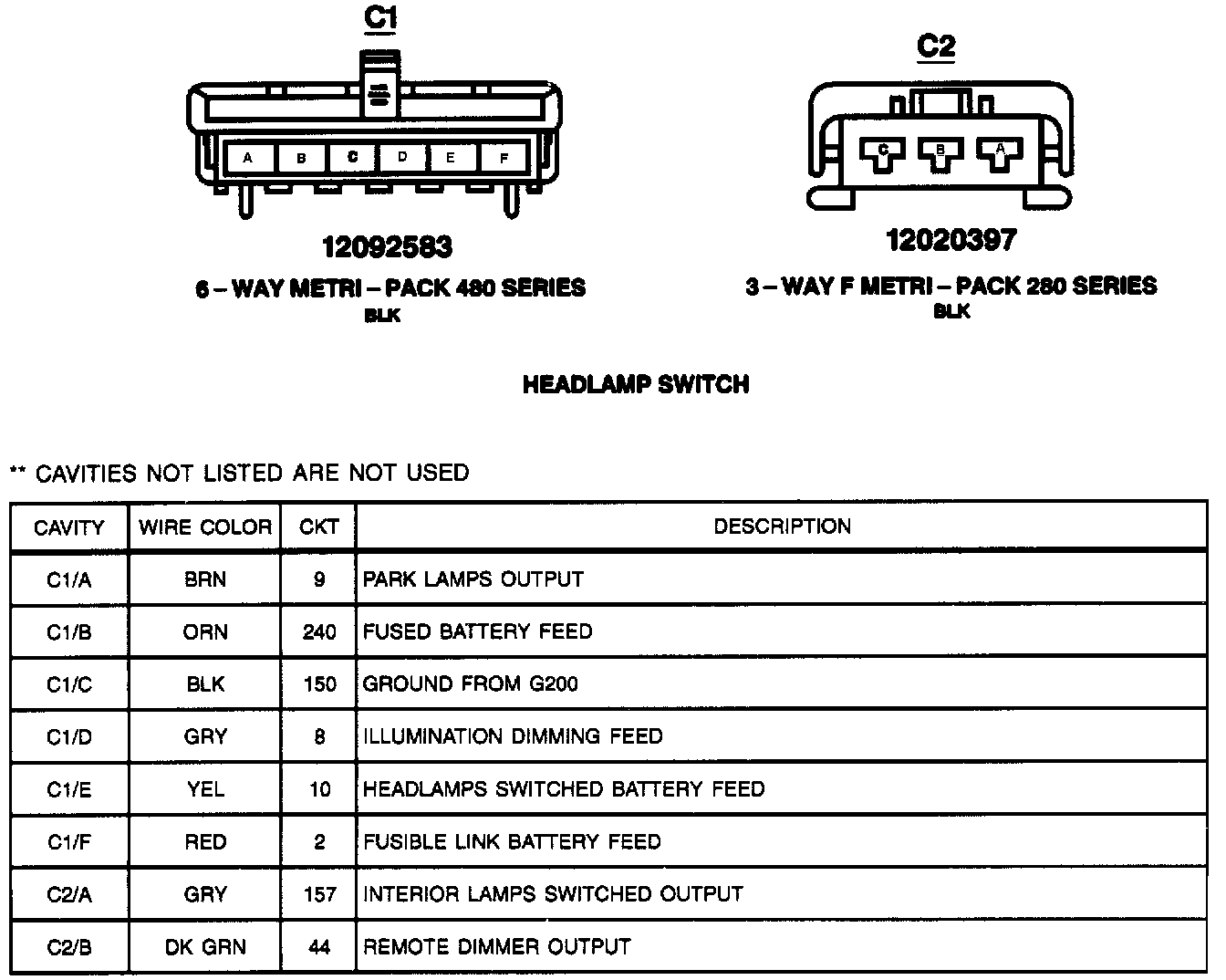

Headlamp Switch: C1 & C2:
