System Schematic

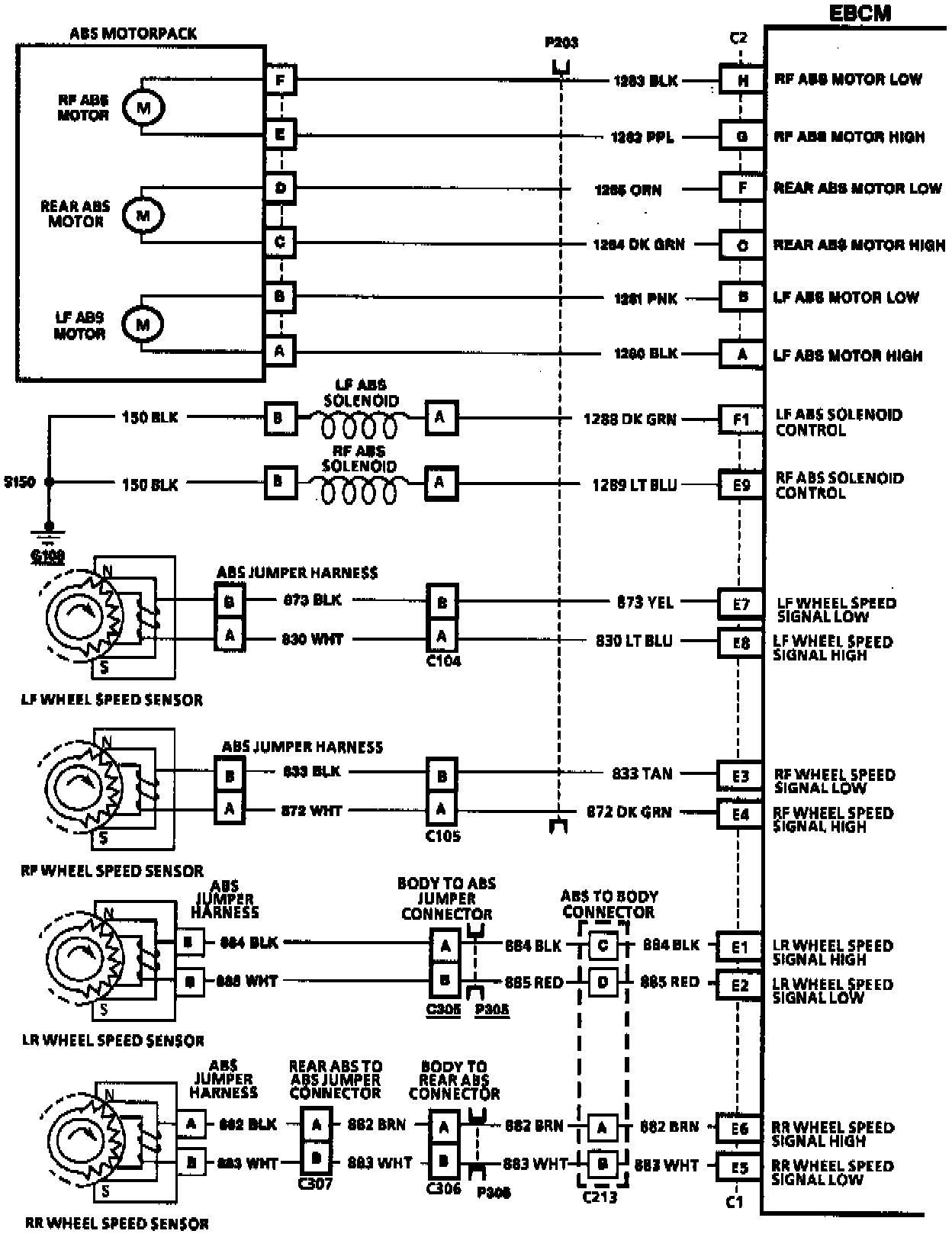

Fig. 9 ABS Wiring Circuit (Part 1 Of 2).:





ABS wiring circuit (Part 1 of 2)

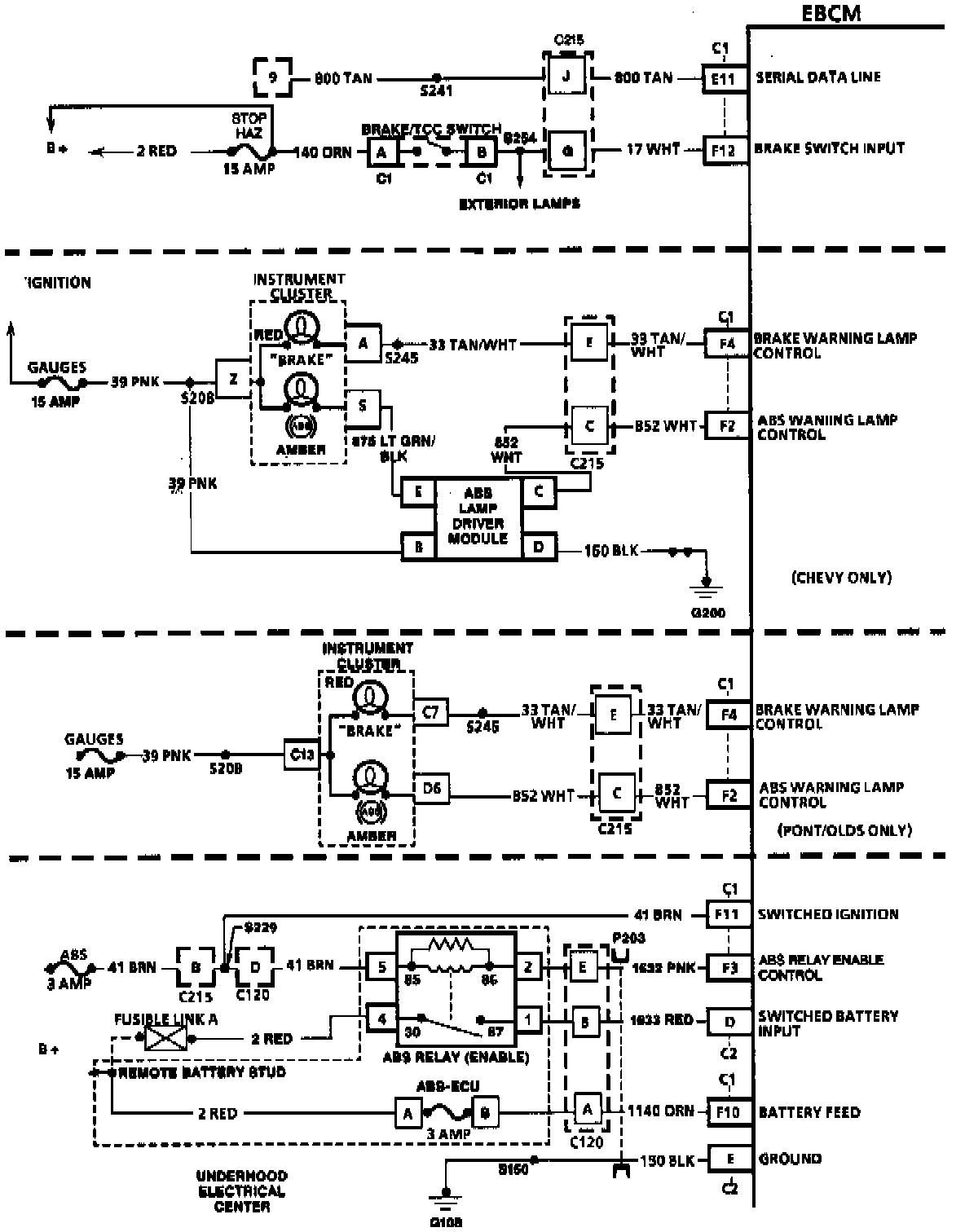

Fig. 9 ABS Wiring Circuit (Part 2 Of 2).:





ABS wiring circuit (Part 2 of 2)
