Home >> Chevy Truck >> 1996 >> Lumina APV V6-3.4L VIN E >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Connector Views >> I/P Wiring Harness to Steering Column Harness

I/P Wiring Harness to Steering Column Harness

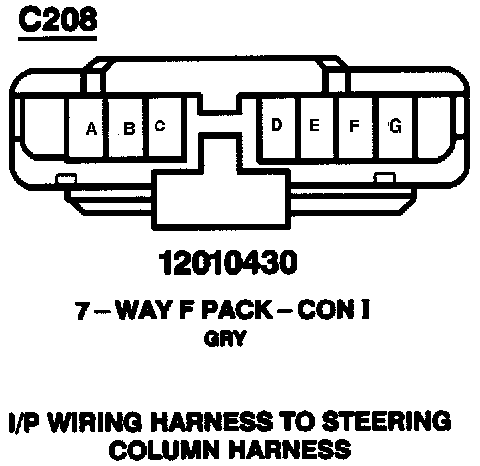

C208: I/P Wiring Harness To Steering Column Harness:



C219: I/P Wiring Harness To Steering Column Harness:
