Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1996
>>
Lumina APV V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts - Interior Lights Dimming
Symptom Diagnostic Charts - Interior Lights Dimming

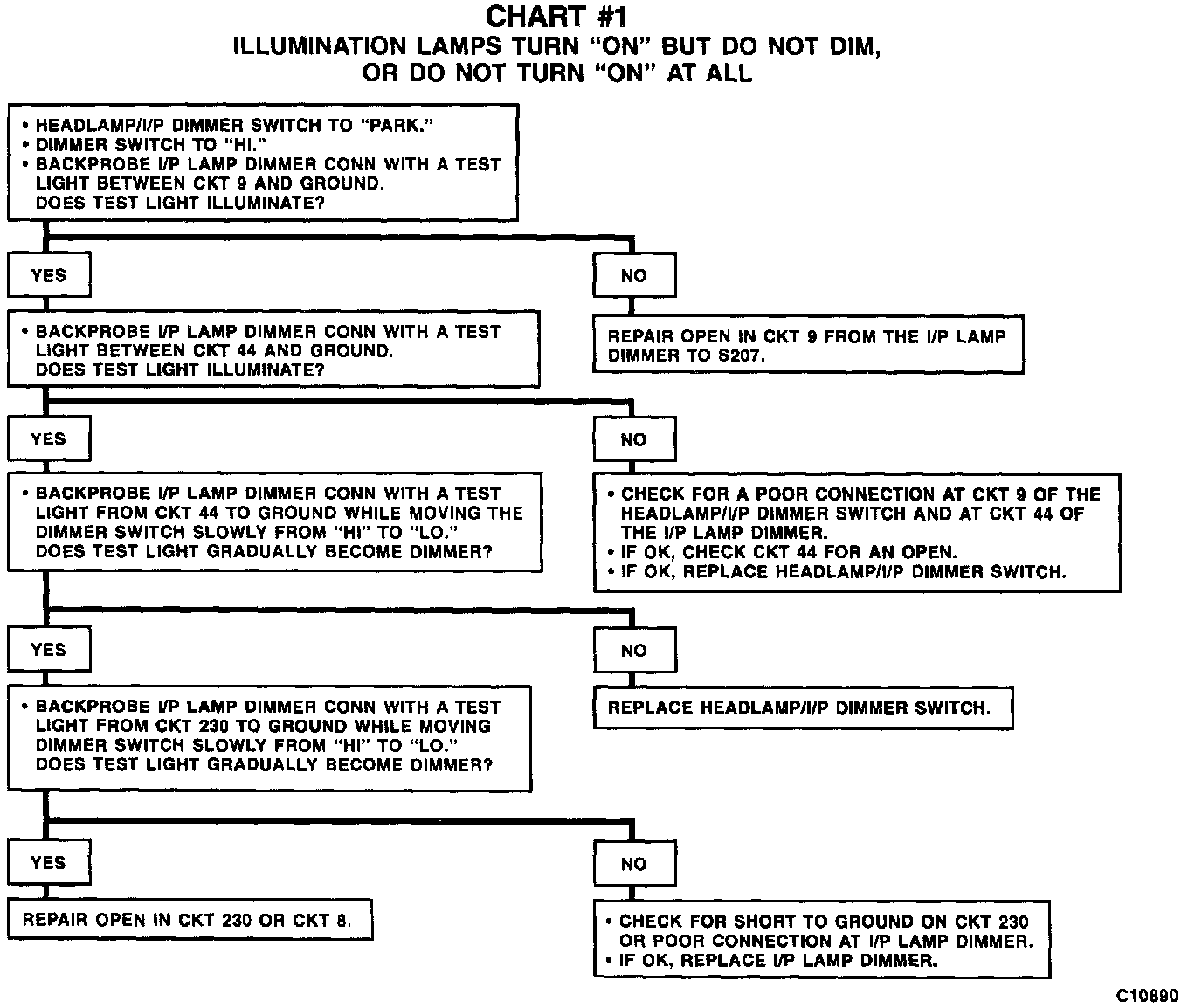

Chart #1 Illumination Lamps Turn ON But Do Not Dim/Do Not Turn ON At All:
