Home >> Chevy Truck >> 1996 >> S10/T10 P/U 2WD V6-4.3L VIN X >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Glove Box Lamp

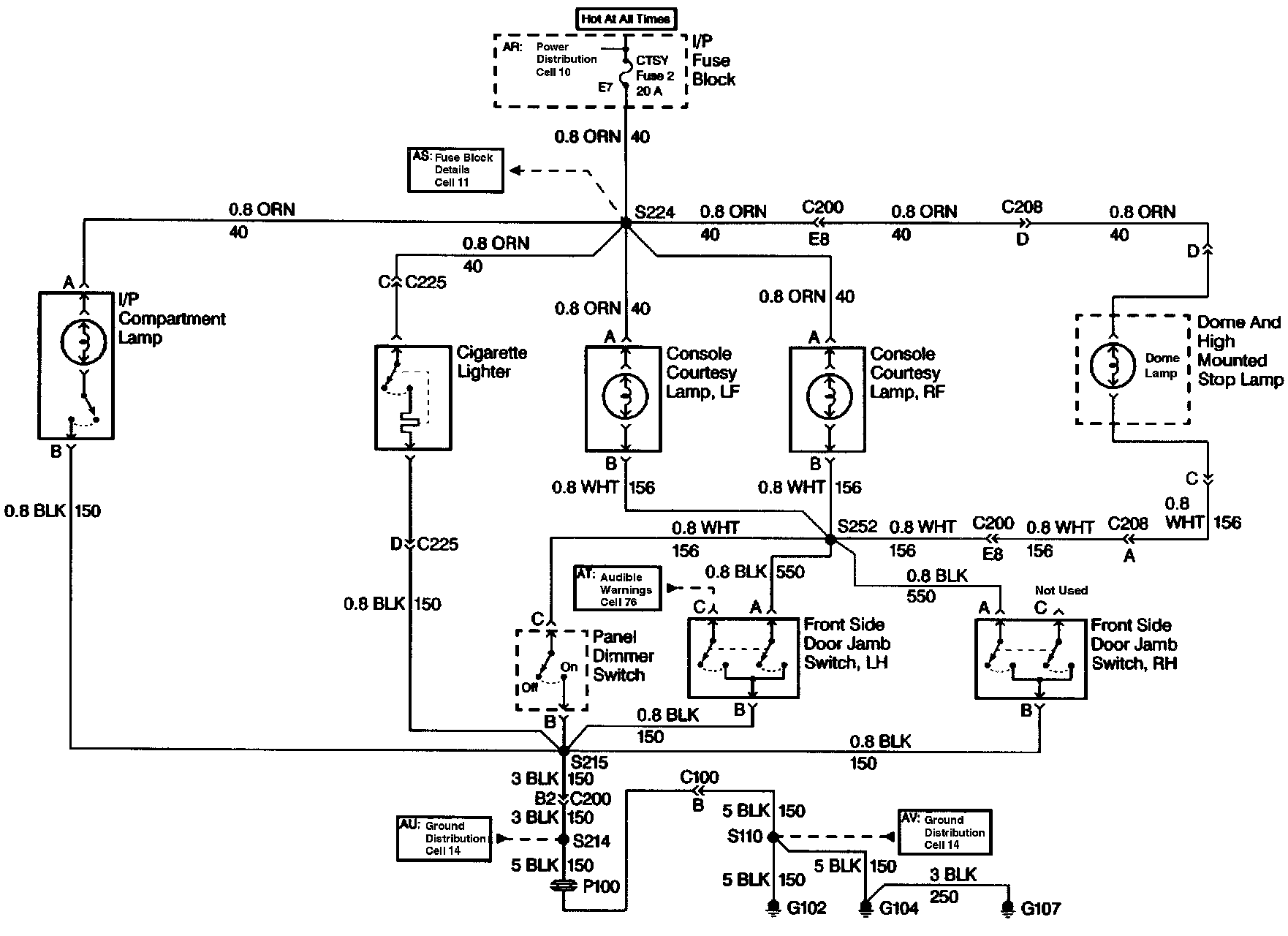

Glove Box Lamp

Interior Lights (Part 1 Of 6):
