I/P Extension Harness/I/P Harness
I/P Extension Harness/I/P Harness

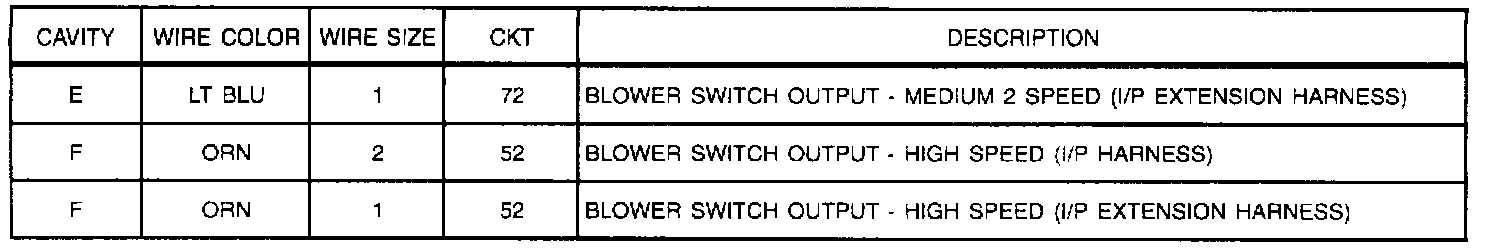

C223: I/P Extension Harness:
C223: I/P Extension Harness (Part 1 Of 2):
C223: I/P Extension Harness (Part 2 Of 2):
