Home
>>
Chevy Truck
>>
1996
>>
S10/T10 P/U 4WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Body and Frame
>>
Diagrams
>>
Front of Dash Harness/Crossbody Harness, W/RKE
Front of Dash Harness/Crossbody Harness, W/RKE

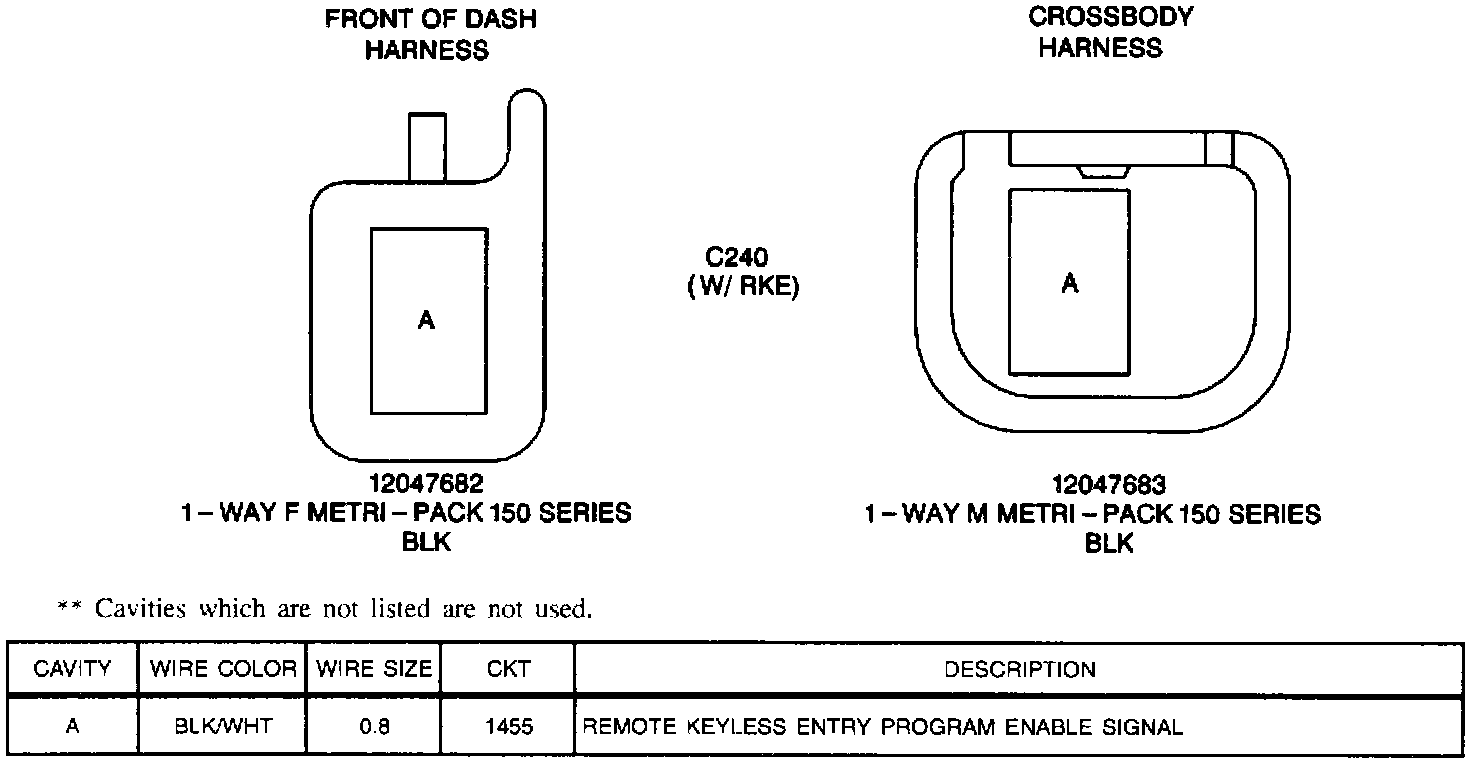

C240: Front Of Dash Harness:
