Front of Dash Harness/Steering Column Harness
>>
Pinout Description
Pinout Description

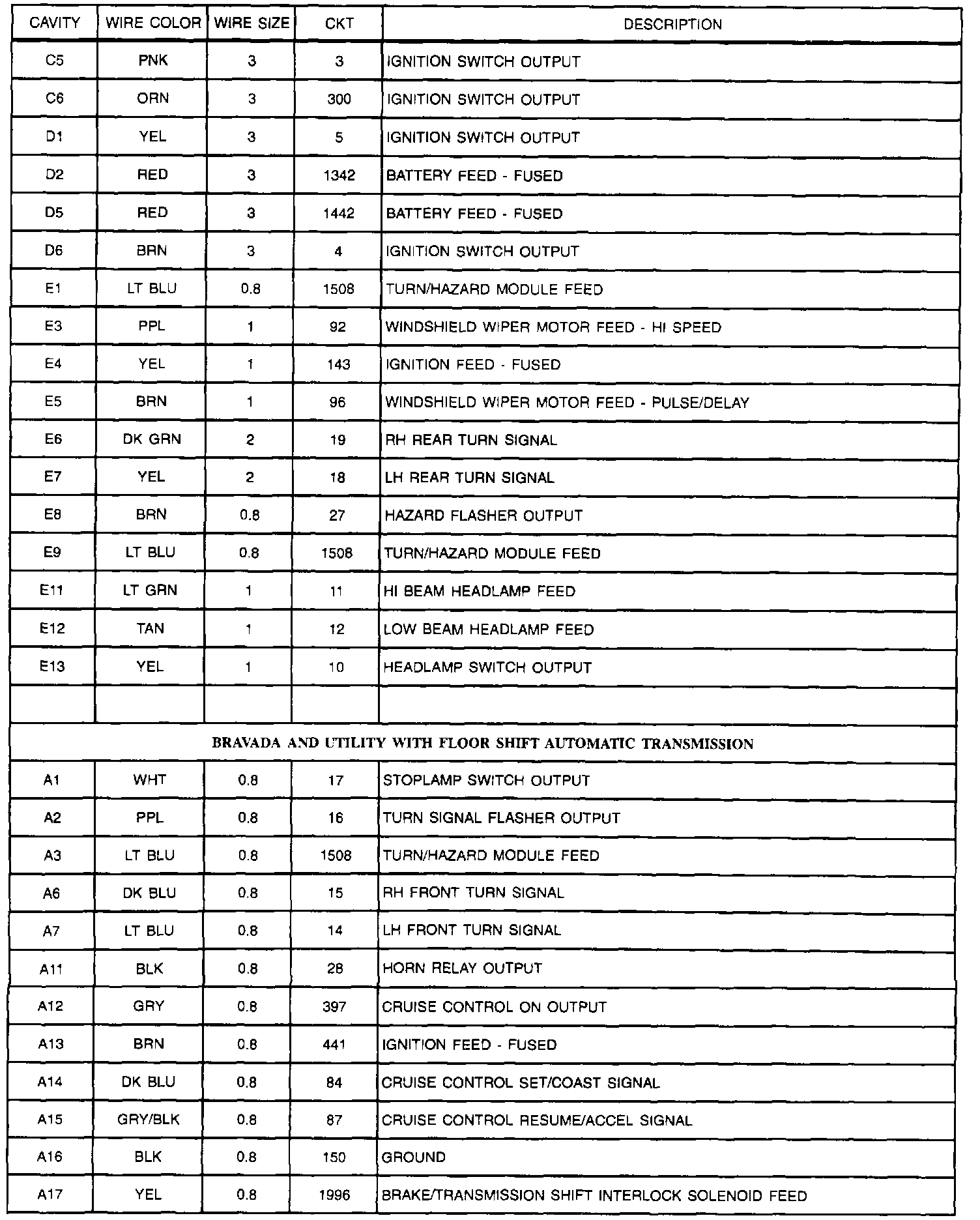

C206: Front Of Dash Harness (Part 1 Of 4):

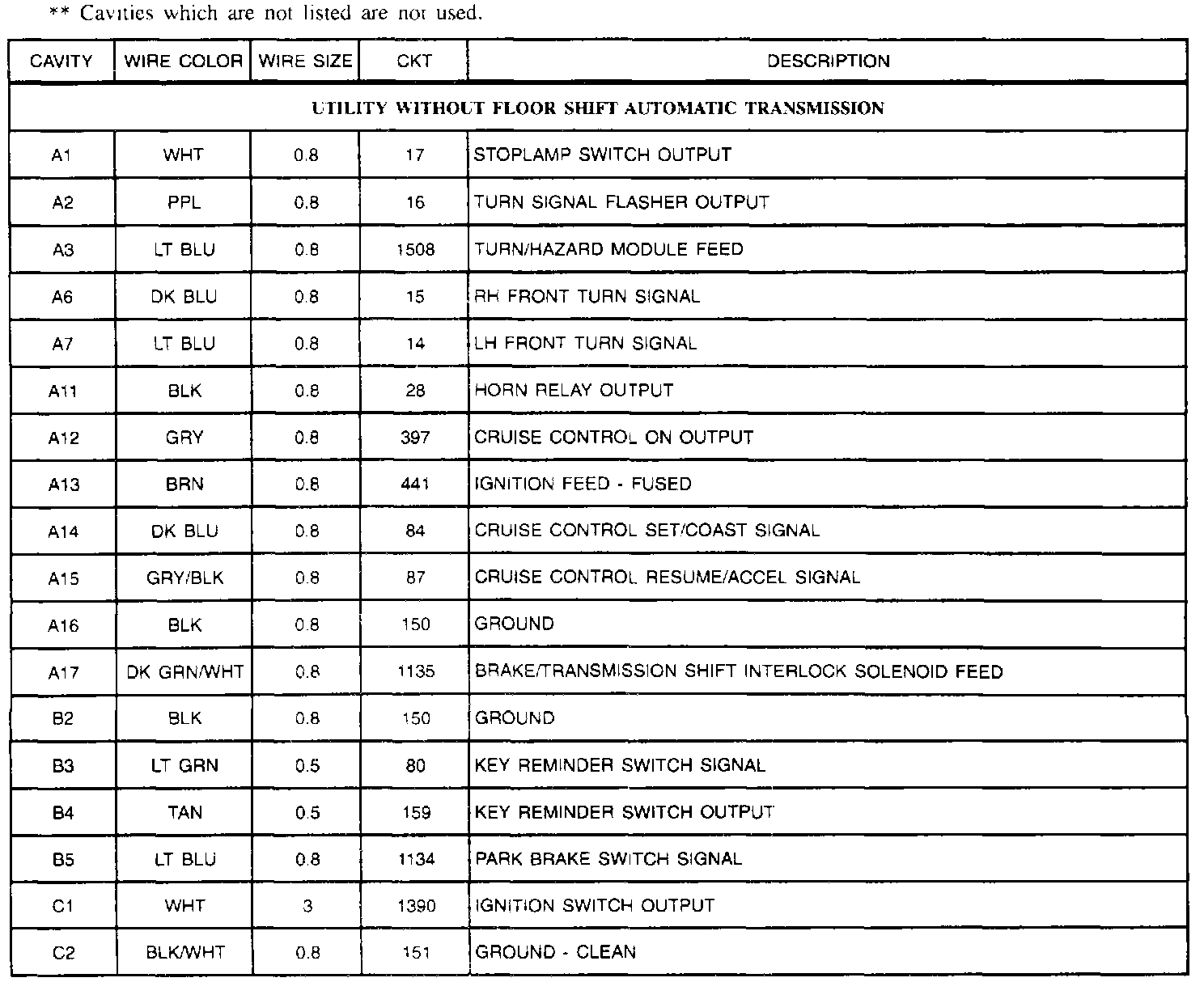

C206: Front Of Dash Harness (Part 2 Of 4):
C206: Front Of Dash Harness (Part 3 Of 4):
C206: Front Of Dash Harness (Part 4 Of 4):
