Transfer Case Adapter Removal and Installation

Transfer Case & Adapter Installation.:

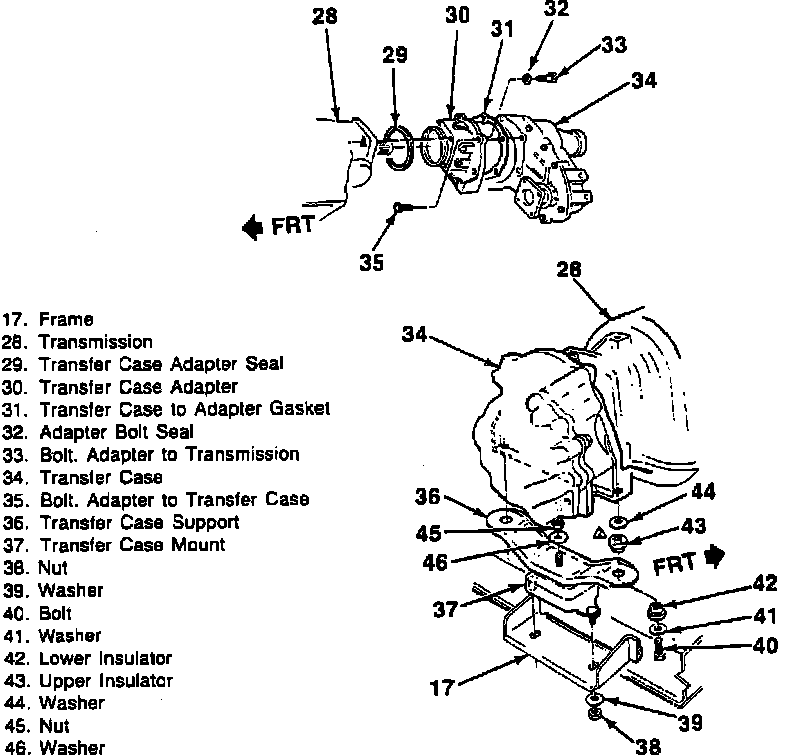

Refer to Fig. 6, for transfer case adapter replacement.
1. Remove transfer case.
2. Remove transfer case adapter to transfer case retaining bolts.
3. Raise rear of transmission, then remove transfer case adapter and seal.
4. Reverse procedure to install.
