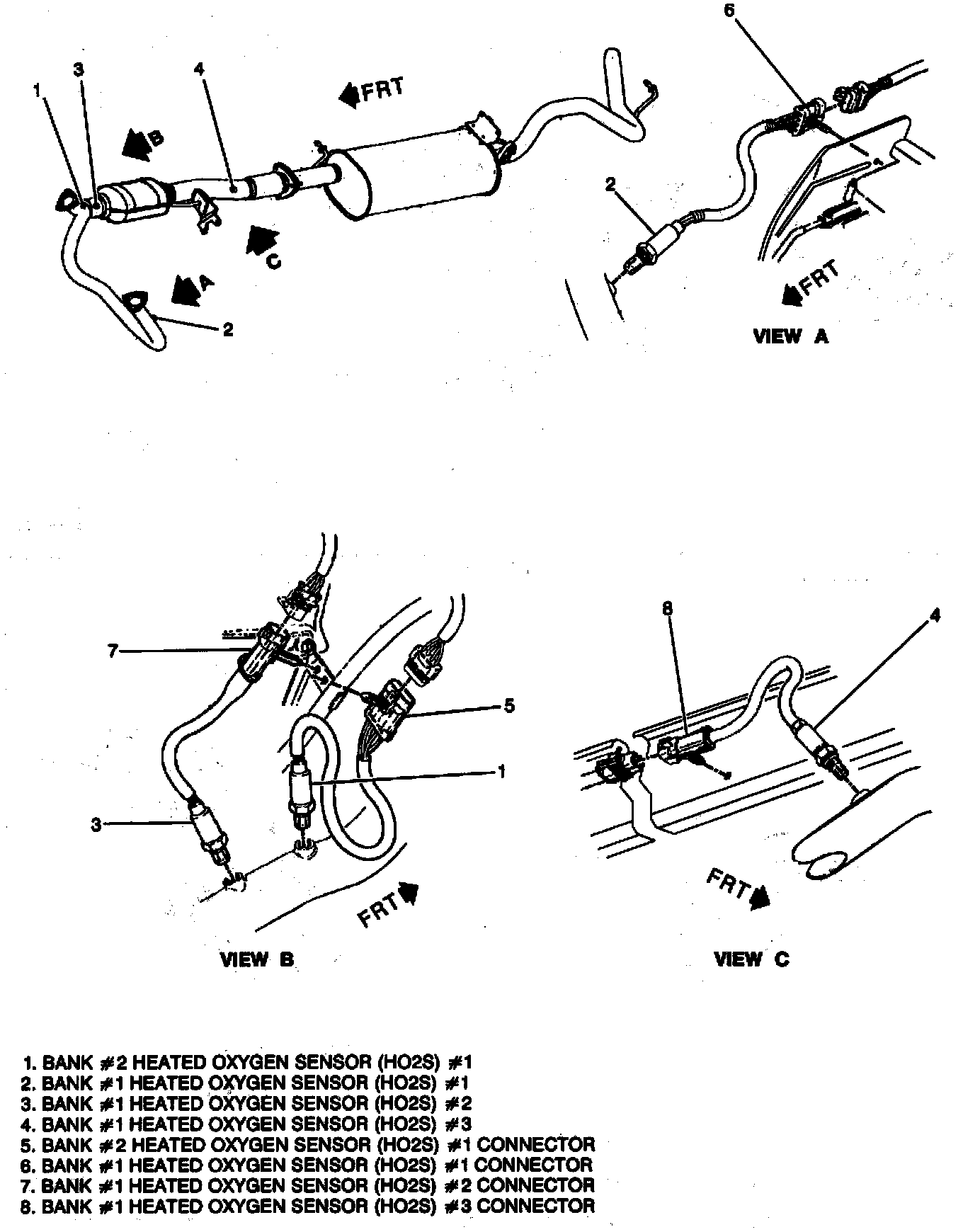

Heated Oxygen Sensor #1, #2, #3 Connector - Bank #1 and #2
Heated Oxygen Sensor #1, #2, #3 Connector - Bank #1 and #2
Oxygen Sensor Wiring:
