Brake Light Switch: Service and Repair

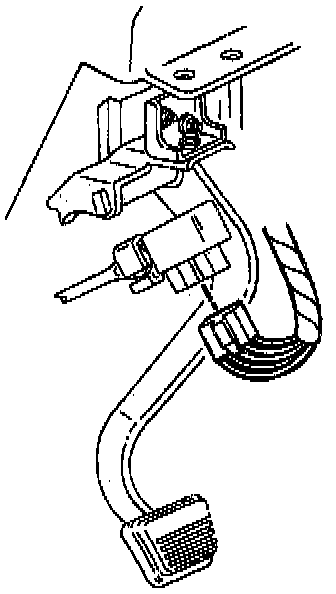

Stoplamp Switch Electrical Connector:

Remove or Disconnect
1. Negative battery cable.
2. Electrical connector.
3. Retainer from brake pedal pin.
4. Switch by unsnapping from pushrod.

Stoplamp Switch Electrical Connector:

Install or Connect
1. Switch by snapping it onto pushrod.
2. Retainer onto brake pedal pin.
3. Electrical connector.
4. Negative battery cable.
