Wiper Washer Switch Test

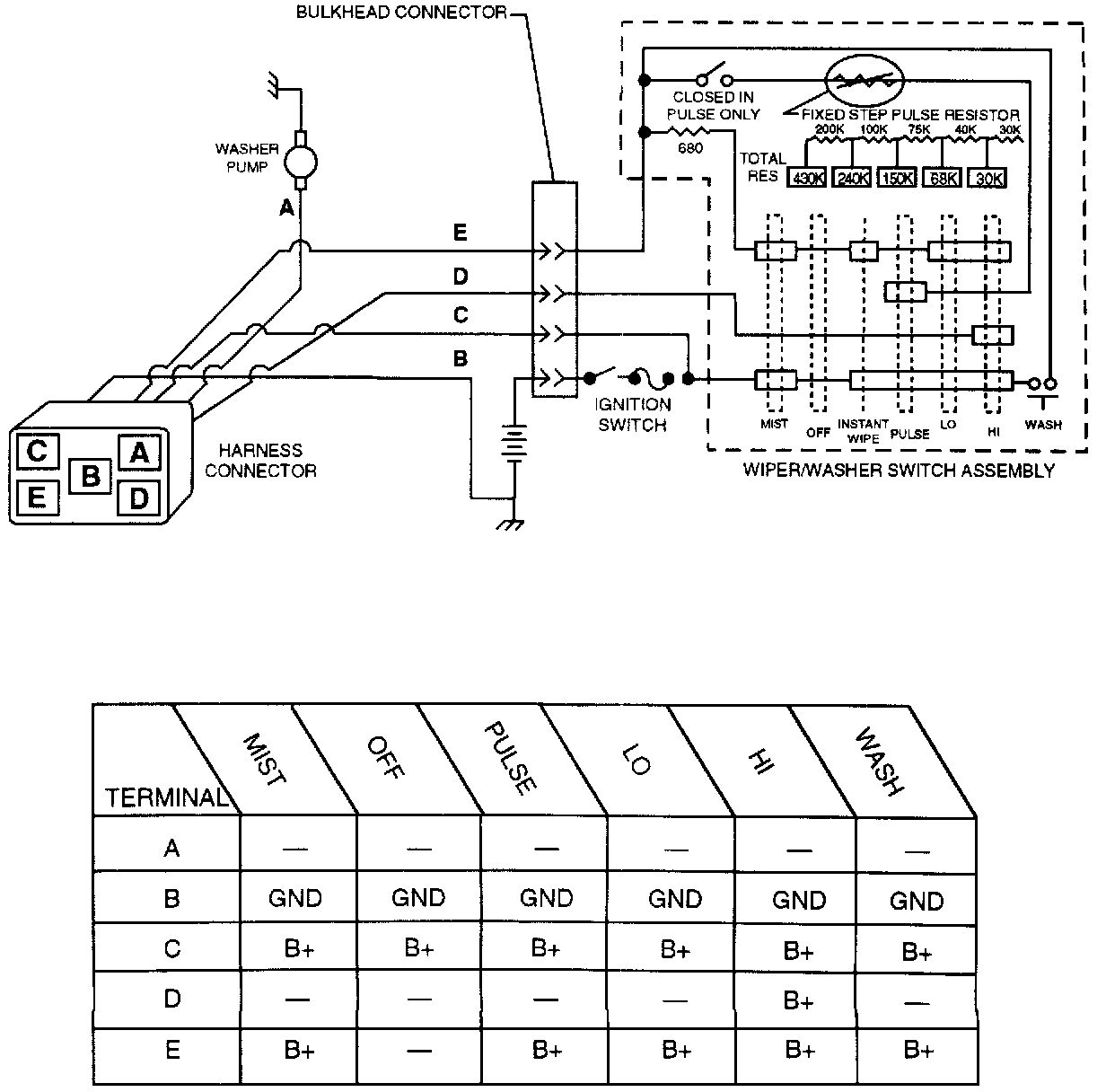

Wiring Diagram:





Disconnect harness connector from wiper motor. Perform the switch tests using a digital voltmeter with ignition switch on.
